JH21-200
WORLD

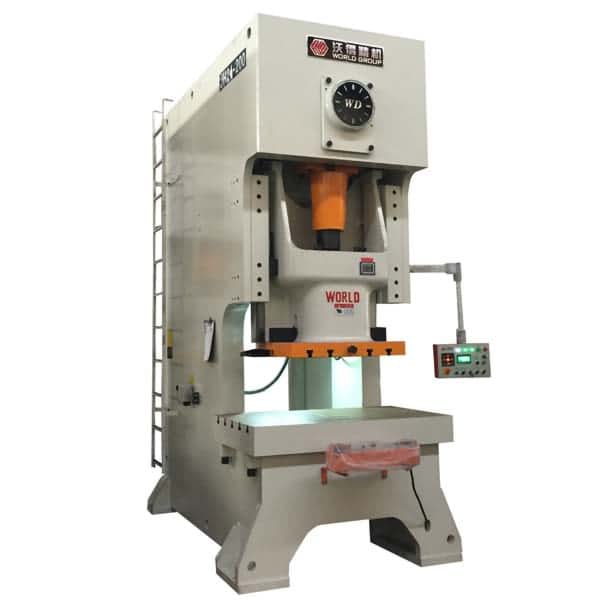

JH21-200 is a 200ton single point press machine. It is widely used for washing machine stamping parts production. High precision, safety operation, easy maintenance, strong frame. Press machine bolster size and slide area could be produced according to buyer's request. Press machine PLC provides auxiliary outputs for automatic press line accessories. This press machine could be shipped assembled and easy for installation at buyer's factory.
-Panasonic brand PLC and Kinco HMI
-Pneumatic clutch and brake, WORLD patent design
-Hydraulic overload protection system
-Slide adjust flat motor
-Automatic central control grease lubricant system
-Both two-hand-button control and foot pedal control
-Anti-vibraton mounting pads
-frequency inverter for adjustable stroke speeds
-safety light barriers
-piston type pneumatic cushion under the bolster
-metal strip uncoiling machine and feeding machine
| ITEM | CODE | UNIT | JH21-200 | |
| Nominal Capacity | Pe | KN | 2000 | |
| Tonnage Point Distance | mm | 6 | ||
| Slide Stroke Length | S | mm | 220 | |
| Slide Strokes | Fixed | spm | 45 | |
| Variable (optional) | spm | 25-45 | ||
| Max. Shut Height | H2 | mm | 450 | |
| Shut Height Adjustment | t | mm | 110 | |
| Throat Depth | C1 | mm | 430 | |
| Distance Between Columns | d1 | mm | 910 | |
| Slide Bottom Size | F-B | b | mm | 650 |
| L-R | a | mm | 880 | |
| Shank Hole Size | Diameter | d | mm | 70 |
| Depth | I | mm | 100 | |
| Table Size | F-B | D | mm | 840 |
| L-R | C | mm | 1390 | |
| Thickness | H3 | mm | 180 | |
| Table Hole Diameter | ¢ | mm | 240 | |
| Overall Dimensions | F-B | A | mm | 2600 |
| L-R | B | mm | 1540 | |
| Height | H | mm | 3800 | |
| Motor Power | KW | 18.5 | ||
| Weight (approximate) | kg | 19200 | ||
