| Quantity: | |
|---|---|

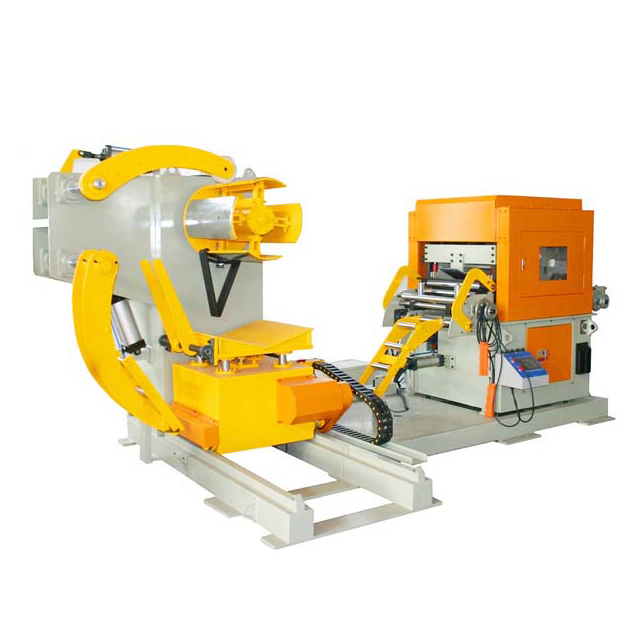

TNCF
| Item/Model | TNCF2-300 | TNCF2-400 | TNCF2-500 | TNCF2-600 | TNCF2-700 | TNCF2-800 |
| Width of Material(mm) | 75-300 | 75-400 | 75-500 | 75-600 | 75-700 | 75-800 |
| Thickness of Material(mm) | 0.3-2.3 | |||||
| Max. Coil Weight(kg) | 2T | 3T | 5T | |||
| weight can be customized | ||||||
| Coil L.D.(mm) | 508 | |||||
| Max. Coil O.D.(mm) | 1200 | |||||
| Max.Speed(m/min) | 16 | |||||
| Feed Pitch Accuracy(mm) | ±0.15 | |||||
| Feed ROLL | Upper1 / Lower1 | |||||
| Straighten ROLL | Upper5 / Lower4 | |||||
| Voltage | 380VAC / 60Hz | |||||
| Air power supply | 5kg / CM² | |||||
| Uncoiler Expansion | Hydraulic | |||||
| Servo Motor(kw) | AC1.8 | AC2.9 | ||||
| Uncoiler Motor(kw) | 1.5 KW | 2.2 KW | ||||
| Coil Car | optional | |||||
| Pass line | ±100 MM | |||||
| Item/Model | TNCF3-300 | TNCF3-400 | TNCF3-500 | TNCF3-600 | TNCF3-700 | TNCF3-800 | TNCF3-1000 |
| Width of Material(mm) | 75-300 | 75-400 | 75-500 | 75-600 | 75-700 | 75-800 | 75-1000 |
| Thickness of Material(mm) | 0.4 - 3.2 | ||||||
| Max.coil Weight(kg) | 2T | 3T | 5T | ||||
| Coil L.D.(mm) | 508 | ||||||
| Max.Coil O.D.(mm) | 1200 | ||||||
| Max.Speed(m/min) | 16 | ||||||
| Feed Pitch Accuracy(mm) | ±0.15 | ||||||
| Feed ROLL | Upper1 / Lower1 | ||||||
| Straighten ROLL | Upper5 / Lower4 | Upper4 / Lower3 | |||||
| Voltage | 380VAC / 60Hz | ||||||
| Air power supply | 5kg / CM² | ||||||
| Uncoiler Expansion | Hydraulic | ||||||
| Servo Motor(kw) | AC1.8 | AC2.9 | AC4.4 | ||||
| Uncoiler Motor(kw) | 1.5 KW | 2.2 KW | |||||
| Coil Car | optional | ||||||
| Pass line | ±100 MM | ||||||
| Item/Model | TNCF4-300 | TNCF4-400 | TNCF4-500 | TNCF4-600 | TNCF4-700 | TNCF4-800 | TNCF4-1000 | TNCF4-1300 |
| Width of Material(mm) | 75-300 | 75-400 | 75-500 | 75-600 | 75-700 | 75-800 | 75-1000 | 75-1300 |
| Thickness of Material(mm) | 0.5-4.5 | |||||||
| Max.coil Weight(kg) | 2T | 3T | 5T | 8T | ||||
| Coil L.D.(mm) | 508 | |||||||
| Max.Coil O.D.(mm) | 1500 | |||||||
| Max.Speed(m/min) | 16 | |||||||
| Feed Pitch Accuracy(mm) | ±0.15 | |||||||
| Feed ROLL | Upper1 / Lower1 | |||||||
| Straighten ROLL | Upper4 / Lower3 | |||||||
| Voltage | 380VAc / 60Hz | |||||||
| Air power supply | 5kg / CM² | |||||||
| Uncoiler Expansion | Hydraulic | |||||||
| Servo Motor(kw) | AC2.9 | AC4.4 | AC5.5 | |||||
| Uncoiler Motor(kw) | 1.5 KW | 2.2 KW | 3 KW | |||||
| Coil Car | 1 optional | standard | ||||||
| Pass line | ±100 MM | |||||||
| Item/Model | TNCF5-400 | TNCF5-500 | TNCF5-600 | TNCF5-700 | TNCF5-800 | TNCF5-1000 | TNCF5-1300 | TNCF5-1500 |
| Width of Material(mm) | 75-400 | 75-500 | 75-600 | 75-700 | 75-800 | 75-1000 | 75-1300 | 75-1500 |
| Thickness of Material(mm) | 0.6-6 | |||||||
| Max.coil Weight(kg) | 3T | 5T | 8T | |||||
| weight can be customized | weight can be customized | weight can be customized | ||||||
| Coil L.D.(mm) | 508 | |||||||
| Max.Coil O.D.(mm) | 1500 | |||||||
| Max.Speed(m/min) | 16 | |||||||
| Feed Pitch Accuracy(mm) | ±0.15 | |||||||
| Feed ROLL | Upper1 / Lower1 | |||||||
| Straighten ROLL | Upper4 / Lower3 | |||||||
| Voltage | 380VAc / 60Hz | |||||||
| Air power supply | 5kg / CM² | |||||||
| Uncoiler Expansion | Hydraulic | |||||||
| Servo Motor(kw) | AC2.9 | AC4.4 | AC5.5 | AC7.5 | ||||
| with servo reducer | with servo reducer | with servo reducer | with servo reducer | |||||
| Uncoiler Motor(kw) | 1.5 KW | 2.2 KW | 3 KW | |||||
| Coil Car | optional | standard | ||||||
| Item/Model | TNCF2-300 | TNCF2-400 | TNCF2-500 | TNCF2-600 | TNCF2-700 | TNCF2-800 |
| Width of Material(mm) | 75-300 | 75-400 | 75-500 | 75-600 | 75-700 | 75-800 |
| Thickness of Material(mm) | 0.3-2.3 | |||||
| Max. Coil Weight(kg) | 2T | 3T | 5T | |||
| weight can be customized | ||||||
| Coil L.D.(mm) | 508 | |||||
| Max. Coil O.D.(mm) | 1200 | |||||
| Max.Speed(m/min) | 16 | |||||
| Feed Pitch Accuracy(mm) | ±0.15 | |||||
| Feed ROLL | Upper1 / Lower1 | |||||
| Straighten ROLL | Upper5 / Lower4 | |||||
| Voltage | 380VAC / 60Hz | |||||
| Air power supply | 5kg / CM² | |||||
| Uncoiler Expansion | Hydraulic | |||||
| Servo Motor(kw) | AC1.8 | AC2.9 | ||||
| Uncoiler Motor(kw) | 1.5 KW | 2.2 KW | ||||
| Coil Car | optional | |||||
| Pass line | ±100 MM | |||||
| Item/Model | TNCF3-300 | TNCF3-400 | TNCF3-500 | TNCF3-600 | TNCF3-700 | TNCF3-800 | TNCF3-1000 |
| Width of Material(mm) | 75-300 | 75-400 | 75-500 | 75-600 | 75-700 | 75-800 | 75-1000 |
| Thickness of Material(mm) | 0.4 - 3.2 | ||||||
| Max.coil Weight(kg) | 2T | 3T | 5T | ||||
| Coil L.D.(mm) | 508 | ||||||
| Max.Coil O.D.(mm) | 1200 | ||||||
| Max.Speed(m/min) | 16 | ||||||
| Feed Pitch Accuracy(mm) | ±0.15 | ||||||
| Feed ROLL | Upper1 / Lower1 | ||||||
| Straighten ROLL | Upper5 / Lower4 | Upper4 / Lower3 | |||||
| Voltage | 380VAC / 60Hz | ||||||
| Air power supply | 5kg / CM² | ||||||
| Uncoiler Expansion | Hydraulic | ||||||
| Servo Motor(kw) | AC1.8 | AC2.9 | AC4.4 | ||||
| Uncoiler Motor(kw) | 1.5 KW | 2.2 KW | |||||
| Coil Car | optional | ||||||
| Pass line | ±100 MM | ||||||
| Item/Model | TNCF4-300 | TNCF4-400 | TNCF4-500 | TNCF4-600 | TNCF4-700 | TNCF4-800 | TNCF4-1000 | TNCF4-1300 |
| Width of Material(mm) | 75-300 | 75-400 | 75-500 | 75-600 | 75-700 | 75-800 | 75-1000 | 75-1300 |
| Thickness of Material(mm) | 0.5-4.5 | |||||||
| Max.coil Weight(kg) | 2T | 3T | 5T | 8T | ||||
| Coil L.D.(mm) | 508 | |||||||
| Max.Coil O.D.(mm) | 1500 | |||||||
| Max.Speed(m/min) | 16 | |||||||
| Feed Pitch Accuracy(mm) | ±0.15 | |||||||
| Feed ROLL | Upper1 / Lower1 | |||||||
| Straighten ROLL | Upper4 / Lower3 | |||||||
| Voltage | 380VAc / 60Hz | |||||||
| Air power supply | 5kg / CM² | |||||||
| Uncoiler Expansion | Hydraulic | |||||||
| Servo Motor(kw) | AC2.9 | AC4.4 | AC5.5 | |||||
| Uncoiler Motor(kw) | 1.5 KW | 2.2 KW | 3 KW | |||||
| Coil Car | 1 optional | standard | ||||||
| Pass line | ±100 MM | |||||||
| Item/Model | TNCF5-400 | TNCF5-500 | TNCF5-600 | TNCF5-700 | TNCF5-800 | TNCF5-1000 | TNCF5-1300 | TNCF5-1500 |
| Width of Material(mm) | 75-400 | 75-500 | 75-600 | 75-700 | 75-800 | 75-1000 | 75-1300 | 75-1500 |
| Thickness of Material(mm) | 0.6-6 | |||||||
| Max.coil Weight(kg) | 3T | 5T | 8T | |||||
| weight can be customized | weight can be customized | weight can be customized | ||||||
| Coil L.D.(mm) | 508 | |||||||
| Max.Coil O.D.(mm) | 1500 | |||||||
| Max.Speed(m/min) | 16 | |||||||
| Feed Pitch Accuracy(mm) | ±0.15 | |||||||
| Feed ROLL | Upper1 / Lower1 | |||||||
| Straighten ROLL | Upper4 / Lower3 | |||||||
| Voltage | 380VAc / 60Hz | |||||||
| Air power supply | 5kg / CM² | |||||||
| Uncoiler Expansion | Hydraulic | |||||||
| Servo Motor(kw) | AC2.9 | AC4.4 | AC5.5 | AC7.5 | ||||
| with servo reducer | with servo reducer | with servo reducer | with servo reducer | |||||
| Uncoiler Motor(kw) | 1.5 KW | 2.2 KW | 3 KW | |||||
| Coil Car | optional | standard | ||||||
