WD-F3015G
WORLD

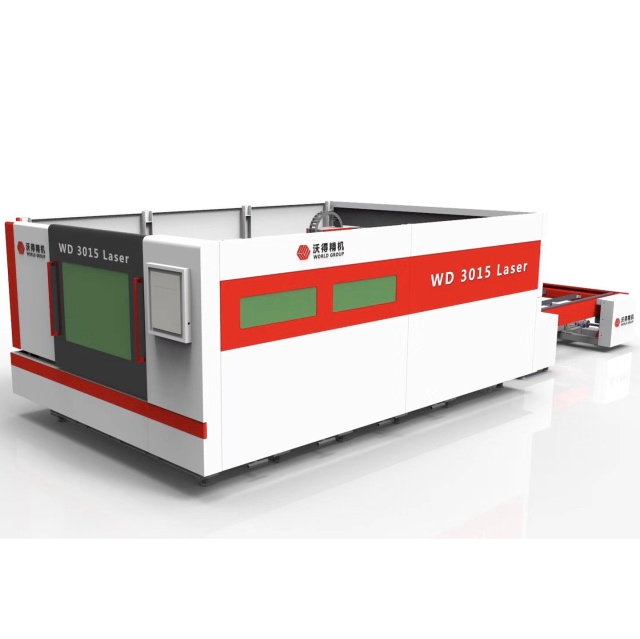

WD-F3015G fiber laser cutting machine is suitable for metal sheet cutting the sheet size maximum 3000x1500mm. This laser cutting machine adopts famous IPG brand laser generator and Beckhoff brand CNC system. High accuracy with positioning accuracy as 0.03mm and repeat positioning accuracy as 0.02mm. Beam fast speed up to 170m/min. Automatic programing software ensures the capability for different type complex parts cutting.
Main Specifications
NO. | ITEMS | DATA |
1 | Working range (L x W) | 3000x1500mm |
2 | X axis stroke | 3040mm |
3 | Y axis stroke | 1520mm |
4 | Z axis stroke | 100mm |
5 | X-Y axis maximum speed | 170m/min |
6 | X/Y axis maximum accelerated speed | 2.0G m/s2 |
7 | Positioning accuracy | +/-0.03mm |
8 | Repeat positioning accuracy | +/-0.02mm |
9 | Power | 35kw (380V50HZ3Phase) |
10 | Central radiation wavelength | 1070-1080nm |
11 | Fiber diameter | ≥50μm |
12 | Laser generator power | 3kw |
13 | Maximum loading capacity of table | 900kg |
14 | Machine gross weight | 9000kg |
15 | Dimensions (L x W x H) | 9000x4500x2100mm |
WD-F3015G fiber laser cutting machine is suitable for metal sheet cutting the sheet size maximum 3000x1500mm. This laser cutting machine adopts famous IPG brand laser generator and Beckhoff brand CNC system. High accuracy with positioning accuracy as 0.03mm and repeat positioning accuracy as 0.02mm. Beam fast speed up to 170m/min. Automatic programing software ensures the capability for different type complex parts cutting.
Main Specifications
NO. | ITEMS | DATA |
1 | Working range (L x W) | 3000x1500mm |
2 | X axis stroke | 3040mm |
3 | Y axis stroke | 1520mm |
4 | Z axis stroke | 100mm |
5 | X-Y axis maximum speed | 170m/min |
6 | X/Y axis maximum accelerated speed | 2.0G m/s2 |
7 | Positioning accuracy | +/-0.03mm |
8 | Repeat positioning accuracy | +/-0.02mm |
9 | Power | 35kw (380V50HZ3Phase) |
10 | Central radiation wavelength | 1070-1080nm |
11 | Fiber diameter | ≥50μm |
12 | Laser generator power | 3kw |
13 | Maximum loading capacity of table | 900kg |
14 | Machine gross weight | 9000kg |
15 | Dimensions (L x W x H) | 9000x4500x2100mm |
