JH21-200
WORLD

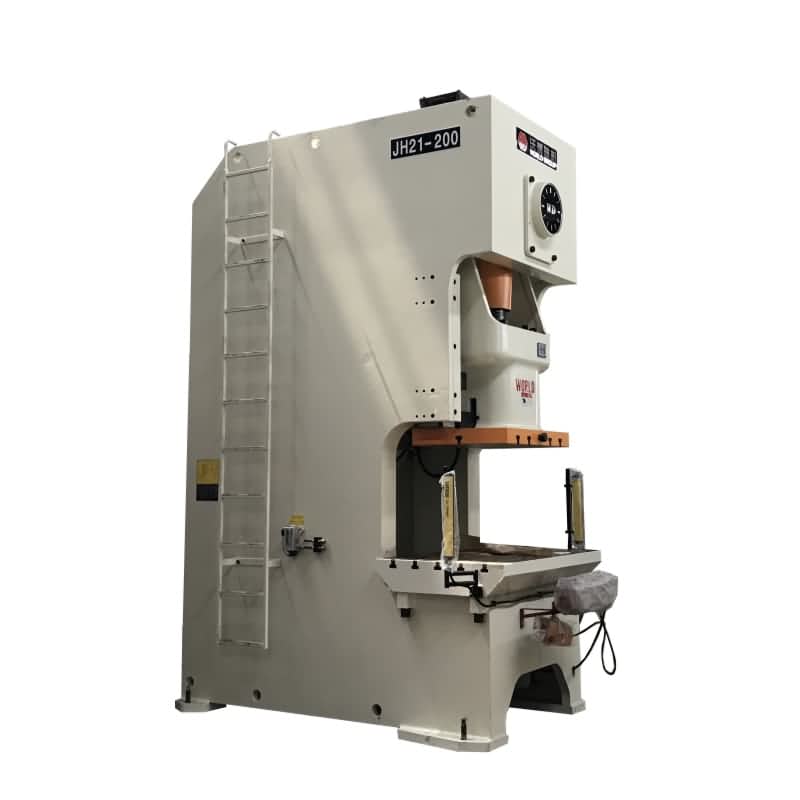

JH21-200 is a 200ton single crank press machine. It is a mechanical type press machine with pneumatic clutch. The world patent wet clutch adopts high quality friction discs and best oil seal. All discs are oil bath in the flywheel, better for lubricant and oil cooling. This design ensures lower noise, longer service life and cheaper maintenance cost. Control system includes international brand PLC, encoder and HMI.
-Panasonic brand PLC and Kinco HMI
-Pneumatic clutch and brake, WORLD patent design
-Hydraulic overload protection system
-Slide adjust flat motor
-Automatic central control grease lubricant system
-Both two-hand-button control and foot pedal control
-frequency inverter for adjustable stroke speeds
-safety light barriers
-piston type pneumatic cushion under the bolster
-metal strip uncoiling machine and feeding machine
| ITEM | CODE | UNIT | JH21-200 | |
| Nominal Capacity | Pe | KN | 2000 | |
| Tonnage Point Distance | mm | 6 | ||
| Slide Stroke Length | S | mm | 220 | |
| Slide Strokes | Fixed | spm | 45 | |
| Variable (optional) | spm | 25-45 | ||
| Max. Shut Height | H2 | mm | 450 | |
| Shut Height Adjustment | t | mm | 110 | |
| Throat Depth | C1 | mm | 430 | |
| Distance Between Columns | d1 | mm | 910 | |
| Slide Bottom Size | F-B | b | mm | 650 |
| L-R | a | mm | 880 | |
| Shank Hole Size | Diameter | d | mm | 70 |
| Depth | I | mm | 100 | |
| Table Size | F-B | D | mm | 840 |
| L-R | C | mm | 1390 | |
| Thickness | H3 | mm | 180 | |
| Table Hole Diameter | ¢ | mm | 240 | |
| Overall Dimensions | F-B | A | mm | 2600 |
| L-R | B | mm | 1540 | |
| Height | H | mm | 3800 | |
| Motor Power | KW | 18.5 | ||
| Weight (approximate) | kg | 19200 | ||
JH21-200 is a 200ton single crank press machine. It is a mechanical type press machine with pneumatic clutch. The world patent wet clutch adopts high quality friction discs and best oil seal. All discs are oil bath in the flywheel, better for lubricant and oil cooling. This design ensures lower noise, longer service life and cheaper maintenance cost. Control system includes international brand PLC, encoder and HMI.
-Panasonic brand PLC and Kinco HMI
-Pneumatic clutch and brake, WORLD patent design
-Hydraulic overload protection system
-Slide adjust flat motor
-Automatic central control grease lubricant system
-Both two-hand-button control and foot pedal control
-frequency inverter for adjustable stroke speeds
-safety light barriers
-piston type pneumatic cushion under the bolster
-metal strip uncoiling machine and feeding machine
| ITEM | CODE | UNIT | JH21-200 | |
| Nominal Capacity | Pe | KN | 2000 | |
| Tonnage Point Distance | mm | 6 | ||
| Slide Stroke Length | S | mm | 220 | |
| Slide Strokes | Fixed | spm | 45 | |
| Variable (optional) | spm | 25-45 | ||
| Max. Shut Height | H2 | mm | 450 | |
| Shut Height Adjustment | t | mm | 110 | |
| Throat Depth | C1 | mm | 430 | |
| Distance Between Columns | d1 | mm | 910 | |
| Slide Bottom Size | F-B | b | mm | 650 |
| L-R | a | mm | 880 | |
| Shank Hole Size | Diameter | d | mm | 70 |
| Depth | I | mm | 100 | |
| Table Size | F-B | D | mm | 840 |
| L-R | C | mm | 1390 | |
| Thickness | H3 | mm | 180 | |
| Table Hole Diameter | ¢ | mm | 240 | |
| Overall Dimensions | F-B | A | mm | 2600 |
| L-R | B | mm | 1540 | |
| Height | H | mm | 3800 | |
| Motor Power | KW | 18.5 | ||
| Weight (approximate) | kg | 19200 | ||
