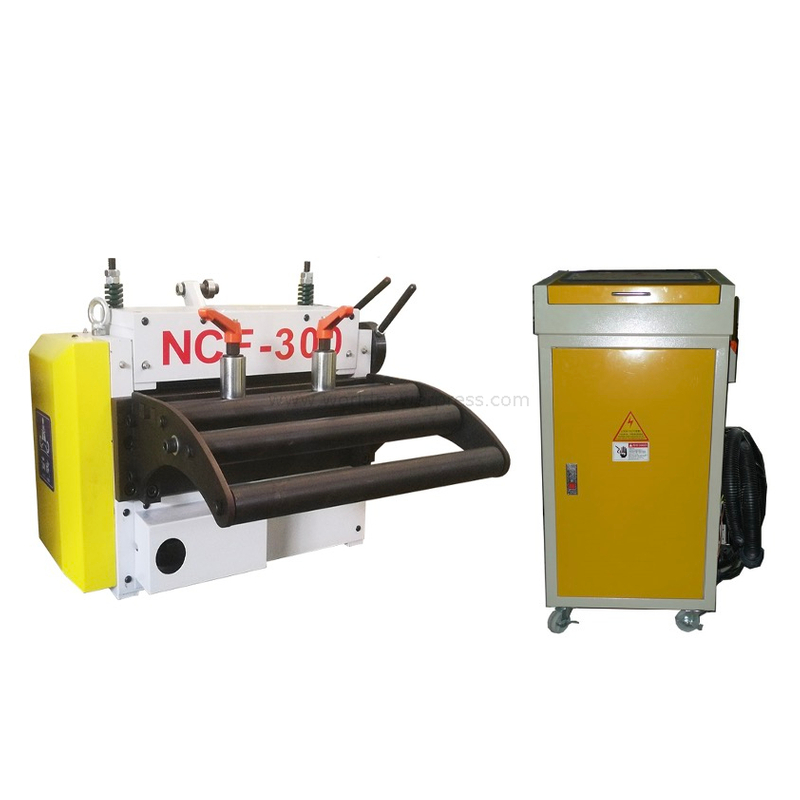

NCF
1. The feeder can work synchronously with stamping press.
2. The feeder can work with decoiling machine.
3. Feeding head with movable control electric cabinet.
4. PLC control with HMI (7” LCD touch screen, English/Chinese versions).
5. Servo motor drive.
6. Rollers surface chrome plated, hardness HRC60.
7. Manual and automatic feeding modes.
8. Feeding precision 0.03mm, feeding speed 1-20m/min.
9. Can set the feeding pitch, feeding speed, and feeding steps through the HMI.
10. Can match the press to accept the feeding and release signals.
11. Pneumatic release and mechanical release optional.
12. Standard with mounting plate to fix on press table.
13. Height adjustable support bracket is optional.
14. CE mark.
Model No | NCF-100 | NCF-200 | NCF-300 | NCF-400 | NCF-500 | NCF-600 | NCF-700 | NCF-800 |
Material thickness | 0.2-2.2mm | |||||||
Material width | 100mm | 200mm | 300mm | 400mm | 500mm | 600mm | 700mm | 800mm |
Max. feeding length | 9999mm | |||||||
Feeding speed | 20m/min | |||||||
PLC | MITSUBISHI | |||||||
Servo motor | YASKAWA | |||||||
Release type | Mechanical | Mechanical/pneumatic | pneumatic |
Model No | NCF-100 | NCF-200 | NCF-300 | NCF-400 | NCF-500 | NCF-600 | NCF-700 | NCF-800 | NCF-1000 |
Material thickness | 0.2-3.2mm | ||||||||
Material width | 100mm | 200mm | 300mm | 400mm | 500mm | 600mm | 700mm | 800mm | 1000mm |
Max. feeding length | 9999mm | ||||||||
Feeding speed | 20m/min | ||||||||
PLC | MITSUBISHI | ||||||||
Servo motor | YASKAWA | ||||||||
Release type | Mechanical | Mechanical/pneumatic | pneumatic |
Model No | NCF-100 | NCF-200 | NCF-300 | NCF-400 | NCF-500 | NCF-600 | NCF-700 | NCF-800 |
Material thickness | 0.2-4.5mm | |||||||
Material width | 100mm | 200mm | 300mm | 400mm | 500mm | 600mm | 700mm | 800mm |
Max. feeding length | 9999mm | |||||||
Feeding speed | 20m/min | |||||||
PLC | MITSUBISHI | |||||||
Servo motor | YASKAWA | |||||||
Release type | Mechanical | Mechanical/pneumatic | pneumatic |
