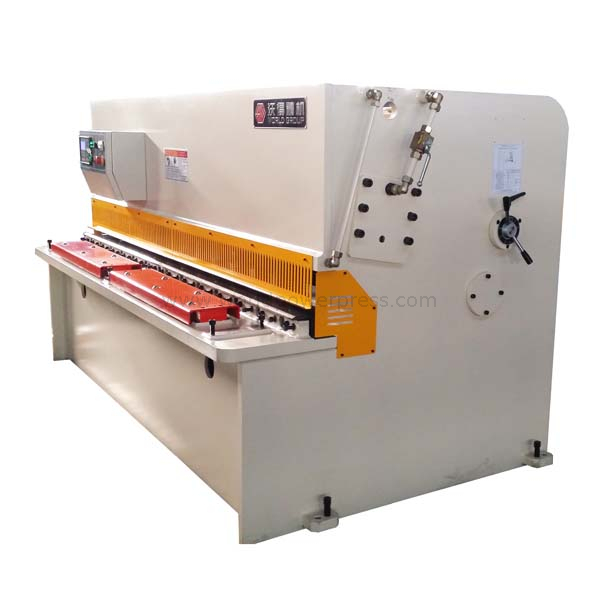

QC12Y-6x2500
-Max. Cutting length: 2.6 meters
-Blade length: 2600mm
-Cutting thickness: Max. 6mm for carbon steel, Max. 3mm for stainless steel
-Control system: NC control, with LCD HMI
NO. | ITEM | VALUE | UNIT | |
1 | Shearing thickness | 6 | mm | |
2 | Shearing width | 2500 | mm | |
3 | Plate tensile | σb≤450 | N/mm2 | |
4 | strokes | 6-12 | times/min | |
5 | Angle of shearing | 1.5° | ||
6 | Throat depth | 150 | mm | |
7 | Blade length | 2600 | mm | |
8 | Distance from table to ground | 800 | mm | |
9 | Range of back gauge | 20～600 | mm | |
10 | Maim motor | Model | Y160M-4B5 | |
Power | 7.5 | KW | ||
Rotate speed | 1440 | rpm | ||
11
| axial plunger pump | Model | 25MCY1-1B | |
Flow rate | 25 | L/min | ||
Pressure | 31.5 | Mpa | ||
12 | Overall dimension | Length | 3300 | mm |
Width | 1600 | mm | ||
Height | 1600 | mm | ||
13 | Weight | 4.3 | Ton | |
-Max. Cutting length: 2.6 meters
-Blade length: 2600mm
-Cutting thickness: Max. 6mm for carbon steel, Max. 3mm for stainless steel
-Control system: NC control, with LCD HMI
NO. | ITEM | VALUE | UNIT | |
1 | Shearing thickness | 6 | mm | |
2 | Shearing width | 2500 | mm | |
3 | Plate tensile | σb≤450 | N/mm2 | |
4 | strokes | 6-12 | times/min | |
5 | Angle of shearing | 1.5° | ||
6 | Throat depth | 150 | mm | |
7 | Blade length | 2600 | mm | |
8 | Distance from table to ground | 800 | mm | |
9 | Range of back gauge | 20～600 | mm | |
10 | Maim motor | Model | Y160M-4B5 | |
Power | 7.5 | KW | ||
Rotate speed | 1440 | rpm | ||
11
| axial plunger pump | Model | 25MCY1-1B | |
Flow rate | 25 | L/min | ||
Pressure | 31.5 | Mpa | ||
12 | Overall dimension | Length | 3300 | mm |
Width | 1600 | mm | ||
Height | 1600 | mm | ||
13 | Weight | 4.3 | Ton | |
