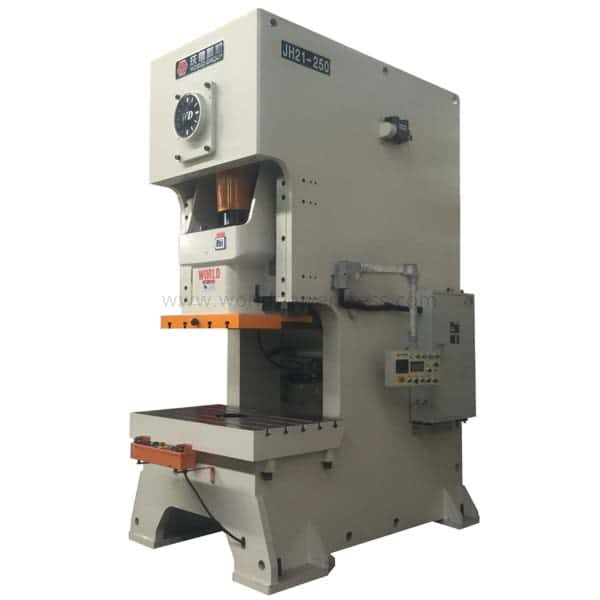

JH21-250
WORLD
single point, single crank with pneumatic clutch transmission, slide adjustment by motor, hydraulic overload protection, two-hand-button control and foot pedal control, oil bath type clutch and brake, with safety solenoid valve.
| ITEM | CODE | UNIT | JH21-250 | |
| Nominal Capacity | Pe | KN | 2500 | |
| Tonnage Point | mm | 6.5 | ||
| Slide Stroke Length | S | mm | 220 | |
| Slide Strokes | Fixed | spm | 30 | |
| Variable (optional) | spm | 20-35 | ||
| Max. Shut Height | H2 | mm | 500 | |
| Shut Height Adjustment | t | mm | 120 | |
| Throat Depth | C1 | mm | 450 | |
| Distance Between Columns | d1 | mm | 980 | |
| Slide Bottom Size | F-B | b | mm | 700 |
| L-R | a | mm | 950 | |
| Shank Hole Size | Diameter | d | mm | 70 |
| Depth | I | mm | 100 | |
| Table Size | F-B | D | mm | 880 |
| L-R | C | mm | 1500 | |
| Thickness | H3 | mm | 190 | |
| Table Hole Diameter | ¢ | mm | 240 | |
| Overall Dimensions | F-B | A | mm | 2660 |
| L-R | B | mm | 1640 | |
| Height | H | mm | 3865 | |
| Motor Power | KW | 22 | ||
| Weight (approximate) | kg | 23200 | ||
single point, single crank with pneumatic clutch transmission, slide adjustment by motor, hydraulic overload protection, two-hand-button control and foot pedal control, oil bath type clutch and brake, with safety solenoid valve.
| ITEM | CODE | UNIT | JH21-250 | |
| Nominal Capacity | Pe | KN | 2500 | |
| Tonnage Point | mm | 6.5 | ||
| Slide Stroke Length | S | mm | 220 | |
| Slide Strokes | Fixed | spm | 30 | |
| Variable (optional) | spm | 20-35 | ||
| Max. Shut Height | H2 | mm | 500 | |
| Shut Height Adjustment | t | mm | 120 | |
| Throat Depth | C1 | mm | 450 | |
| Distance Between Columns | d1 | mm | 980 | |
| Slide Bottom Size | F-B | b | mm | 700 |
| L-R | a | mm | 950 | |
| Shank Hole Size | Diameter | d | mm | 70 |
| Depth | I | mm | 100 | |
| Table Size | F-B | D | mm | 880 |
| L-R | C | mm | 1500 | |
| Thickness | H3 | mm | 190 | |
| Table Hole Diameter | ¢ | mm | 240 | |
| Overall Dimensions | F-B | A | mm | 2660 |
| L-R | B | mm | 1640 | |
| Height | H | mm | 3865 | |
| Motor Power | KW | 22 | ||
| Weight (approximate) | kg | 23200 | ||
