JW31-630
WORLD

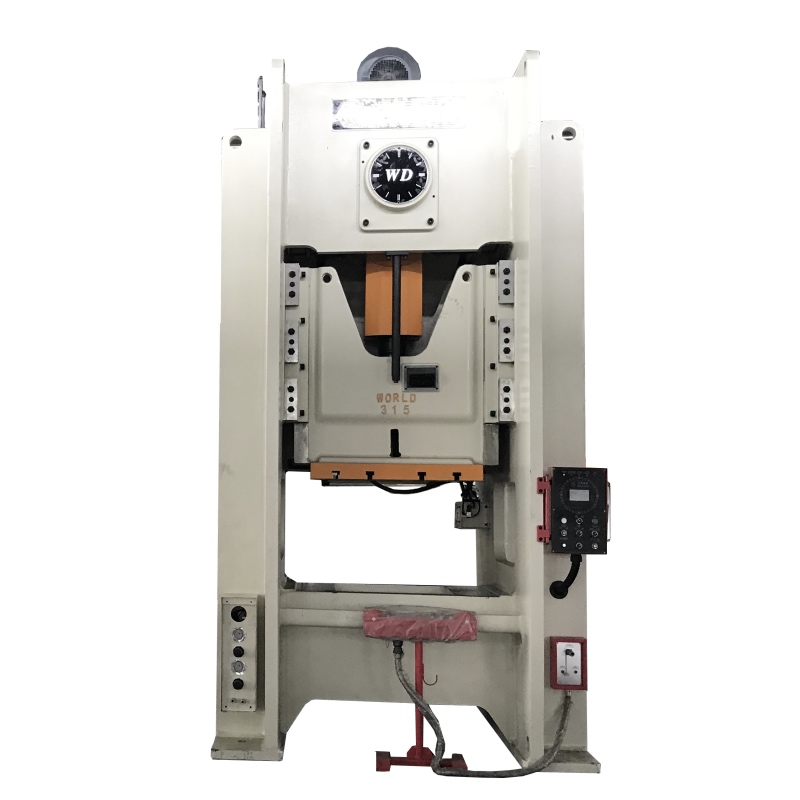

JW31-630 is a straight side press with 630ton capacity. Single crankshaft is cross located. And a wet type clutch is mounted on the back. This press adopts H frame steel welded body for more strength. Press body is mono-block type. It can work as metal stamping press and hot forging press. Press control system includes a PLC and cam controllers. Operator can check the press working status from the touch screen. And the HMI has counter and pre-set counter function. It is the biggest size mono block type crank press.
Press model number: JW31-630
Press capacity: 630ton
Bolster size: 1700x1200mm
Ram plate size: 1400x1200mm
Max. Die shut height: 650mm
Stroke length: 250mm
Stroke speed: 20spm
Main motor power: 75kw
Machine weight: 68ton
JW31-630 is a straight side press with 630ton capacity. Single crankshaft is cross located. And a wet type clutch is mounted on the back. This press adopts H frame steel welded body for more strength. Press body is mono-block type. It can work as metal stamping press and hot forging press. Press control system includes a PLC and cam controllers. Operator can check the press working status from the touch screen. And the HMI has counter and pre-set counter function. It is the biggest size mono block type crank press.
Press model number: JW31-630
Press capacity: 630ton
Bolster size: 1700x1200mm
Ram plate size: 1400x1200mm
Max. Die shut height: 650mm
Stroke length: 250mm
Stroke speed: 20spm
Main motor power: 75kw
Machine weight: 68ton
