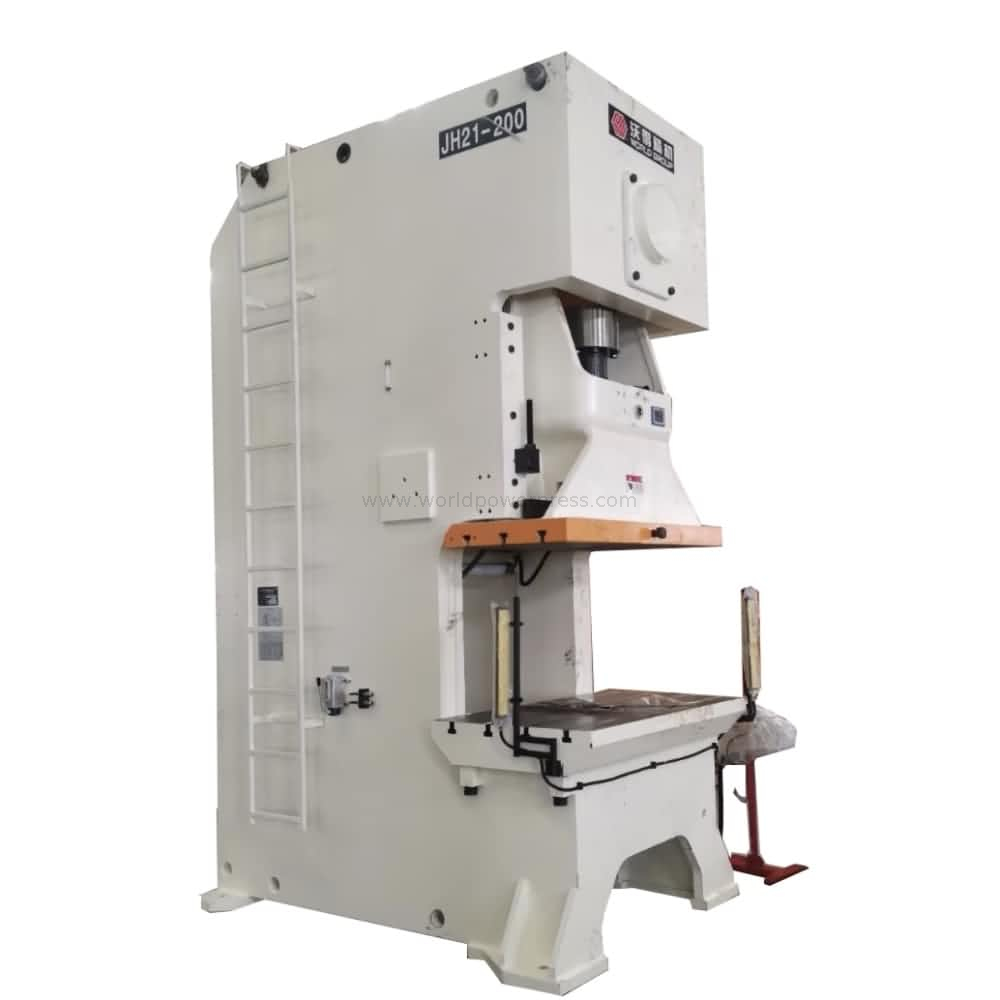

Advantages of JH21-200 stamping press: . Wet type pneumatic clutch and brake, with dual-safety solenoid valve
. PLC control, HMI with monitor function
. Motorized ram height adjustment
. Rectangular type long slide guides for high precision
. Inches, single stroke and continuous working modes switchable
. Gap frame steel plate welded body
. Cross located crankshaft with big gear transmission
Optional accessories for press: -safety light barriers
-varaible speed motor drive
-die cushion
-servo roll feeder
-decoiler
-flywheel brake
Advantages of JH21-200 stamping press: . Wet type pneumatic clutch and brake, with dual-safety solenoid valve
. PLC control, HMI with monitor function
. Motorized ram height adjustment
. Rectangular type long slide guides for high precision
. Inches, single stroke and continuous working modes switchable
. Gap frame steel plate welded body
. Cross located crankshaft with big gear transmission
Optional accessories for press: -safety light barriers
-varaible speed motor drive
-die cushion
-servo roll feeder
-decoiler
-flywheel brake
{"type":"2","json":[{"index":"0","tran_value":["JH21-200"],"tran_label":"Press Model"},{"index":"1","tran_label":"Nominal Tonnage","tran_value":["2000kN"]},{"index":"2","tran_label":"Stroke Length","tran_value":["150mm"]},{"index":"3","tran_label":"Rated Stroke Point","tran_value":["6mm"]},{"index":"4","tran_label":"Stroke Speed","tran_value":["40-70spm"]},{"index":"5","tran_label":"Max. Shut Height","tran_value":["485mm"]},{"index":"6","tran_label":"Slide Adjustment","tran_value":["110mm"]},{"index":"7","tran_label":"Bolster Size","tran_value":["1390mm x 840mm"]},{"index":"8","tran_label":"Slide Area","tran_value":["880mm x 650mm"]},{"index":"9","tran_label":"Bolster Thickness","tran_value":["180mm"]},{"index":"10","tran_label":"Table Hole Diameter","tran_value":["240mm"]},{"index":"11","tran_label":"Shank Hole Diameter","tran_value":["70mm"]},{"index":"12","tran_label":"Shank Hole Depth","tran_value":["100mm"]},{"index":"13","tran_label":"Bolster Surface Height","tran_value":["1000mm"]},{"index":"14","tran_label":"Motor Power","tran_value":["18.5kW"]}]}
