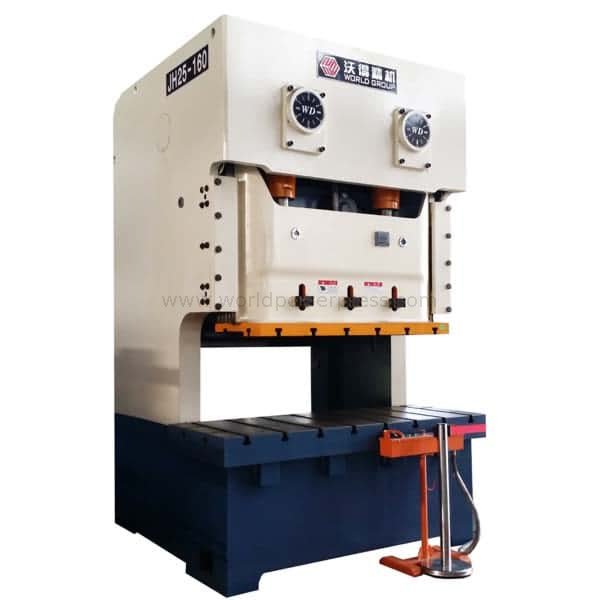

double crank 160 ton gap frame die stamping press

JH25-160 is a c frame press machine. Tonnage capacity is 160ton. Double crankshafts ensure bigger size table. So this power press machine is suitable for big sheet stamping. And suitable for progressive die stamping. The press adopts steel plate welded frame and casting iron ram. Wet type clutch is easier for maintenance. Grease pump is for automatic lubrication. Standard configurations include the overload pump and automatic grease pump.

Availability:

Quantity:



Inquire Add to Basket

Model:
JH25-160
Brand:
WORLD

Product Description

160 ton gap frame die stamping press

-double crankshafts cross located

-wide bolster for progressive die stamping

-two power points, small deflection

-PLC control, wet type pneumatic clutch

-Automaitc grease lubrication

160 ton double crank stamping press technical parameters

ITEM		CODE	UNIT	JH25-160
Nominal Capacity		Pe	KN	1600
Stroke Length		S	mm	200
Stroke Speed	Fixed		spm	45
Stroke Speed	Variable (optional)		spm	35-55
Max. Die Shut Height		H2	mm	450
Die Shut Height Adjustment		t	mm	100
Throat Depth		G	mm	390
Distance Between Uprights		N	mm	1600
Table Size	F-B	D	mm	760
	L-R	C	mm	2040
	Thickness	H3	mm	165
Slide Bottom Size	F-B	b	mm	580
Slide Bottom Size	L-R	a	mm	1500
Table Surface Height		H1	mm	900
Overall Dimensions	F-B	A	mm	2080
	L-R	B	mm	2150
	Height	H	mm	3380
Motor Power			KW	18.5
Weight (approximate)			kg	19000
