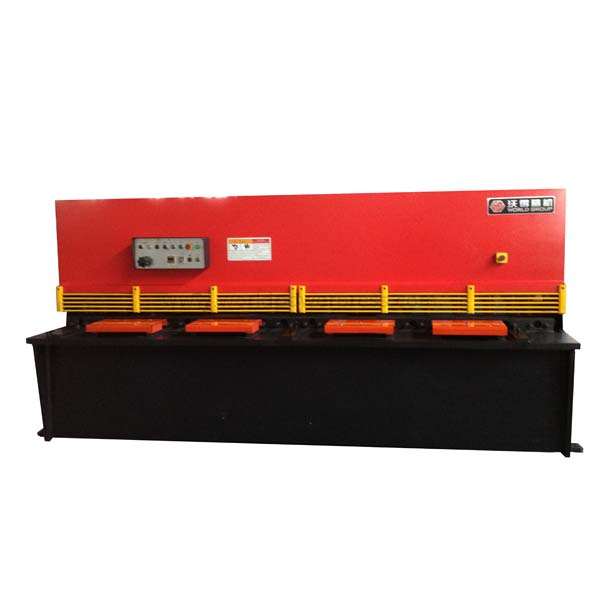

QC12Y-8x2500
-Control: E21s NC system and foot pedal
-Max. Cutting thickness: 8mm (carbon steel), 4mm (stainless steel)
-Blade length: 2600mm
-Motor: Siemens
NO. | ITEM | VALUE | UNIT | |
1 | Shearing thickness | 8 | Mm | |
2 | Shearing width | 2500 | Mm | |
3 | Plate tensile | σb≤450 | N/mm2 | |
4 | Strokes | 6-12 | times/min | |
5 | Angle of shearing | 1.5° | ||
6 | Throat depth | 150 | Mm | |
7 | Blade length | 2600 | Mm | |
8 | Distance from table to ground | 800 | Mm | |
9 | Range of back gauge | 20～600 | Mm | |
10 | Maim motor | Model | Y160M-4B5 | |
Power | 11 | KW | ||
Rotate speed | 1440 | Rpm | ||
11
| axial plunger pump | Model | KIP4-32 | |
Flow rate | 32 | L/min | ||
Pressure | 25 | Mpa | ||
12 | Overall dimension | Length | 3300 | Mm |
Width | 1800 | Mm | ||
Height | 1800 | Mm | ||
13 | Weight | 5 | Ton | |
-Control: E21s NC system and foot pedal
-Max. Cutting thickness: 8mm (carbon steel), 4mm (stainless steel)
-Blade length: 2600mm
-Motor: Siemens
NO. | ITEM | VALUE | UNIT | |
1 | Shearing thickness | 8 | Mm | |
2 | Shearing width | 2500 | Mm | |
3 | Plate tensile | σb≤450 | N/mm2 | |
4 | Strokes | 6-12 | times/min | |
5 | Angle of shearing | 1.5° | ||
6 | Throat depth | 150 | Mm | |
7 | Blade length | 2600 | Mm | |
8 | Distance from table to ground | 800 | Mm | |
9 | Range of back gauge | 20～600 | Mm | |
10 | Maim motor | Model | Y160M-4B5 | |
Power | 11 | KW | ||
Rotate speed | 1440 | Rpm | ||
11
| axial plunger pump | Model | KIP4-32 | |
Flow rate | 32 | L/min | ||
Pressure | 25 | Mpa | ||
12 | Overall dimension | Length | 3300 | Mm |
Width | 1800 | Mm | ||
Height | 1800 | Mm | ||
13 | Weight | 5 | Ton | |
