JH21-160
WORLD

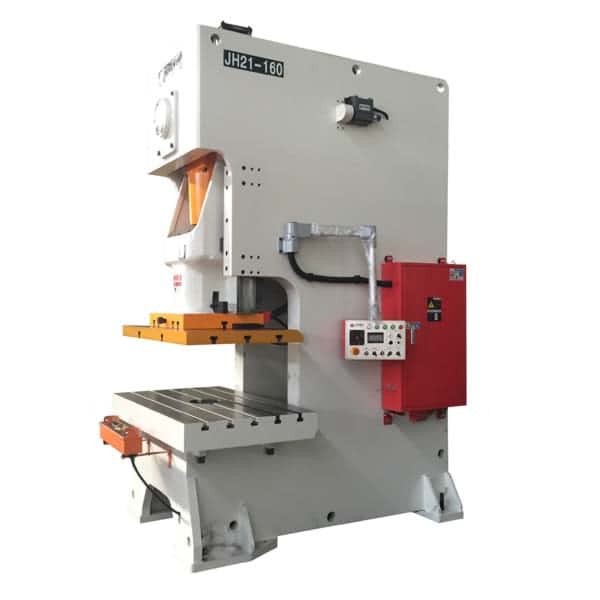

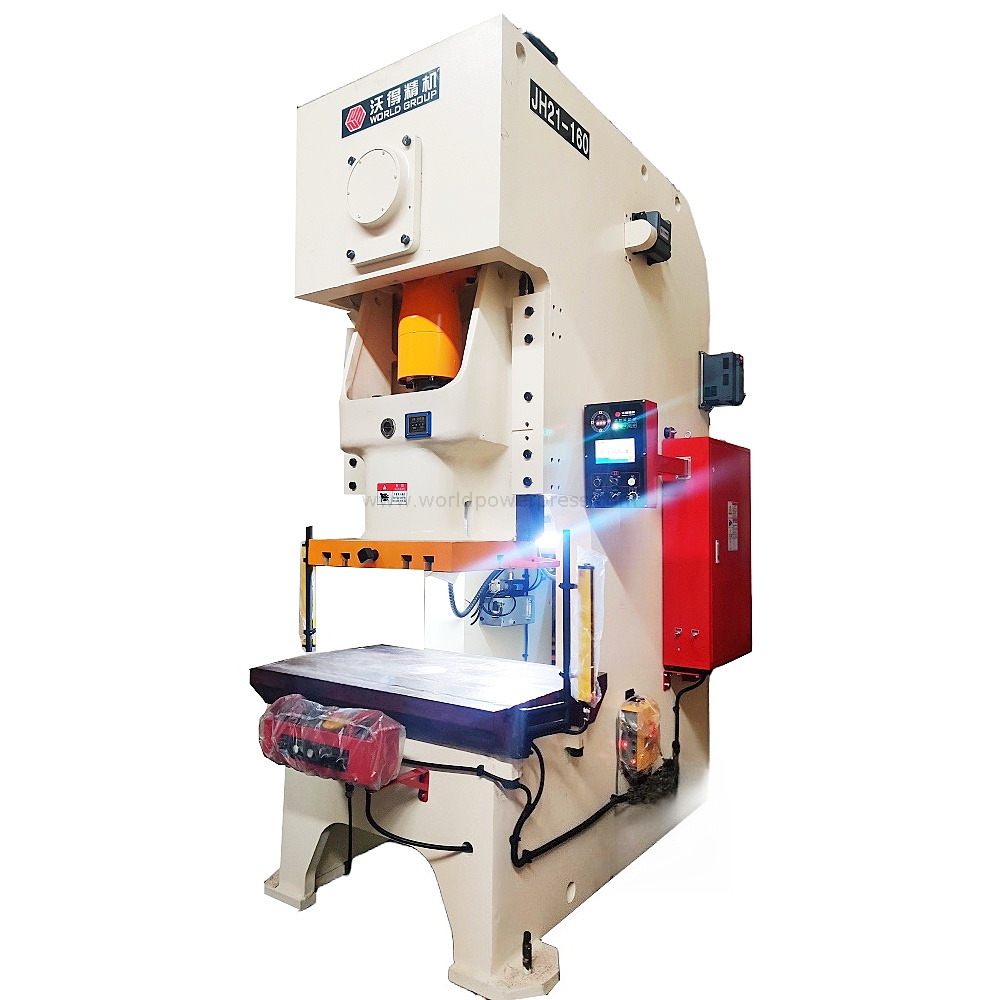

A 160ton nominal force power press machine. JH21-160 is mechanical press machine with C frame body. The body is steel welded type with annealing treatment. A wet type pneumatic clutch is controlled by dual-safety valve. All clutch and brake pads are oil bath inside the flywheel. 40CrMo material forged crankshaft ensures strong power and long service life.
-Panasonic brand PLC and Kinco HMI
-Pneumatic clutch and brake, WORLD patent design
-Hydraulic overload protection system
-Slide adjust flat motor
-Automatic central control grease lubricant system
-Both two-hand-button control and foot pedal control
-Anti-vibraton mounting pads
-frequency inverter for adjustable stroke speeds
-safety light barriers
-piston type pneumatic cushion under the bolster
-metal strip uncoiling machine and feeding machine
-die safety block
-die quick change device
| ITEM | CODE | UNIT | JH21-160 | |
| Nominal Capacity | Pe | KN | 1600 | |
| Tonnage Point | mm | 6 | ||
| Slide Stroke Length | S | mm | 200 | |
| Slide Strokes | Fixed | spm | 45 | |
| Variable (optional) | spm | 30-45 | ||
| Max. Shut Height | H2 | mm | 400 | |
| Shut Height Adjustment | t | mm | 100 | |
| Throat Depth | C1 | mm | 400 | |
| Distance Between Columns | d1 | mm | 676 | |
| Slide Bottom Size | F-B | b | mm | 580 |
| L-R | a | mm | 700 | |
| Shank Hole Size | Diameter | d | mm | 70 |
| Depth | I | mm | 100 | |
| Table Size | F-B | D | mm | 760 |
| L-R | C | mm | 1175 | |
| Thickness | H3 | mm | 165 | |
| Table Hole Diameter | ¢ | mm | 220 | |
| Overall Dimensions | F-B | A | mm | 2305 |
| L-R | B | mm | 1420 | |
| Height | H | mm | 3215 | |
| Motor Power | KW | 15 | ||
| Weight (approximate) | kg | 13600 | ||
A 160ton nominal force power press machine. JH21-160 is mechanical press machine with C frame body. The body is steel welded type with annealing treatment. A wet type pneumatic clutch is controlled by dual-safety valve. All clutch and brake pads are oil bath inside the flywheel. 40CrMo material forged crankshaft ensures strong power and long service life.
-Panasonic brand PLC and Kinco HMI
-Pneumatic clutch and brake, WORLD patent design
-Hydraulic overload protection system
-Slide adjust flat motor
-Automatic central control grease lubricant system
-Both two-hand-button control and foot pedal control
-Anti-vibraton mounting pads
-frequency inverter for adjustable stroke speeds
-safety light barriers
-piston type pneumatic cushion under the bolster
-metal strip uncoiling machine and feeding machine
-die safety block
-die quick change device
| ITEM | CODE | UNIT | JH21-160 | |
| Nominal Capacity | Pe | KN | 1600 | |
| Tonnage Point | mm | 6 | ||
| Slide Stroke Length | S | mm | 200 | |
| Slide Strokes | Fixed | spm | 45 | |
| Variable (optional) | spm | 30-45 | ||
| Max. Shut Height | H2 | mm | 400 | |
| Shut Height Adjustment | t | mm | 100 | |
| Throat Depth | C1 | mm | 400 | |
| Distance Between Columns | d1 | mm | 676 | |
| Slide Bottom Size | F-B | b | mm | 580 |
| L-R | a | mm | 700 | |
| Shank Hole Size | Diameter | d | mm | 70 |
| Depth | I | mm | 100 | |
| Table Size | F-B | D | mm | 760 |
| L-R | C | mm | 1175 | |
| Thickness | H3 | mm | 165 | |
| Table Hole Diameter | ¢ | mm | 220 | |
| Overall Dimensions | F-B | A | mm | 2305 |
| L-R | B | mm | 1420 | |
| Height | H | mm | 3215 | |
| Motor Power | KW | 15 | ||
| Weight (approximate) | kg | 13600 | ||
