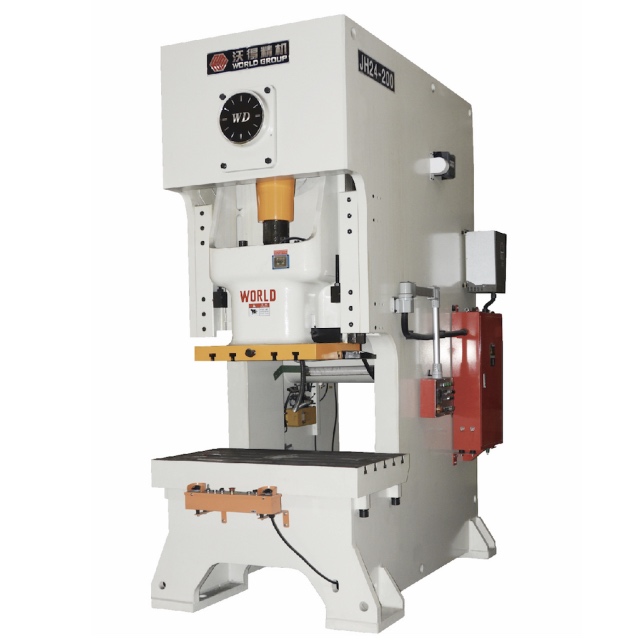

JH24
WORLD
.Multi-link transmission featured by slower pressing speed and faster back stroke speed
.Production efficiency can be 30% higher than general crank type press machine
.High precision, conform to JIS level one
.High rigidity steel plate welding body
.Wet clutch
.PLC control, hydraulic overload proctection
.Automatic grease central lubrication system
.Motorized ram adjusting with die height digital indicator
| Parameters | JH24-80 | JH24-125 | JH24-160 | JH24-200 | JH24-250 | JH24-315 | ||||||||
| Type | KN | H | S | H | S | H | S | H | S | H | S | H | S | |
| Nominal Capacity | mm | 800 | 1250 | 1600 | 2000 | 2500 | 3150 | |||||||
| Tonnage Point | mm | 5 | 5 | 6 | 6 | 6 | 6 | 6 | 6 | 6.5 | 6.5 | 7 | 7 | |
| Stroke length | mm | 100 | 160 | 110 | 180 | 130 | 200 | 150 | 220 | 160 | 220 | 160 | 220 | |
| Speed | Fixed | min-1 | 80 | 60 | 70 | 50 | 60 | 45 | 50 | 35 | 45 | 30 | 45 | 30 |
| Varaiable (optional) | min-1 | 55-95 | 40-75 | 50-85 | 35-60 | 35-70 | 30-55 | 35-60 | 30-45 | 30-55 | 20-35 | 30-55 | 20-35 | |
| Max. Die Shut Height | mm | 350 | 320 | 385 | 350 | 435 | 400 | 485 | 450 | 530 | 500 | 530 | 500 | |
| Shut Height adjustment | mm | 80 | 90 | 100 | 110 | 120 | 120 | |||||||
| Throat Depth | mm | 310 | 350 | 400 | 430 | 450 | 450 | |||||||
| Distance Between Columns | mm | 625 | 700 | 760 | 990 | 1050 | 1090 | |||||||
| Slide Size | LR | mm | 540 | 620 | 700 | 880 | 950 | 950 | ||||||
| FB | mm | 460 | 520 | 580 | 650 | 700 | 700 | |||||||
| Shank Hole Size | Dia | mm | 50 | 70 | 70 | 70 | 70 | 70 | ||||||
| Depth | mm | 70 | 80 | 100 | 100 | 130 | 130 | |||||||
| Table Size | LR | mm | 1000 | 1150 | 1200 | 1450 | 1600 | 1600 | ||||||
| FB | mm | 600 | 680 | 760 | 840 | 880 | 880 | |||||||
| Table Hole Size | mm | 180 | 200 | 220 | 240 | 240 | 240 | |||||||
| Table Thickness | mm | 140 | 155 | 165 | 180 | 190 | 190 | |||||||
| Height of Table Surface to Floor | mm | 900 | 900 | 900 | 1000 | 1000 | 1000 | |||||||
| Dimensions | FB | mm | 1765 | 2040 | 2305 | 2600 | 2660 | 2720 | ||||||
| LR | mm | 1250 | 1360 | 1460 | 1620 | 1710 | 1750 | |||||||
| Height | mm | 2725 | 3035 | 3215 | 3800 | 3850 | 3850 | |||||||
| Motor Power | Kw | 7.5 | 11 | 15 | 18.5 | 22 | 30 | |||||||
| Weight | Kg | 6650 | 9850 | 13900 | 19800 | 24100 | 27400 | |||||||
| Air Pressure | Mpa | 0.5 | ||||||||||||
.Multi-link transmission featured by slower pressing speed and faster back stroke speed
.Production efficiency can be 30% higher than general crank type press machine
.High precision, conform to JIS level one
.High rigidity steel plate welding body
.Wet clutch
.PLC control, hydraulic overload proctection
.Automatic grease central lubrication system
.Motorized ram adjusting with die height digital indicator
| Parameters | JH24-80 | JH24-125 | JH24-160 | JH24-200 | JH24-250 | JH24-315 | ||||||||
| Type | KN | H | S | H | S | H | S | H | S | H | S | H | S | |
| Nominal Capacity | mm | 800 | 1250 | 1600 | 2000 | 2500 | 3150 | |||||||
| Tonnage Point | mm | 5 | 5 | 6 | 6 | 6 | 6 | 6 | 6 | 6.5 | 6.5 | 7 | 7 | |
| Stroke length | mm | 100 | 160 | 110 | 180 | 130 | 200 | 150 | 220 | 160 | 220 | 160 | 220 | |
| Speed | Fixed | min-1 | 80 | 60 | 70 | 50 | 60 | 45 | 50 | 35 | 45 | 30 | 45 | 30 |
| Varaiable (optional) | min-1 | 55-95 | 40-75 | 50-85 | 35-60 | 35-70 | 30-55 | 35-60 | 30-45 | 30-55 | 20-35 | 30-55 | 20-35 | |
| Max. Die Shut Height | mm | 350 | 320 | 385 | 350 | 435 | 400 | 485 | 450 | 530 | 500 | 530 | 500 | |
| Shut Height adjustment | mm | 80 | 90 | 100 | 110 | 120 | 120 | |||||||
| Throat Depth | mm | 310 | 350 | 400 | 430 | 450 | 450 | |||||||
| Distance Between Columns | mm | 625 | 700 | 760 | 990 | 1050 | 1090 | |||||||
| Slide Size | LR | mm | 540 | 620 | 700 | 880 | 950 | 950 | ||||||
| FB | mm | 460 | 520 | 580 | 650 | 700 | 700 | |||||||
| Shank Hole Size | Dia | mm | 50 | 70 | 70 | 70 | 70 | 70 | ||||||
| Depth | mm | 70 | 80 | 100 | 100 | 130 | 130 | |||||||
| Table Size | LR | mm | 1000 | 1150 | 1200 | 1450 | 1600 | 1600 | ||||||
| FB | mm | 600 | 680 | 760 | 840 | 880 | 880 | |||||||
| Table Hole Size | mm | 180 | 200 | 220 | 240 | 240 | 240 | |||||||
| Table Thickness | mm | 140 | 155 | 165 | 180 | 190 | 190 | |||||||
| Height of Table Surface to Floor | mm | 900 | 900 | 900 | 1000 | 1000 | 1000 | |||||||
| Dimensions | FB | mm | 1765 | 2040 | 2305 | 2600 | 2660 | 2720 | ||||||
| LR | mm | 1250 | 1360 | 1460 | 1620 | 1710 | 1750 | |||||||
| Height | mm | 2725 | 3035 | 3215 | 3800 | 3850 | 3850 | |||||||
| Motor Power | Kw | 7.5 | 11 | 15 | 18.5 | 22 | 30 | |||||||
| Weight | Kg | 6650 | 9850 | 13900 | 19800 | 24100 | 27400 | |||||||
| Air Pressure | Mpa | 0.5 | ||||||||||||
