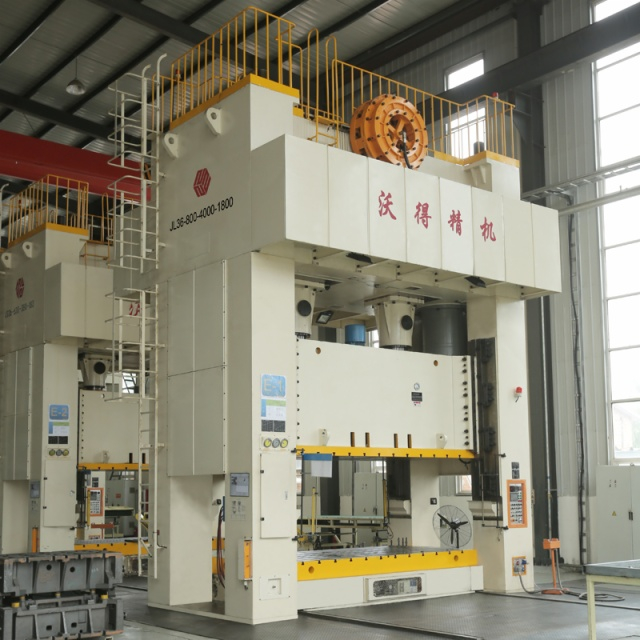

JL36
WORLD
.Multi-connecting rods transmission and rods different rotation
.Finite element analysis is applied for large scale structure, with high rigidity
.With special dry clutch and brake
.With heavy load automatic lubrication system adn alarm function
.Lengthened eight faces guide rails
.HMI with mold parameters store function
.Suitable for automatic stamping line with coil sheet feeding system
| Parameters | JL36-630 | JL36-800 | JL36-1000 | JL36-1300 | JL36-1600 | JL36-2000 | |
| Nominal Capacity | KN | 6300 | 8000 | 10000 | 13000 | 16000 | 20000 |
| Tonnage Point | mm | 13 | 13 | 13 | 13 | 13 | 13 |
| Stroke Length | mm | 700 | 750 | 800 | 900 | 1000 | 1000 |
| Stroke Speed | min-1 | 10~20 | 10~18 | 10~16 | 10~16 | 10~16 | 10~15 |
| Max. Die Shut Height | mm | 1100 | 1100 | 1100 | 1200 | 1200 | 1300 |
| Shut Height Adjustment | mm | 550 | 550 | 600 | 650 | 650 | 700 |
| Table Size | mm | 1600*3600 | 1800*3800 | 1800*4000 | 1800*4000 | 1900*4600 | 2000*4600 |
| Slide Size | mm | 1600*3600 | 1800*3800 | 1800*4000 | 1800*4000 | 1900*4600 | 2000*4600 |
| Working Energy | Kg*m | 16000（at spm20） | 19000（at spm18） | 25000（at spm16） | 32000（at spm16） | 38000（at spm16） | 52000（at spm15） |
| Distance Between Guides | mm | 3620 | 3820 | 4020 | 4020 | 4620 | 4620 |
| Table Surface Height | mm | 700 | 700 | 750 | 750 | 750 | 800 |
| Max. Upper Die Weight | T | 15 | 15 | 20 | 25 | 25 | 30 |
| Motor Power | KW | 90*4 | 110*4 | 132*4 | 160*4 | 200*4 | 250*4 |
| Height Above Floor | mm | 9100 | 9300 | 9600 | 10100 | 10550 | 10900 |
.Multi-connecting rods transmission and rods different rotation
.Finite element analysis is applied for large scale structure, with high rigidity
.With special dry clutch and brake
.With heavy load automatic lubrication system adn alarm function
.Lengthened eight faces guide rails
.HMI with mold parameters store function
.Suitable for automatic stamping line with coil sheet feeding system
| Parameters | JL36-630 | JL36-800 | JL36-1000 | JL36-1300 | JL36-1600 | JL36-2000 | |
| Nominal Capacity | KN | 6300 | 8000 | 10000 | 13000 | 16000 | 20000 |
| Tonnage Point | mm | 13 | 13 | 13 | 13 | 13 | 13 |
| Stroke Length | mm | 700 | 750 | 800 | 900 | 1000 | 1000 |
| Stroke Speed | min-1 | 10~20 | 10~18 | 10~16 | 10~16 | 10~16 | 10~15 |
| Max. Die Shut Height | mm | 1100 | 1100 | 1100 | 1200 | 1200 | 1300 |
| Shut Height Adjustment | mm | 550 | 550 | 600 | 650 | 650 | 700 |
| Table Size | mm | 1600*3600 | 1800*3800 | 1800*4000 | 1800*4000 | 1900*4600 | 2000*4600 |
| Slide Size | mm | 1600*3600 | 1800*3800 | 1800*4000 | 1800*4000 | 1900*4600 | 2000*4600 |
| Working Energy | Kg*m | 16000（at spm20） | 19000（at spm18） | 25000（at spm16） | 32000（at spm16） | 38000（at spm16） | 52000（at spm15） |
| Distance Between Guides | mm | 3620 | 3820 | 4020 | 4020 | 4620 | 4620 |
| Table Surface Height | mm | 700 | 700 | 750 | 750 | 750 | 800 |
| Max. Upper Die Weight | T | 15 | 15 | 20 | 25 | 25 | 30 |
| Motor Power | KW | 90*4 | 110*4 | 132*4 | 160*4 | 200*4 | 250*4 |
| Height Above Floor | mm | 9100 | 9300 | 9600 | 10100 | 10550 | 10900 |
