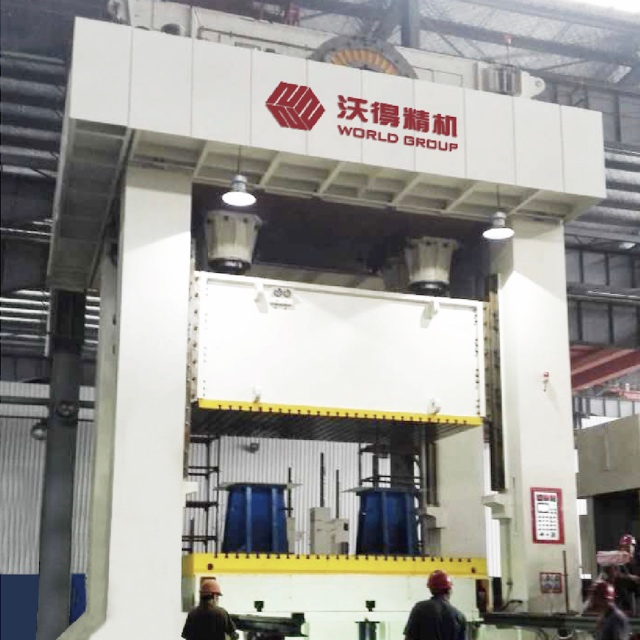

JL39
WORLD

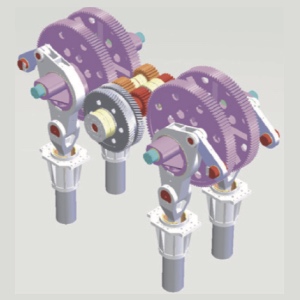

 Multi-link transmission system of four points link drive press.links different rotation directions .dry clutch and brake .with guide pillars and bushes .high accuracy of links production |
| Parameters | JL39-500 | JL39-630 | JL39-800 | JL39-1000 | JL39-1250 | JL39-1600 | JL39-2000 | |
| Nominal Capacity | KN | 5000 | 6300 | 8000 | 10000 | 12500 | 16000 | 20000 |
| Tonnage Point | mm | 13 | 13 | 13 | 13 | 13 | 13 | 13 |
| Stroke | mm | 800 | 800 | 800 | 800 | 800 | 700 | 600 |
| Speed | min-1 | 10~16 | 10~16 | 10~16 | 10~16 | 10~16 | 10~16 | 10~16 |
| Max. Die Shut Height | mm | 1000 | 1200 | 1200 | 1300 | 1400 | 1400 | 1400 |
| Slide Adjustment | mm | 500 | 500 | 500 | 600 | 600 | 600 | 600 |
| Table Size | mm | 3200*1900 | 3500*2000 | 4000*2200 | 4200*2400 | 4500*2400 | 4800*2500 | 5000*2500 |
| Slide Size | mm | 3200*1900 | 3500*2000 | 4000*2200 | 4200*2400 | 4500*2400 | 4800*2500 | 5000*2500 |
| Table Surface Height | mm | 700 | 700 | 700 | 700 | 750 | 750 | 800 |
| Motor Power | KW | 90 | 110 | 132 | 160 | 220 | 280 | 350 |
| Height Above Floor | mm | 8800 | 9300 | 9700 | 10300 | 10700 | 11300 | 11500 |
Multi-link transmission system of four points link drive press.links different rotation directions .dry clutch and brake .with guide pillars and bushes .high accuracy of links production |
| Parameters | JL39-500 | JL39-630 | JL39-800 | JL39-1000 | JL39-1250 | JL39-1600 | JL39-2000 | |
| Nominal Capacity | KN | 5000 | 6300 | 8000 | 10000 | 12500 | 16000 | 20000 |
| Tonnage Point | mm | 13 | 13 | 13 | 13 | 13 | 13 | 13 |
| Stroke | mm | 800 | 800 | 800 | 800 | 800 | 700 | 600 |
| Speed | min-1 | 10~16 | 10~16 | 10~16 | 10~16 | 10~16 | 10~16 | 10~16 |
| Max. Die Shut Height | mm | 1000 | 1200 | 1200 | 1300 | 1400 | 1400 | 1400 |
| Slide Adjustment | mm | 500 | 500 | 500 | 600 | 600 | 600 | 600 |
| Table Size | mm | 3200*1900 | 3500*2000 | 4000*2200 | 4200*2400 | 4500*2400 | 4800*2500 | 5000*2500 |
| Slide Size | mm | 3200*1900 | 3500*2000 | 4000*2200 | 4200*2400 | 4500*2400 | 4800*2500 | 5000*2500 |
| Table Surface Height | mm | 700 | 700 | 700 | 700 | 750 | 750 | 800 |
| Motor Power | KW | 90 | 110 | 132 | 160 | 220 | 280 | 350 |
| Height Above Floor | mm | 8800 | 9300 | 9700 | 10300 | 10700 | 11300 | 11500 |
