What Are High-speed punching machines？
High-speed punching machines are precision machines widely used in the following industries. 1. Electronics Industry: High-speed punching machines are used to produce electronic product housings, heat sinks, connectors, and other components. 3. Home Appliance Industry: High-speed punching machines are used to produce home appliance housings, brackets, and other components. 4. Hardware Industry: High-speed punching machines are used to produce hardware products such as locks, fasteners, and auto parts. 5. Daily Necessities Industry: High-speed punching machines are used to produce daily necessities such as kitchenware, tableware, and toilet lids. 6. Plastics Industry: High-speed punching machines are used to produce molds and related components for plastic products. 7. Medical Device Industry: High-speed punching machines are used to produce medical device housings and components.
Feature Box
High-Rigidity Frame
The press frame is constructed from high-tensile cast iron, providing an exceptionally stable and rigid structure. This design minimizes vibration and deflection, which is crucial for maintaining precision at high speeds and extending die life.
Dynamic Balancing System
A sophisticated counterweight system dynamically balances the machine's moving parts. This feature effectively reduces the inertial forces generated during high-speed operation, ensuring stable and quiet performance while protecting the foundation and surrounding equipment.
Precision Slide Guide
The slide runs on a high-precision guide system, often incorporating advanced roller bearings. This ensures that the ram remains perfectly parallel to the bolster throughout the entire stroke, guaranteeing stamping accuracy and preventing die wear.
Advanced Control System
Equipped with a state-of-the-art control system, our presses offer precise control over speed, stroke, and force. This allows for fine-tuning of the stamping process, optimizing material flow, and reducing waste.
Application
High-speed presses are a cornerstone of modern manufacturing, used in industries where speed and precision are non-negotiable.
Motor rotor and stator stamping
The motor core is the key component of a motor, playing a critical role in maximizing electromagnetic power conversion by increasing the magnetic flux of the inductor coil. It typically consists of a stator (non-rotating part) and a rotor (embedded within the stator).
Modern stamping technology is a high-tech process that combines equipment, molds, materials, and processes. Fully automatic high-speed motor core punching technology, developed over the last 20 years, uses high-precision multi-station progressive dies. This process automates all stages: leveling, feeding, punching, forming, trimming, lamination, and blanking of skewed and rotating cores, with the final core components delivered directly from the die.
High-quality motor cores are typically produced using this specialized process. High-precision metal progressive stamping dies, combined with high-speed, precision automatic stamping machines, and highly skilled, professional motor core production personnel, ensure the highest possible yield of high-quality motor cores.

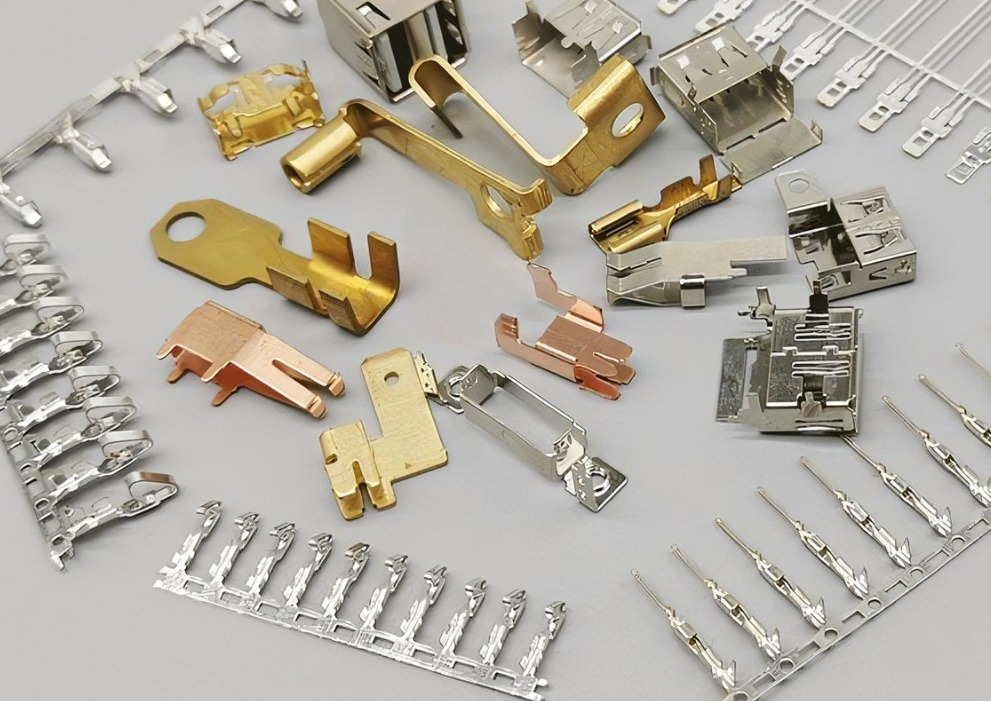

Terminals stamping
With the booming development of industries such as electronics, automotive, and electrical, connectors, cables, wire harnesses, and terminal stamping are becoming key components. Connector performance directly impacts the stability and reliability of electronic equipment, placing high demands on stamping accuracy and efficiency.
The APZ series ultra-precision high-speed punch presses excel in this field. With stroke speeds ranging from 120 to 900 rpm, they significantly improve production efficiency, meeting the needs of large-scale production. Their unique toggle linkage mechanism and rigid body design ensure vibration-free, low-noise operation, maintaining precision within ±0.001mm, ensuring reliable connectors and minimizing failure risks.
The three-round guide high-speed punch press offers precise slider movement and industry-leading dimensional accuracy. Its efficient motor system allows for high-speed punching, improving production efficiency and meeting the electronics industry’s strict requirements for miniaturized, high-precision connectors.
Product Advantages
Drastically Increased Productivity
By operating at speeds up to 800 strokes per minute, our presses can produce parts at a rate that is several times faster than conventional machines. This incredible speed allows you to meet high-volume production demands.
Superior Part Quality and Consistency
The combination of the rigid frame and precision guide system ensures every single part is stamped with remarkable accuracy and repeatability. This eliminates part-to-part variations, resulting in a higher yield of usable components and less scrap.
Optimized Die Life
The stable operation and minimal vibration of our presses reduce the stress and wear on your dies. The precision slide guide prevents off-center loading, which is a major cause of die damage. This translates to fewer die maintenance cycles and a longer overall lifespan for your tooling.
Reduced Operating Costs
Our presses are designed to be highly efficient. The precise servo control system minimizes energy consumption by only using power when needed. The extended die life and high yield of good parts further contribute to lower per-unit production costs.
Company Advantage（Why choose us）
We don't just sell high speed press machine; we provide comprehensive solutions.
Decades of Experience
With over 70 years in the metal forming industry, we bring a wealth of expertise and a proven track record of delivering reliable, high-performance machinery. Our extensive experience ensures we understand your needs and can provide solutions that work.
Superior Manufacturing Quality

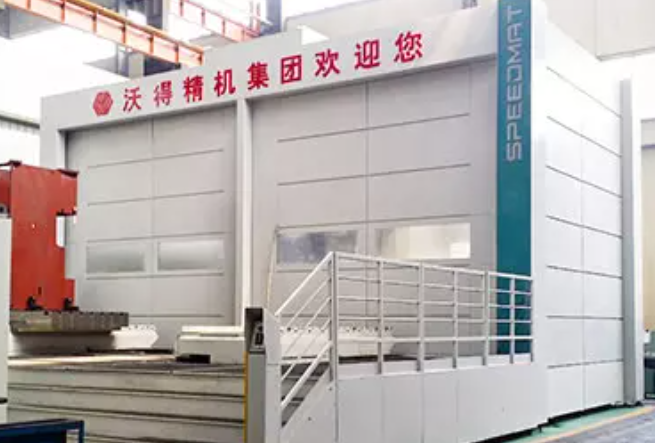

We maintain strict quality control by producing over 80% of our parts in-house. This gives us full oversight of the manufacturing process, ensuring every component meets our rigorous standards for precision and durability.
Efficient and Reliable Service
