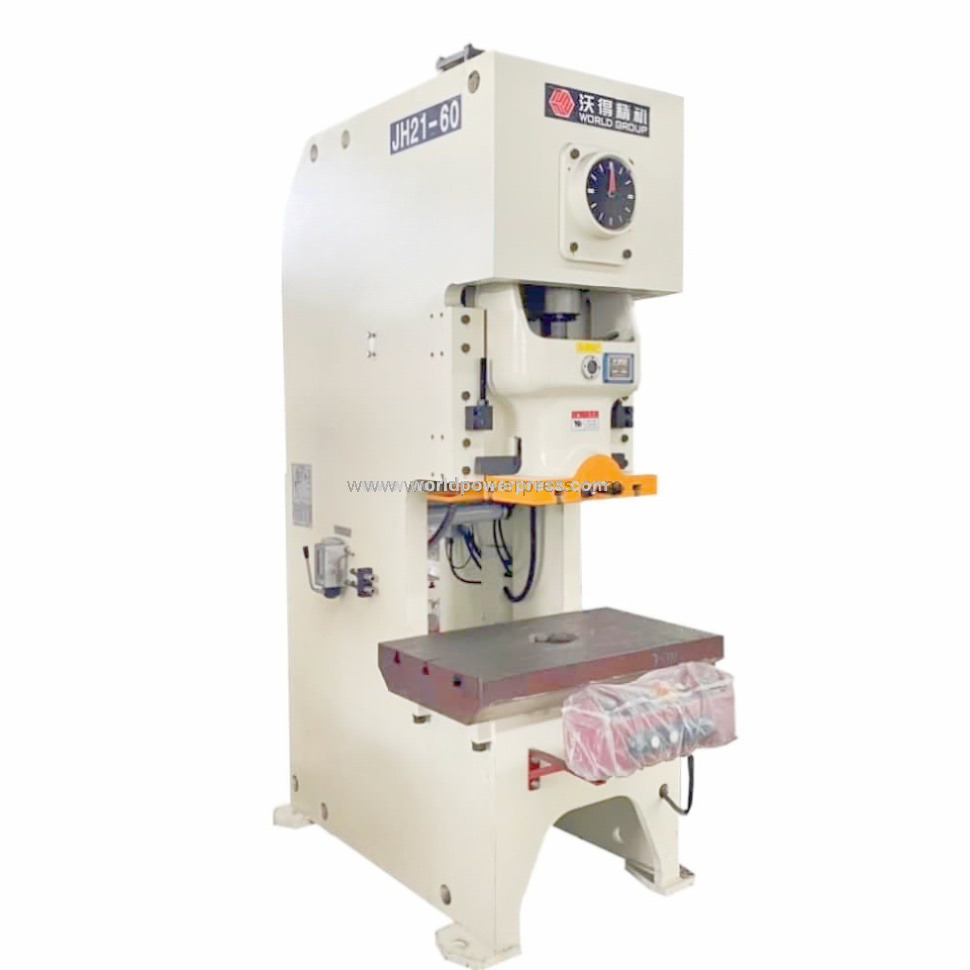

JH21Z-60 is an eccentric press machine for metal parts stamping. This press machine adopts wet type combined pneumatic clutch and brake. Speed could be 145 strokes per minute. The press can work as inches, single stroke and continuous strokes. It is easy to adjust the shut height with the help of brake motor on the ram back. PLC control and HMI with touch screen are convenient for operator to set the press and check the press working status.
-Fast speed 80-145 strokes per minute with stroke length 50mm
-Rated tonnage stroke distance 2.5mm
-C frame steel plate welded body
-Forging crankshaft with bronze bush
-Rectangular type ram guides with bronze plates
-PLC central control, easy operation

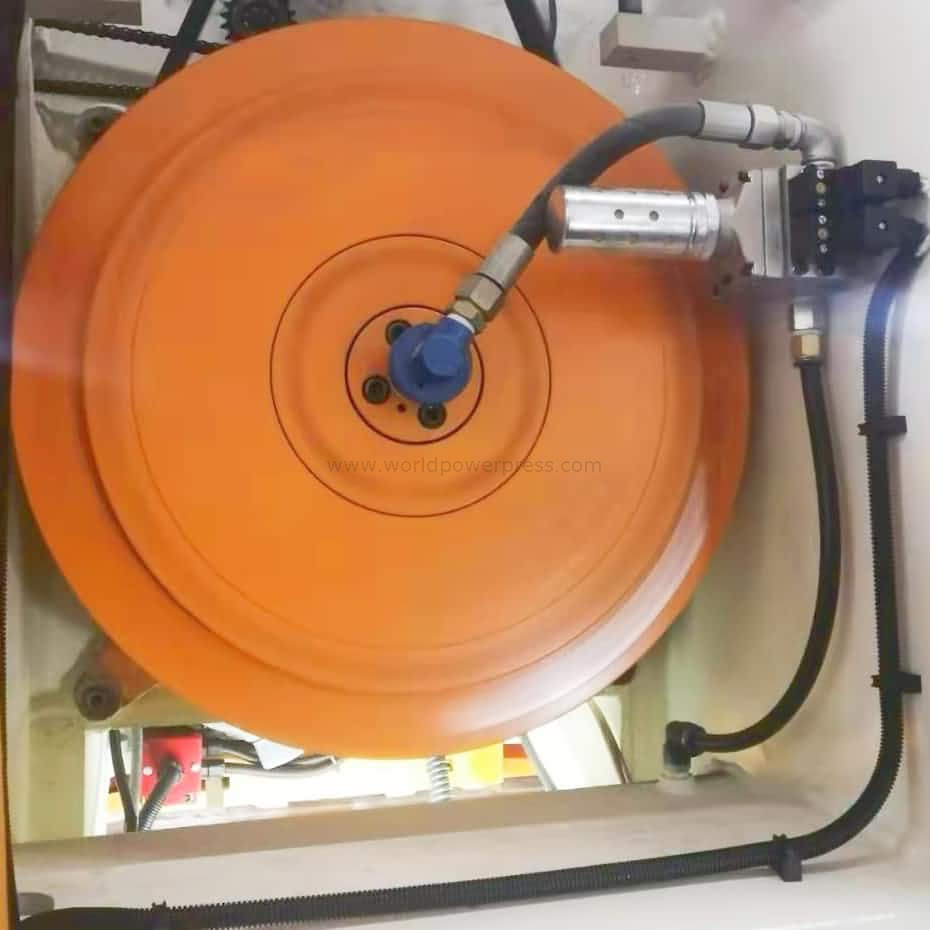

-Wet type clutch and brake, easy maintenance
-Inches, single and continuous working modes
-Hydraulic overload protection
-Two-hand-button control
-Foot pedal control as optional
Main features of 60ton fast speed press
-Fast speed 80-145 strokes per minute with stroke length 50mm
-Rated tonnage stroke distance 2.5mm
-C frame steel plate welded body
-Forging crankshaft with bronze bush
-Rectangular type ram guides with bronze plates
-PLC central control, easy operation
-Wet type clutch and brake, easy maintenance
-Inches, single and continuous working modes
-Hydraulic overload protection
-Two-hand-button control
-Foot pedal control as optional
Model
JH21Z-60
Nominal Capacity
600kN
Rated Tonnage Point
2.5mm
Stroke
50mm
Stroke Speed
80-145 strokes per minute
Max. Die Set Height
260mm
Slide Adjustment
40mm
Throat Depth
210mm
Bolster Size
930x400mm
Slide Area
480mm x 400mm
Motor Power
5.5kW
Dimensions
1540x1200x2385mm
