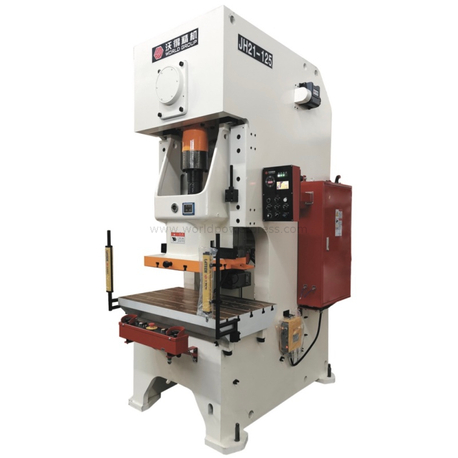

The JH21 C-frame press, as the most widely utilized sheet metal processing solution, is specifically designed for comprehensive operations including stamping, punching, cutting, bending, trimming, and blanking, with available press tonnages ranging from 25 to 400 tons. This single-crank press features a standard configuration comprising a PLC control system, touchscreen HMI interface, wet-type pneumatic clutch and brake mechanism, safety solenoid valve, hydraulic overload protection system, automatic grease lubrication pump, and slide balance cylinders. Optional enhancements include safety light barriers, frequency inverter for adjustable stroke speeds, piston-type die cushion, quick-change die clamps, tonnage monitoring system, and safety die blocks. With the integration of a coil sheet roller feeder, this press can be configured as an automatic production unit, and for full automation, multiple JH21 presses can be integrated with transfer systems such as robotic manipulators to create complete automated press lines.

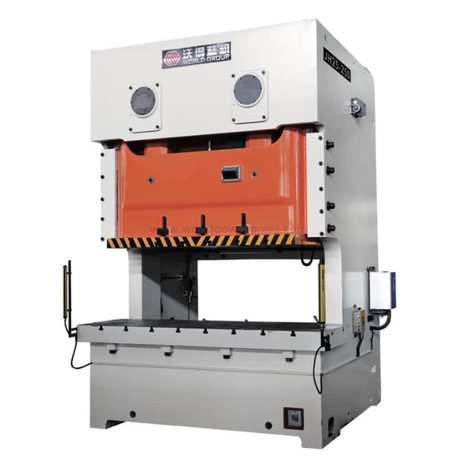

The ‌Gap Frame Double Crank Automatic Press‌ is engineered for high-performance ‌large sheet metal stamping‌ and ‌progressive die stamping‌, with the ‌JH25 series‌ offering a ‌tonnage capacity range from 110 to 315 tons‌. Featuring ‌six-sided rectangular slide guides‌ for precision and stability, a ‌high-torque wet-type pneumatic clutch‌ for smooth operation, and a ‌C-frame steel plate welded construction‌ for enhanced durability, this press incorporates ‌double crankshafts with counter-rotation‌ to effectively cancel lateral forces, ensuring accuracy and longevity. Its ‌oil-bath lubricated transmission gears‌ housed in a sealed gearbox reduce maintenance requirements. Optional automation solutions include ‌decoiler, straightener, roller feeder, and manipulators‌ for seamless material handling and improved efficiency.

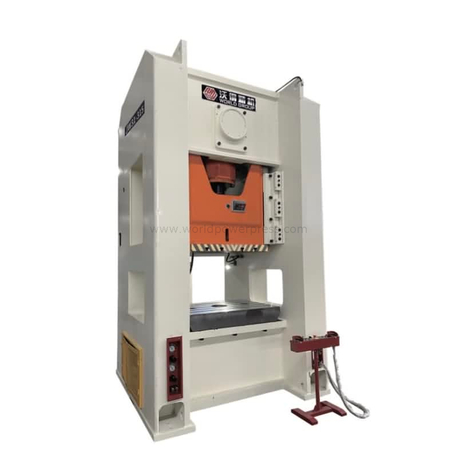

JW31 straight side single crank power press machines have tonnage range from 160ton to 630ton. Straight press is more suitable for metal cutting and blanking process, such as hinge plate cutting. 8 faces slide guides ensure higher precision. H frame body has more strength and rigidness. This press machine is also suitable for aluminum parts cold forging, such as house for electric condensor.

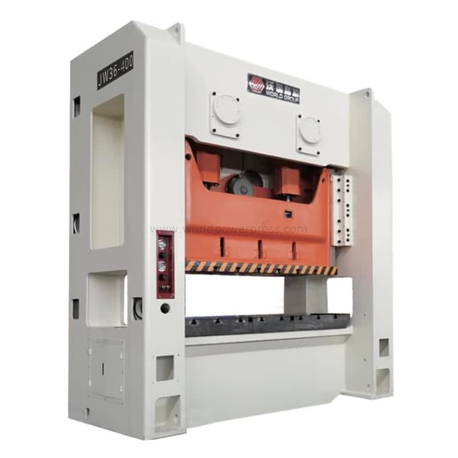

Mono block type JW36 series straight side two points power presses have capacity range from 110ton to 630ton. The press big size working table is suitable for progressive die and multi-station die. This crank type press is widely used for house hold appliance parts stamping, tin can making and kitchen sinks production. severtal units two points automatic power presses can work with coil feeder and transfer bars for full automatic stamping line.

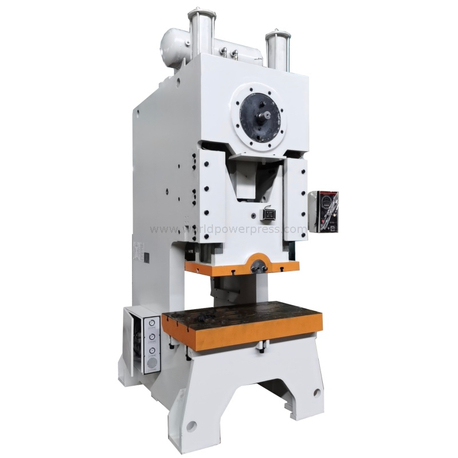

JH21L c frame variable stroke press machine is suitable for one press with different tools. Stroke length is adjustable through the mechanism installed in front of the crankshaft. This stroke adjustable press standard equips with dry type pneumatic clutch, hydraulic overload protection, automatic lubrication system and PLC central control system.

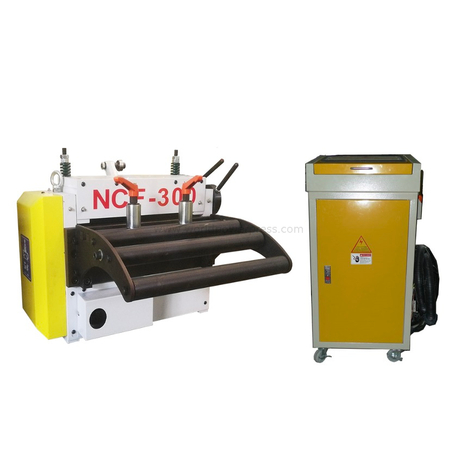

Roll type NC control coil sheet feeding machine with Yaskawa servo motor, suitable for automatic feeding coil sheet thickness less than 4.5mm. Release type can be mechanical or pneumatic, depending on the press type. Feeding speed 20m/min maximum and feeding length can be programed through the HMI screen. Feeding accuracy is 0.03mm.

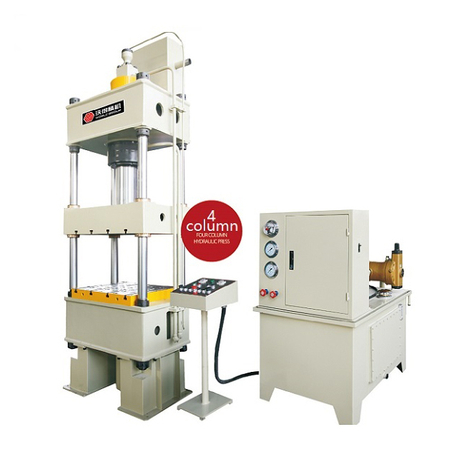

Four column type hydraulic stamping press, suitable for metal parts stamping and deep drawing. Press capacity is from 100ton to 1600ton, table size and open height could be produced according to buyer's request. Ejector cylinder under table and hydraulic die cushion are optional. Air cooling system and servo control system are also available.

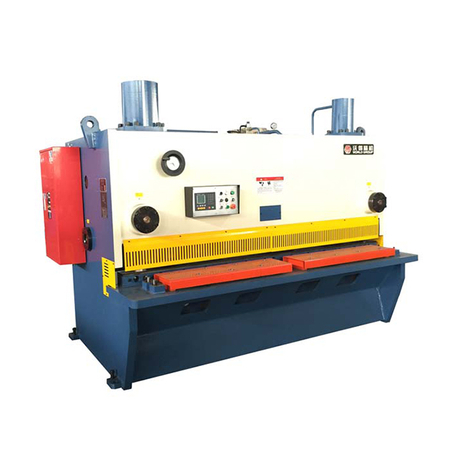

Hydraulic guillotine type shearing machine for sheet metal plate cutting. Standard equip with Estun E21 NC system, motorized back gauge and front support arm. Cutting thickness up to 20mm and cutting width up to 6000mm. Strong steel welded structure with high quality hydraulic system.

Hydraulic sheet metal bending machine, suitable for metal plate bending.

plasma cutting machine with table size 1500x3000mm. China LGK 63A plasma source, independent control cabinet. Automatic torch height controller, Starcam software, 2GB processing file.
