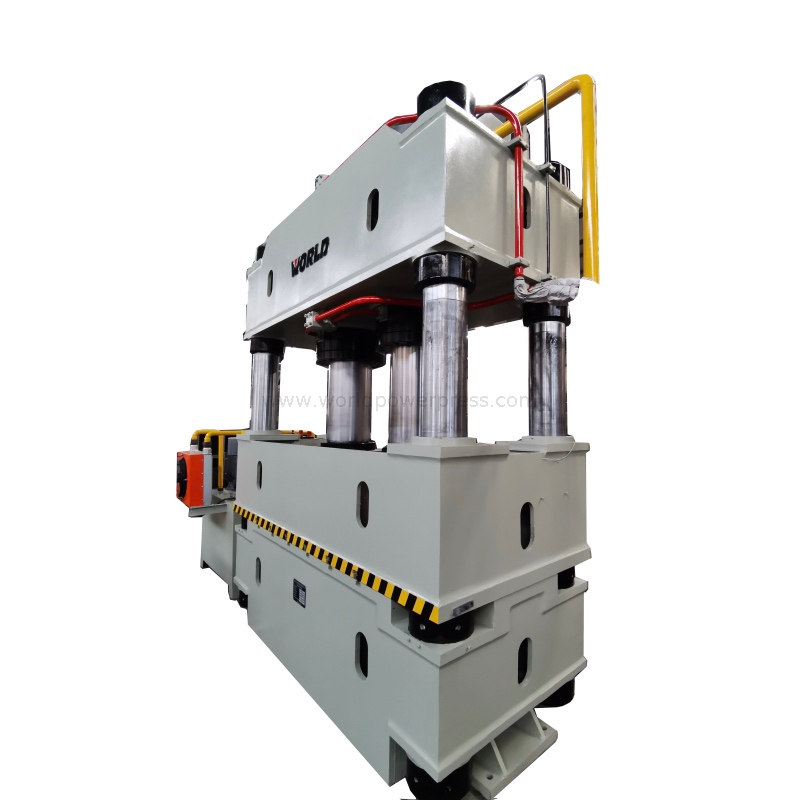

Y32-500
-four column type, easy maintenance
-table size: 1500x1500mm
-safety light barriers: optional
-hydraulic cushion under the table: optional
No. | Parameter | Unit | YW32-500 | |
1 | Nominal Force | kN | 5000 | |
2 | Cushion Capacity | kN | 3000 | |
3 | Max. Hydraulic pressure | MPa | 25 | |
4 | Stroke of slide | mm | 1300 | |
5 | Stroke of cushion | mm | 700 | |
6 | Max. Open height | mm | 1900 | |
7 | Speed of slide | Idle down | mm/s | 200 |
Working | mm/s | 10 | ||
Return | mm/s | 150 | ||
8 | Table/Slide size | L-R | mm | 1500 |
F-B | mm | 1500 | ||
9 | Motor Power | kW | 45 | |
10 | Machine weight with cushion | kg | 37000 | |
-four column type, easy maintenance
-table size: 1500x1500mm
-safety light barriers: optional
-hydraulic cushion under the table: optional
No. | Parameter | Unit | YW32-500 | |
1 | Nominal Force | kN | 5000 | |
2 | Cushion Capacity | kN | 3000 | |
3 | Max. Hydraulic pressure | MPa | 25 | |
4 | Stroke of slide | mm | 1300 | |
5 | Stroke of cushion | mm | 700 | |
6 | Max. Open height | mm | 1900 | |
7 | Speed of slide | Idle down | mm/s | 200 |
Working | mm/s | 10 | ||
Return | mm/s | 150 | ||
8 | Table/Slide size | L-R | mm | 1500 |
F-B | mm | 1500 | ||
9 | Motor Power | kW | 45 | |
10 | Machine weight with cushion | kg | 37000 | |
