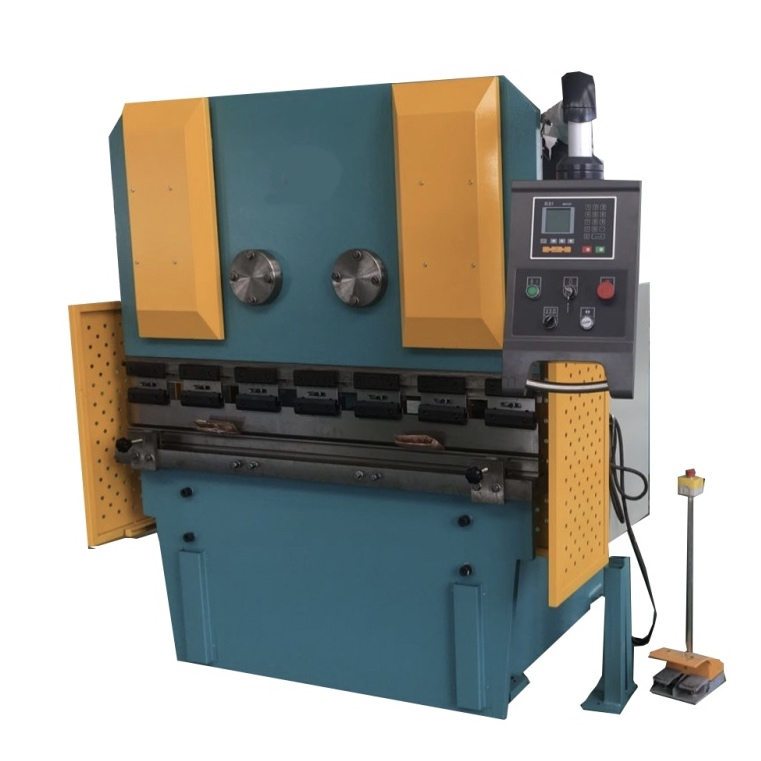

WC67Y-40x2000
-Steel plate welded robust structure
-NC control with LCD displayer
-Rexroth valve
-Sunny hydraulic pump
-Backgauge with ball screw, motor drive
-Bending capacity: 40ton
-Table length: 2000mm
-Bending power source: hydraulic cylinders
-Control system: Estun E21 NC system
1 | Nominal pressure | WC67Y-40T/2000 | |
400KN | |||
2 | Length of working table | 2000mm | |
3 | Throat depth | 200mm | |
4 | Distance between frames | 1550mm | |
5 | Ram stroke | 110mm | |
6 | Open height | 370mm | |
7 | Ram stroke speed | Approach | 120mm/s |
Bending | 8.5mm/s | ||
Return | 90mm/s | ||
8 | Main motor | 5.5KW | |
9 | Dimension | 2500×1400×1900mm | |
- front sheet support arm
- foot pedal with emergency stop button
- side safety fence
- swing arm of control panel
- standard upper punch and lower die
- CNC control system, 3 axis or 4 axis
- Light barriers
- Laser light curtain (3-point type)
- Custom toolings
-Steel plate welded robust structure
-NC control with LCD displayer
-Rexroth valve
-Sunny hydraulic pump
-Backgauge with ball screw, motor drive
-Bending capacity: 40ton
-Table length: 2000mm
-Bending power source: hydraulic cylinders
-Control system: Estun E21 NC system
1 | Nominal pressure | WC67Y-40T/2000 | |
400KN | |||
2 | Length of working table | 2000mm | |
3 | Throat depth | 200mm | |
4 | Distance between frames | 1550mm | |
5 | Ram stroke | 110mm | |
6 | Open height | 370mm | |
7 | Ram stroke speed | Approach | 120mm/s |
Bending | 8.5mm/s | ||
Return | 90mm/s | ||
8 | Main motor | 5.5KW | |
9 | Dimension | 2500×1400×1900mm | |
- front sheet support arm
- foot pedal with emergency stop button
- side safety fence
- swing arm of control panel
- standard upper punch and lower die
- CNC control system, 3 axis or 4 axis
- Light barriers
- Laser light curtain (3-point type)
- Custom toolings
