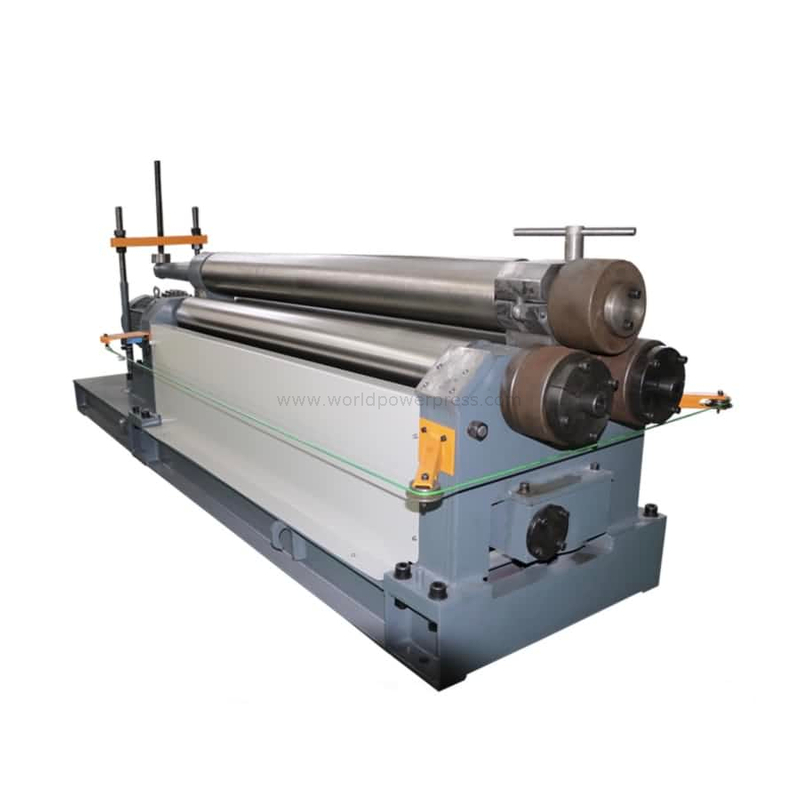

W11-8x2000
| MODEL | Max. Thickness (mm) | Max. Width (mm) | Yielding Limit (mm) | Top Roller Diameter (mm) | Lower Roller Diameter (mm) | Center Distance of Lower Rollers (mm) | Rolling Speed (m/min) | Main Motor Power (kw) | Hydraulic Motor Power (kw) |
| W11-8×2000 | 8 | 2000 | 245 | 200 | 170 | 275 | 4.5 | 5.5 | 3 |
| W11-8×2500 | 8 | 2500 | 245 | 220 | 180 | 300 | 4.5 | 7.5 | 4 |
| W11-8×3200 | 8 | 3200 | 245 | 240 | 180 | 300 | 4.5 | 7.5 | 4 |
| W11-8×4000 | 8 | 4000 | 245 | 270 | 200 | 330 | 4 | 11 | 5.5 |
| W11-8×6000 | 8 | 6000 | 245 | 330 | 235 | 380 | 3.5 | 18.5 | 11 |
| MODEL | Max. Thickness (mm) | Max. Width (mm) | Yielding Limit (mm) | Top Roller Diameter (mm) | Lower Roller Diameter (mm) | Center Distance of Lower Rollers (mm) | Rolling Speed (m/min) | Main Motor Power (kw) | Hydraulic Motor Power (kw) |
| W11-8×2000 | 8 | 2000 | 245 | 200 | 170 | 275 | 4.5 | 5.5 | 3 |
| W11-8×2500 | 8 | 2500 | 245 | 220 | 180 | 300 | 4.5 | 7.5 | 4 |
| W11-8×3200 | 8 | 3200 | 245 | 240 | 180 | 300 | 4.5 | 7.5 | 4 |
| W11-8×4000 | 8 | 4000 | 245 | 270 | 200 | 330 | 4 | 11 | 5.5 |
| W11-8×6000 | 8 | 6000 | 245 | 330 | 235 | 380 | 3.5 | 18.5 | 11 |
