 Eccentric gear transmission with dry clutch of four points gear press.Optimized design of drive system and apperance by Solidwork .Specialized dry type clutch and brake .Four pieces suspensions |

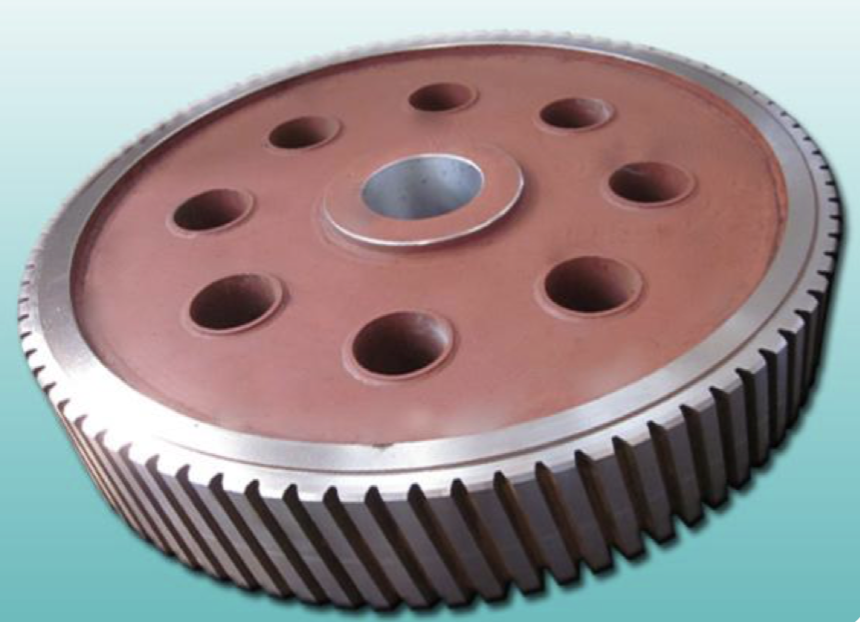

 Welded type gears with higer bending stress Both the middle gear and the side eccentric gear are welded type. The gear ring material is high strength alloy steel. Heat treatment after welding. This design is much better than conventional castiing steel type gear. All gear teeth surfaces are grinded and the transmission efficiency could be bigger than 95%. All conform to JIS-2 standard. |
 Standard equip with front-side movable table All JS39 four points presses are standard equip with front-side movable tables. There are positioning pins in the table and the repeat positioning accuracy could achieve 0.05mm. Movable table lifting and clamping are both through hyraulic cylinders. Standard equip with rails cleaning fingers and monitor sensor for dirty. |
| Parameters | JS39-400 | JS39-500 | JS39-630 | JS39-800 | JS39-1000 | JS39-1250 | JS39-1600 | JS39-2000 | |
| Nominal Capacity | KN | 4000 | 5000 | 6300 | 8000 | 10000 | 12500 | 16000 | 20000 |
| Tonnage Point | mm | 13 | 13 | 13 | 13 | 13 | 13 | 13 | 13 |
| Stroke Length | mm | 600 | 600 | 600 | 800 | 800 | 800 | 700 | 600 |
| Speed | min-1 | 10~16 | 10~16 | 9~14 | 9~14 | 9~14 | 8~12 | 8~12 | 10 |
| Max. Die Shut Height | mm | 1200 | 1200 | 1300 | 1400 | 1400 | 1400 | 1400 | 1400 |
| Shut Height Adjustment | mm | 500 | 500 | 500 | 600 | 600 | 600 | 600 | 600 |
| Bolster Size | mm | 2800*1900 | 3200*1900 | 3500*2000 | 3600*2200 | 3800*2200 | 3800*2200 | 4200*2400 | 4200*2400 |
| mm | 3100*1900 | 3600*1900 | 4000*2000 | 4500*2400 | 4500*2400 | 4500*2400 | 4800*2400 | 4800*2400 | |
| mm | 3400*1900 | 4000*2000 | 4500*2200 | 5000*2400 | 5000*2500 | 5000*2500 | 5500*2500 | 5500*2500 | |
| Slide Plate Size | mm | 2800*1900 | 3200*1900 | 3500*2000 | 3600*2200 | 3800*2200 | 3800*2200 | 4200*2400 | 4200*2400 |
| mm | 3100*1900 | 3600*1900 | 4000*2000 | 4500*2400 | 4500*2400 | 4500*2400 | 4800*2400 | 4800*2400 | |
| mm | 3400*1900 | 4000*2000 | 4500*2200 | 5000*2400 | 5000*2500 | 5000*2500 | 5500*2500 | 5500*2500 |
Eccentric gear transmission with dry clutch of four points gear press.Optimized design of drive system and apperance by Solidwork .Specialized dry type clutch and brake .Four pieces suspensions |
Welded type gears with higer bending stress Both the middle gear and the side eccentric gear are welded type. The gear ring material is high strength alloy steel. Heat treatment after welding. This design is much better than conventional castiing steel type gear. All gear teeth surfaces are grinded and the transmission efficiency could be bigger than 95%. All conform to JIS-2 standard. |
Standard equip with front-side movable table All JS39 four points presses are standard equip with front-side movable tables. There are positioning pins in the table and the repeat positioning accuracy could achieve 0.05mm. Movable table lifting and clamping are both through hyraulic cylinders. Standard equip with rails cleaning fingers and monitor sensor for dirty. |
| Parameters | JS39-400 | JS39-500 | JS39-630 | JS39-800 | JS39-1000 | JS39-1250 | JS39-1600 | JS39-2000 | |
| Nominal Capacity | KN | 4000 | 5000 | 6300 | 8000 | 10000 | 12500 | 16000 | 20000 |
| Tonnage Point | mm | 13 | 13 | 13 | 13 | 13 | 13 | 13 | 13 |
| Stroke Length | mm | 600 | 600 | 600 | 800 | 800 | 800 | 700 | 600 |
| Speed | min-1 | 10~16 | 10~16 | 9~14 | 9~14 | 9~14 | 8~12 | 8~12 | 10 |
| Max. Die Shut Height | mm | 1200 | 1200 | 1300 | 1400 | 1400 | 1400 | 1400 | 1400 |
| Shut Height Adjustment | mm | 500 | 500 | 500 | 600 | 600 | 600 | 600 | 600 |
| Bolster Size | mm | 2800*1900 | 3200*1900 | 3500*2000 | 3600*2200 | 3800*2200 | 3800*2200 | 4200*2400 | 4200*2400 |
| mm | 3100*1900 | 3600*1900 | 4000*2000 | 4500*2400 | 4500*2400 | 4500*2400 | 4800*2400 | 4800*2400 | |
| mm | 3400*1900 | 4000*2000 | 4500*2200 | 5000*2400 | 5000*2500 | 5000*2500 | 5500*2500 | 5500*2500 | |
| Slide Plate Size | mm | 2800*1900 | 3200*1900 | 3500*2000 | 3600*2200 | 3800*2200 | 3800*2200 | 4200*2400 | 4200*2400 |
| mm | 3100*1900 | 3600*1900 | 4000*2000 | 4500*2400 | 4500*2400 | 4500*2400 | 4800*2400 | 4800*2400 | |
| mm | 3400*1900 | 4000*2000 | 4500*2200 | 5000*2400 | 5000*2500 | 5000*2500 | 5500*2500 | 5500*2500 |
