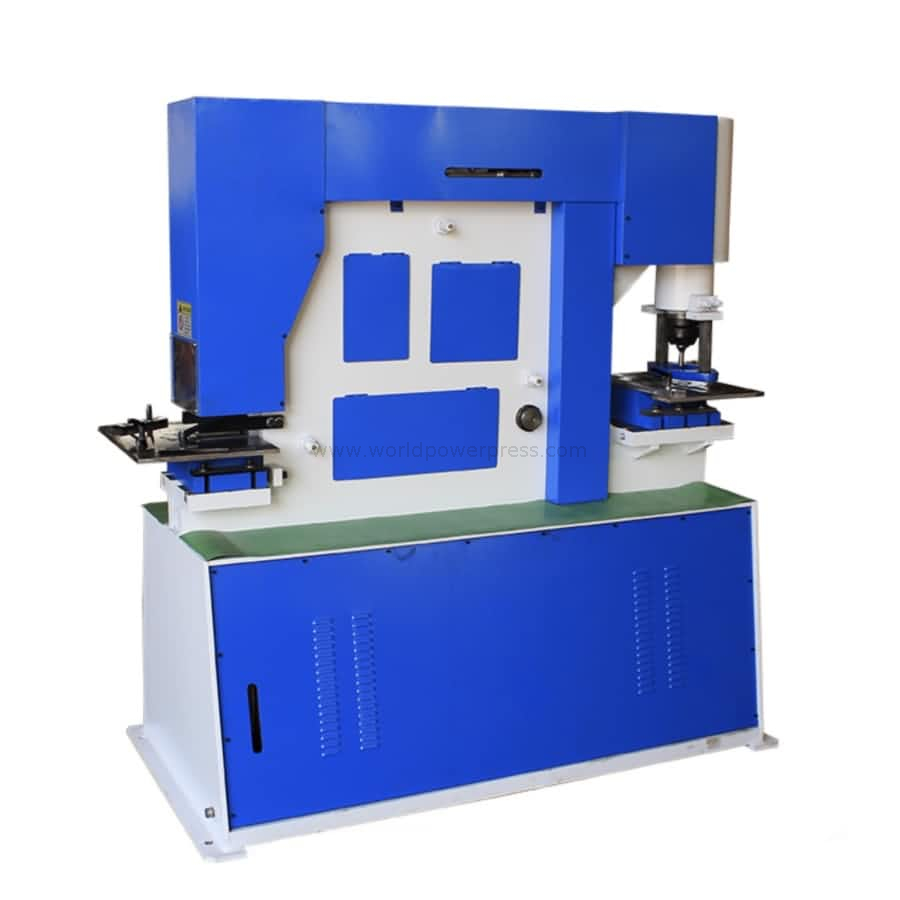

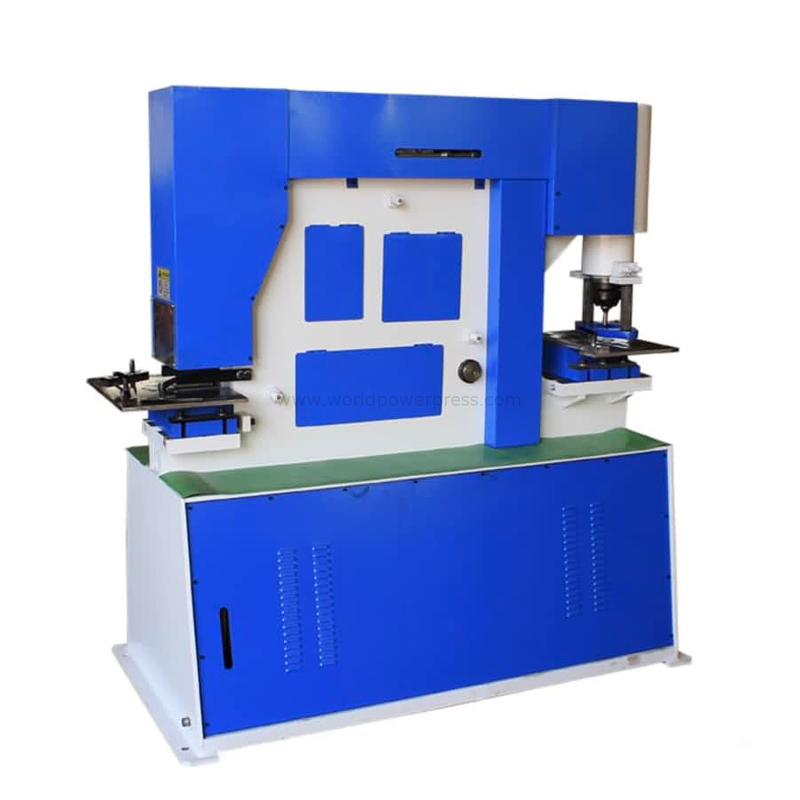

Q35Y-16
-Max. Punching capacity: 60ton
-Max. Punching thickness: 16mm
-Max. Nothcing thickness: 8mm
Model | Q35Y-16 |
Punching pressure(Ton) | 60 |
Max. shearing thickness of steel plates (mm) | 16 |
Strength of steel plates（N/m㎡） | ≤450 |
Angle of shearing | 7° |
Shearing sizes of one stroke (W×H) (mm) | 16×250 |
8×400 | |
Ram stroke（mm） | 80 |
Number of stroke (times/min.) | 8~22 |
Depth of throat（mm） | 300 |
Punching thickness（mm） | 16 |
Max. diameter of punching（mm） | 25 |
Round steel（mm） | 45 |
Square steel（mm） | 40×40 |
90° Shearing of equal-angle steel (mm) | 120×120×12 |
45° Shearing of equal-angle steel (mm) | 70×70×8 |
H-beam（mm） | / |
C-Channel（mm） | 126×53×5.5 |
工-beam（mm） | 126×74×5 |
Main motor power（Kw） | 4 |
Overall dimension （L×W×H）(mm) | 1650x800x1780 |
-Max. Punching capacity: 60ton
-Max. Punching thickness: 16mm
-Max. Nothcing thickness: 8mm
Model | Q35Y-16 |
Punching pressure(Ton) | 60 |
Max. shearing thickness of steel plates (mm) | 16 |
Strength of steel plates（N/m㎡） | ≤450 |
Angle of shearing | 7° |
Shearing sizes of one stroke (W×H) (mm) | 16×250 |
8×400 | |
Ram stroke（mm） | 80 |
Number of stroke (times/min.) | 8~22 |
Depth of throat（mm） | 300 |
Punching thickness（mm） | 16 |
Max. diameter of punching（mm） | 25 |
Round steel（mm） | 45 |
Square steel（mm） | 40×40 |
90° Shearing of equal-angle steel (mm) | 120×120×12 |
45° Shearing of equal-angle steel (mm) | 70×70×8 |
H-beam（mm） | / |
C-Channel（mm） | 126×53×5.5 |
工-beam（mm） | 126×74×5 |
Main motor power（Kw） | 4 |
Overall dimension （L×W×H）(mm) | 1650x800x1780 |
