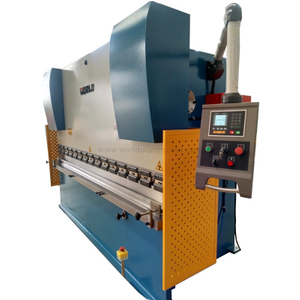

WC67Y
WORLD
-NC control system with LCD screen
-Standard upper punch and lower die
-High rigidity frame, steel welded
-Siemens motor, Sunny pump, Rexroth valve
| Items | unit | WC67Y-80/2500 | WC67Y-80/3200 | WC67Y-80/4000 |
| Nominal pressure | kN | 800 | 800 | 800 |
| Length of table | mm | 2500 | 3200 | 4000 |
| Distance between uprights | mm | 1900 | 2300 | 1900 |
| Throat depth | mm | 320 | 320 | 320 |
| Ram stroke | mm | 120 | 120 | 120 |
| Daylight | mm | 380 | 380 | 380 |
| Approach speed | mm/s | 120 | 110 | 100 |
| Bend speed | mm/s | 10 | 10 | 9 |
| Return speed | mm/s | 100 | 100 | 90 |
| Main motor | kW | 7.5 | 7.5 | 7.5 |
| Length | mm | 2600 | 3400 | 4100 |
| Width | mm | 1400 | 1400 | 1400 |
| Height | mm | 2300 | 2300 | 2300 |
-NC control system with LCD screen
-Standard upper punch and lower die
-High rigidity frame, steel welded
-Siemens motor, Sunny pump, Rexroth valve
| Items | unit | WC67Y-80/2500 | WC67Y-80/3200 | WC67Y-80/4000 |
| Nominal pressure | kN | 800 | 800 | 800 |
| Length of table | mm | 2500 | 3200 | 4000 |
| Distance between uprights | mm | 1900 | 2300 | 1900 |
| Throat depth | mm | 320 | 320 | 320 |
| Ram stroke | mm | 120 | 120 | 120 |
| Daylight | mm | 380 | 380 | 380 |
| Approach speed | mm/s | 120 | 110 | 100 |
| Bend speed | mm/s | 10 | 10 | 9 |
| Return speed | mm/s | 100 | 100 | 90 |
| Main motor | kW | 7.5 | 7.5 | 7.5 |
| Length | mm | 2600 | 3400 | 4100 |
| Width | mm | 1400 | 1400 | 1400 |
| Height | mm | 2300 | 2300 | 2300 |
