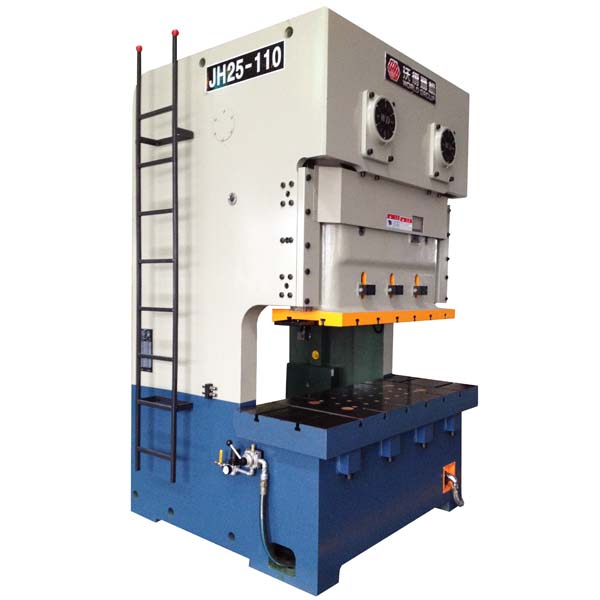

110ton C Frame Double Crank Power Press Machine

JH25-110 is a c frame press machine. Tonnage capacity is 110ton. Double crankshafts ensure bigger size table. So this power press machine is suitable for big sheet stamping. And suitable for progressive die stamping. The press adopts steel plate welded frame and casting iron ram. Wet type clutch is easier for maintenance. Grease pump is for automatic lubrication. Standard configurations include the overload pump and automatic grease pump.

Parameters:

Model: JH25-110

Bolster size: 1880x680mm

Slide plate size: 1400x520mm

Stroke length: 180mm

Stroke speed: 35-60spm

Max. Die shut height: 400mm

Slide adjustment: 90mm

Motor power: 11kw

Standard equipment:

Pneumatic clutch and brake

PLC control

HMI with touch screen in English version

Safety valve for clutch

Overload protection system

Slide adjustment motor with die height indicator

Movable electric cabinet

Hand button control panel with foot pedal

Anti-vibration pads

Slide and upper die counterweight balance cylinder

Optional accessories:

Safety light barriers

Inverter for adjustable stroke speeds

Die cushion

Quick die change device

Automatic coil feeding machines

Manipulator

Tonnage monitor
