NCF-600

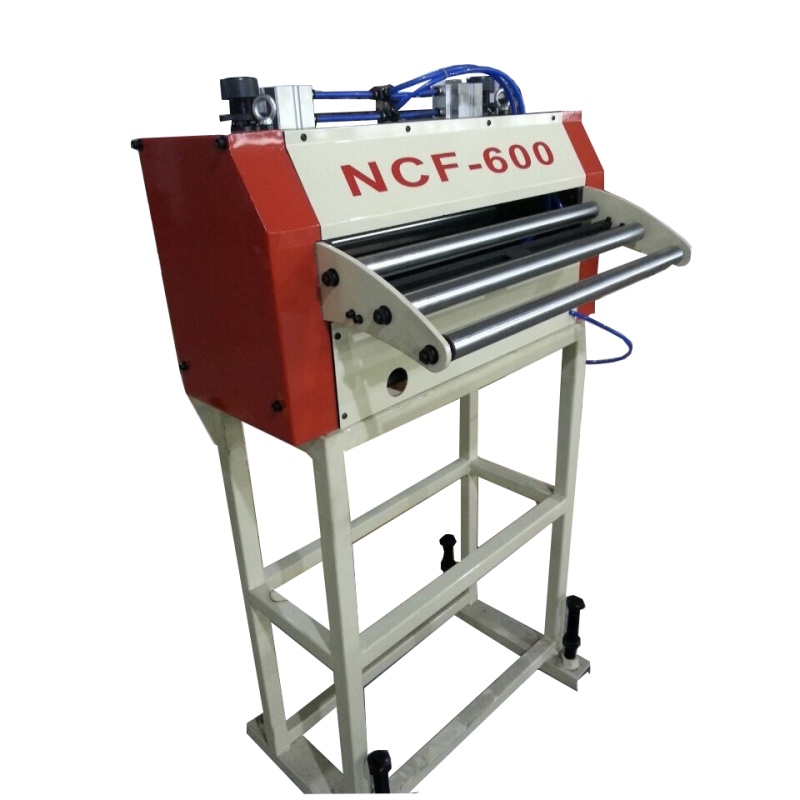

NCF-600 is a servo NC controller roller type coil sheet feeder machine. This feeder machine is suitable to automatic feed 3.5mm thickness 600mm width coil sheet into press punching area. The roller feeder can work with decoiling machine and straightening machine to act as an full automatic feeding line for stamping press line. The height adjustable support bracket is optional for this feeder. HMI is in English and operator can set the feeding pitch, feeding speed and feeding steps through the touch screen.
Model: NCF-600
Feeding thickness: 0.2-3.5mm
Feeding width: 20-600mm
Feeding speed: 20m/min maximum
Servo motor: YASKAWA
PLC: MITSUIBISHI
Roller hardness: HRC60
Custom power voltage (220V/440V/415V)
Support bracket, height 200mm adjustable
Oil lubricate roller
Shipment information:
Package in plywood box
HS Code: 84283920
NCF-600 is a servo NC controller roller type coil sheet feeder machine. This feeder machine is suitable to automatic feed 3.5mm thickness 600mm width coil sheet into press punching area. The roller feeder can work with decoiling machine and straightening machine to act as an full automatic feeding line for stamping press line. The height adjustable support bracket is optional for this feeder. HMI is in English and operator can set the feeding pitch, feeding speed and feeding steps through the touch screen.
Model: NCF-600
Feeding thickness: 0.2-3.5mm
Feeding width: 20-600mm
Feeding speed: 20m/min maximum
Servo motor: YASKAWA
PLC: MITSUIBISHI
Roller hardness: HRC60
Custom power voltage (220V/440V/415V)
Support bracket, height 200mm adjustable
Oil lubricate roller
Shipment information:
Package in plywood box
HS Code: 84283920
