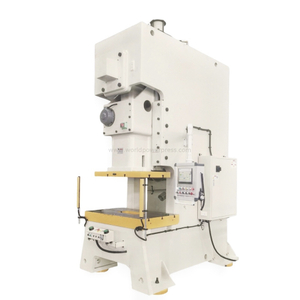

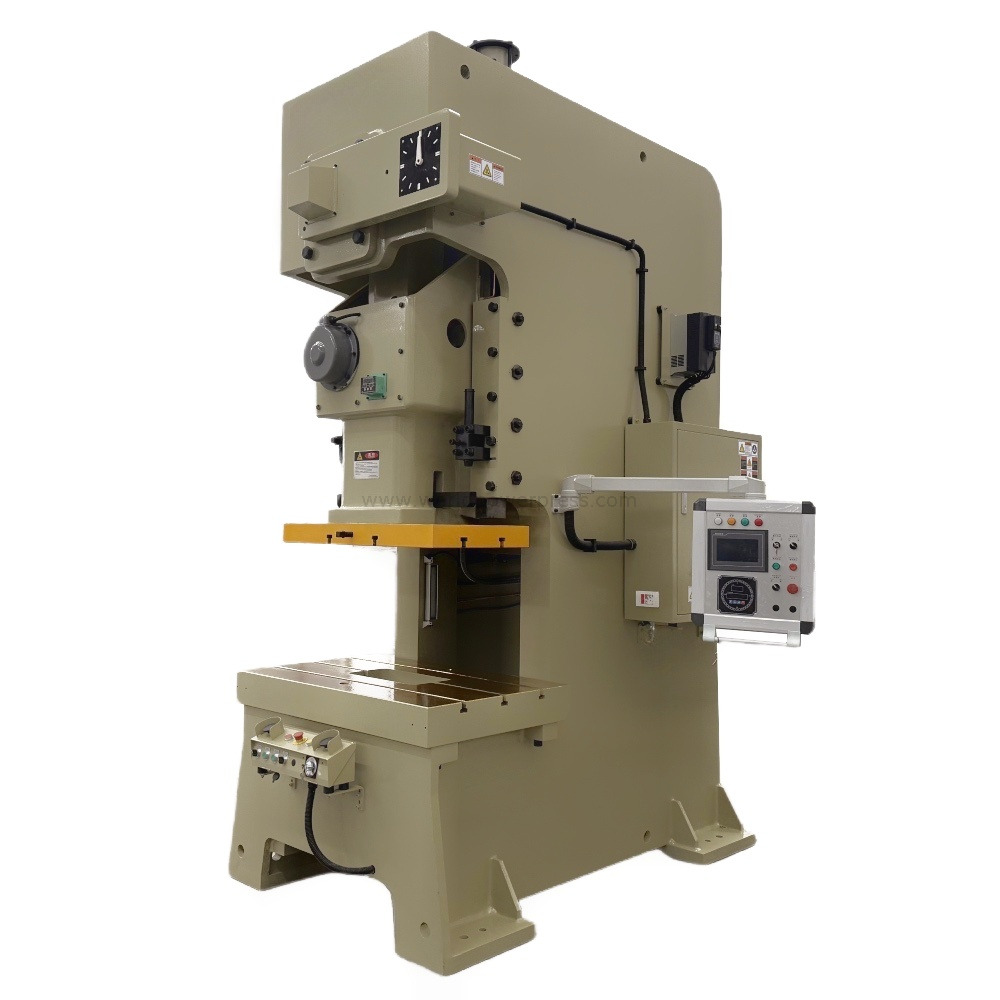

160ton C-type Servo Press Machine with Chinese Servo System

C-frame Servo Press: A Concise Overview

The C-frame servo press is a high-precision industrial press defined by its iconic C-shaped open-frame structure, which enables unobstructed three-sided access for easy workpiece loading and unloading. It integrates a servo motor-driven system with hydraulic or mechanical actuation, delivering exceptional control over force, speed, and position throughout the pressing cycle.

Core Advantages:

1. Precision & Flexibility‌: Equipped with advanced sensors and closed-loop control, it achieves position accuracy up to ±0.01mm and pressure control within ±1%. It supports customizable multi-stage motion profiles to meet complex forming, riveting, or assembly needs.

2. Energy Efficiency‌: Unlike traditional hydraulic presses, the servo motor only consumes power during operation, reducing energy use by 30-70%. It also generates less heat and noise (often below 75dB), improving workplace conditions.

3. Rigidity & Stability‌: The one-piece welded C-frame undergoes stress-relief treatment, ensuring high structural rigidity and resistance to off-center loads. This maintains consistent precision even under heavy-tonnage operations, extending mold lifespan.

4. Smart & Connected‌: Modern models feature PLC control systems with touchscreen interfaces, allowing parameter programming, real-time data monitoring, and quality traceability. Many integrate with IoT platforms for remote diagnostics and predictive maintenance.

Key Applications:

Widely used in automotive, electronics, aerospace, and general manufacturing for tasks like bearing press-fitting, metal stamping, component assembly, and powder forming. Its compact design and operational flexibility make it ideal for both small-batch production and high-volume automated lines.

Standard equipment:

1. PLC


2. Servo Motor (Beijing CTB) and servo drive

3. Planet Reducer

4. Bearing: NSK or similar

5. Overload pump

6. Solenoid valve

Specifications of 160t servo press machine
