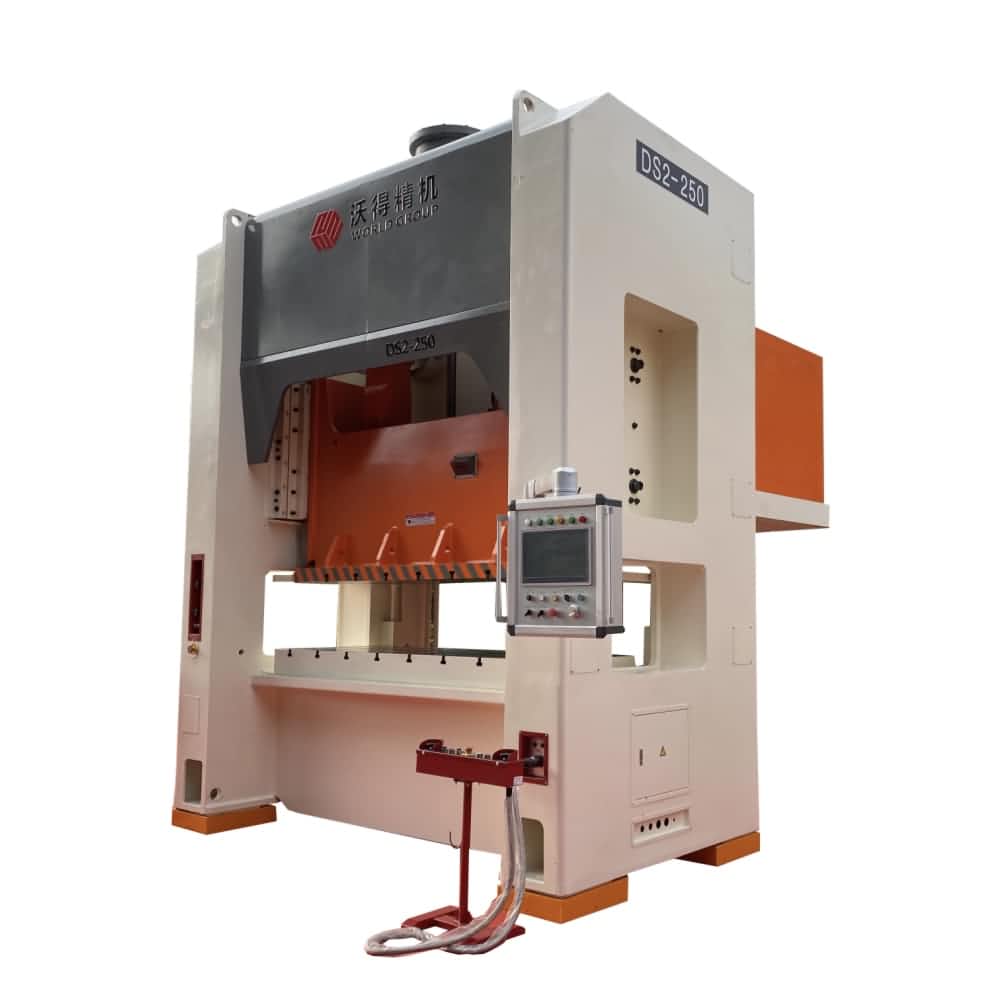

DS2
WORLD
1) H frame steel welded body
2) High quality servo motor and control system
3) Programmable stroke speeds and speed change point
4) Thin oil lubrication system
| ITEM | CODE | UNIT | DS2-160 | DS2-200 | DS2-250 | DS2-315 | DS2-400 | |
| Nominal Capacity | KN | 1600 | 2000 | 2500 | 3150 | 4000 | ||
| Slide Stroke Length | S | mm | 200 | 250 | 280 | 280 | 300 | |
| Rated Tonnage Point | mm | 6 | 7 | 7 | 7 | 8 | ||
| Slide Stroke Speed | Fixed | spm | 45 | 35 | 30 | 30 | 20 | |
| Variable (optional) | spm | 35-55 | 25-40 | 20-35 | 20-35 | 15-25 | ||
| Max. Die Shut Height | H2 | mm | 450 | 500 | 550 | 550 | 600 | |
| Die Shut Height Adjustment | t | mm | 100 | 110 | 120 | 120 | 130 | |
| Side Window Size | F-B | E | mm | 800 | 900 | 950 | 950 | 1000 |
| Height | F | mm | 400 | 450 | 460 | 460 | 550 | |
| Distance Between Uprights | G | mm | 1900 | 2290 | 2570 | 2570 | 2810 | |
| Table Size | F-B | D | mm | 760 | 900 | 1000 | 1000 | 1100 |
| L-R | C | mm | 1800 | 2200 | 2500 | 2500 | 2700 | |
| Thickness | H3 | mm | 150 | 170 | 180 | 190 | 200 | |
| Slide Bottom Size | F-B | b | mm | 700 | 800 | 900 | 900 | 1000 |
| L-R | a | mm | 1500 | 1900 | 2200 | 2200 | 2400 | |
| Table Surface Height | H1 | mm | 1035 | 1135 | 1235 | 1285 | 1340 | |
| Overall Dimensions | F-B | A | mm | 2300 | 2550 | 2650 | 2750 | 3250 |
| L-R | B | mm | 2700 | 3200 | 3600 | 3600 | 3850 | |
| Height | H | mm | 4000 | 4400 | 4800 | 4900 | 5600 | |
1) H frame steel welded body
2) High quality servo motor and control system
3) Programmable stroke speeds and speed change point
4) Thin oil lubrication system
| ITEM | CODE | UNIT | DS2-160 | DS2-200 | DS2-250 | DS2-315 | DS2-400 | |
| Nominal Capacity | KN | 1600 | 2000 | 2500 | 3150 | 4000 | ||
| Slide Stroke Length | S | mm | 200 | 250 | 280 | 280 | 300 | |
| Rated Tonnage Point | mm | 6 | 7 | 7 | 7 | 8 | ||
| Slide Stroke Speed | Fixed | spm | 45 | 35 | 30 | 30 | 20 | |
| Variable (optional) | spm | 35-55 | 25-40 | 20-35 | 20-35 | 15-25 | ||
| Max. Die Shut Height | H2 | mm | 450 | 500 | 550 | 550 | 600 | |
| Die Shut Height Adjustment | t | mm | 100 | 110 | 120 | 120 | 130 | |
| Side Window Size | F-B | E | mm | 800 | 900 | 950 | 950 | 1000 |
| Height | F | mm | 400 | 450 | 460 | 460 | 550 | |
| Distance Between Uprights | G | mm | 1900 | 2290 | 2570 | 2570 | 2810 | |
| Table Size | F-B | D | mm | 760 | 900 | 1000 | 1000 | 1100 |
| L-R | C | mm | 1800 | 2200 | 2500 | 2500 | 2700 | |
| Thickness | H3 | mm | 150 | 170 | 180 | 190 | 200 | |
| Slide Bottom Size | F-B | b | mm | 700 | 800 | 900 | 900 | 1000 |
| L-R | a | mm | 1500 | 1900 | 2200 | 2200 | 2400 | |
| Table Surface Height | H1 | mm | 1035 | 1135 | 1235 | 1285 | 1340 | |
| Overall Dimensions | F-B | A | mm | 2300 | 2550 | 2650 | 2750 | 3250 |
| L-R | B | mm | 2700 | 3200 | 3600 | 3600 | 3850 | |
| Height | H | mm | 4000 | 4400 | 4800 | 4900 | 5600 | |
