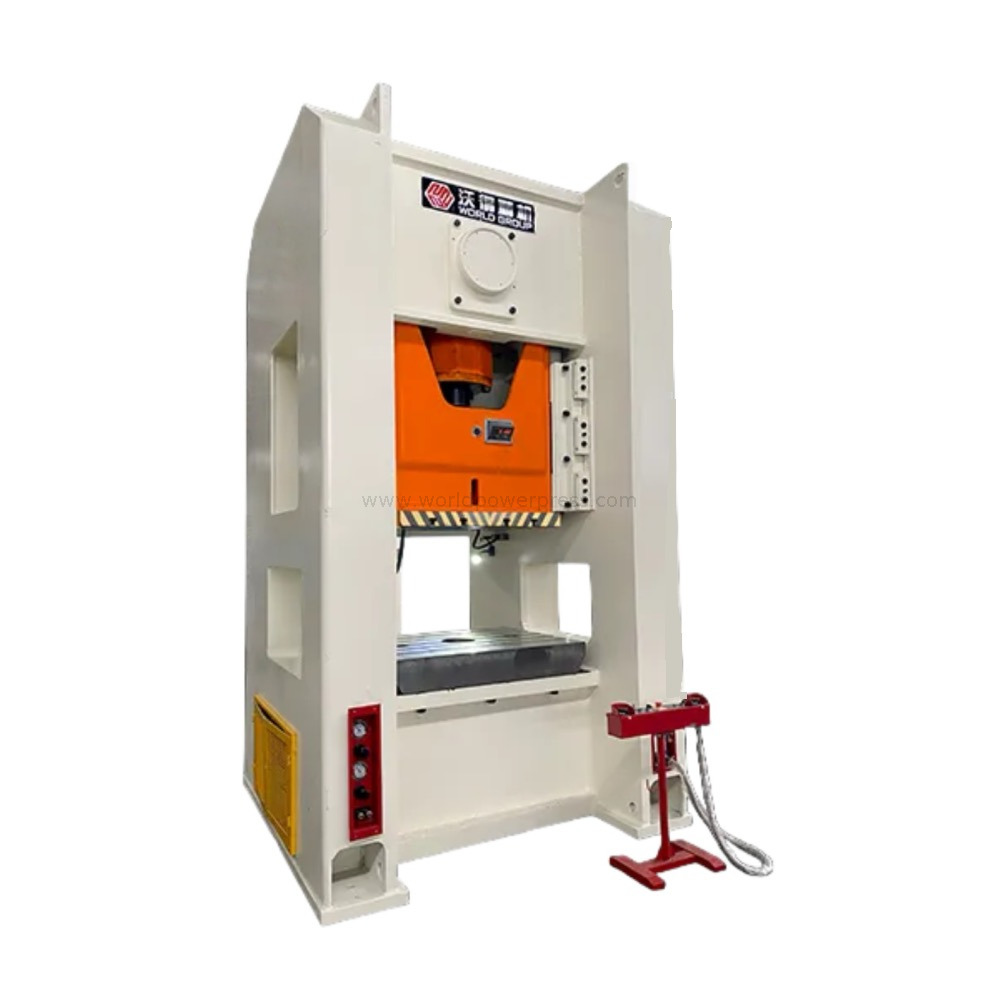

200ton Crank Type H Frame Blanking Press

JW31-200 is a crank type h frame press with 200ton tonnage capacity. The crankshaft is cross located. And the press appearance looks more compact. A wet type clutch-brake is installed on the back, together with a reliable solenoid valve. Eight faces slider guides ensure higher stamping precision. This type h frame press also adopts for hot forging, not only for metal parts stamping.

Parameters:

Model No.: JW31-200

Press nominal capacity: 200ton

Stroke length: 200mm

Stroke speeds: 45spm fixed as standard, and 35-55spm variable as optional

Max. Shut height: 450mm

Slider adjustment range: 110mm

Working bolster size: 1100x750mm

Slider bottom size: 850x700mm

Main motor power: 18.5kw

Standard equipment:

PLC control (Omron/Mitsubishi/Siemens)

Pneumatic clutch and brake (made by world)

Safety solenoid valve for clutch

Counter weight balance cylinder for slide

Slide height adjust motor with die heitght digital indicator

Two-hand-button control panel with foot pedal

Movable electric cabinet

Central grease lubricate system

Anti-vibration pads

Optional accessories:

Safety light barriers

Frequency inverter for adjustable stroke speeds

Die cushion

Die quick change device

Servo roll feeder

Decoiler straightener

Tonnage monitor
