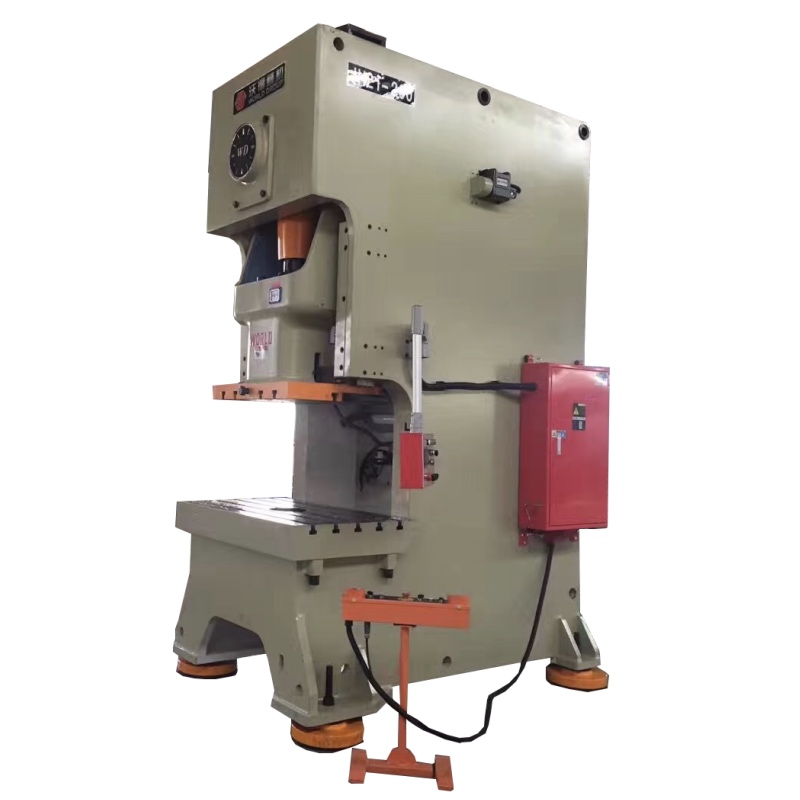

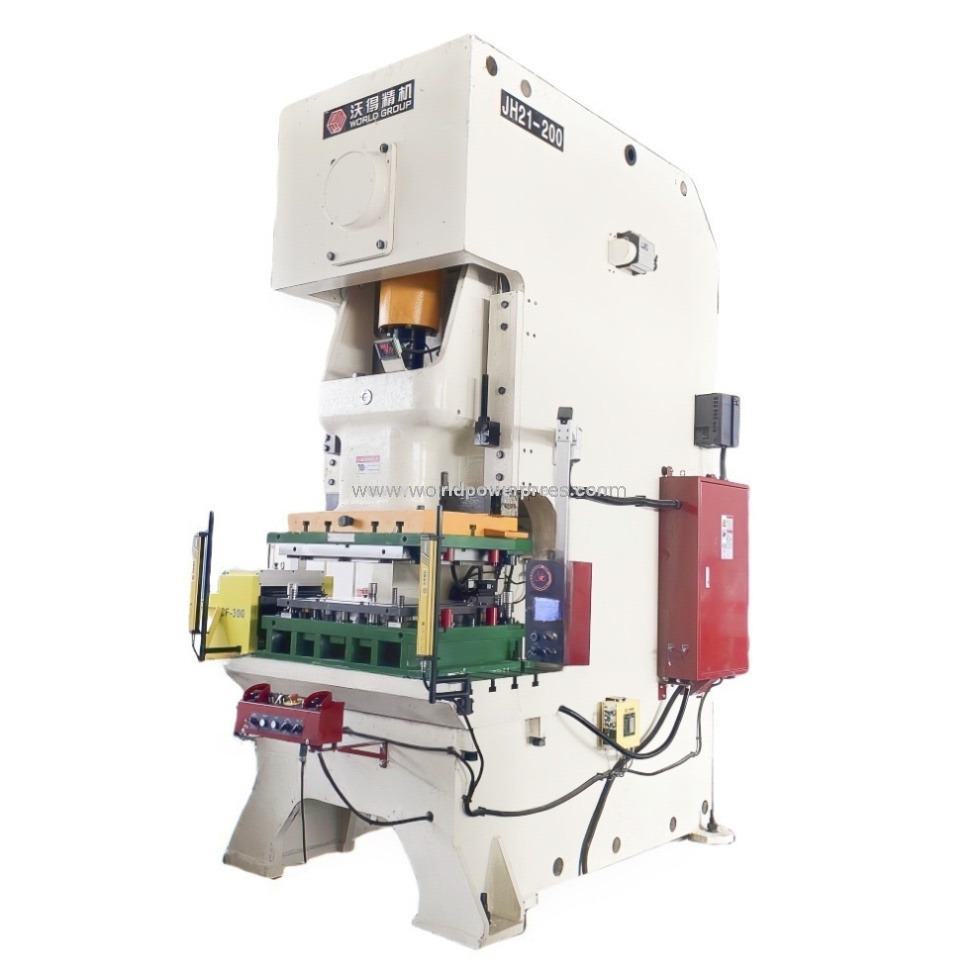

200ton C Type Mechanical Power Press with Pneumatic Clutch

JH21-200 is a 200ton c type mechanical power press with wet type pneumatic clutch. Dual-safety solenoid valve is equipped to control the clutch. This 200ton power press adopts a rigid steel welded body and casting ram. Ram is adjustable by the brake motor for easy shut height adjustment. Standard configurations include famous brand PLC, hydraulic overload protection pump, automatic grease lubrication pump, HMI with touch screen, anti-vibration mounting pads and electric cam controller.

Power press model: JH21-200

Press tonnage capacity: 2000kN (200ton)

Stroke length: 200mm

Stroke speed: 45spm as standard, 30-55spm as optional if with the variable speed motor drive

Max. Die shut height: 450mm

Slide adjustment: 110mm

Working bolster size: 1390x840mm

Slider size: 880x650mm

Motor power: 18.5kw

Standard equipment:

-PLC control (Omron/Delta/Schneider)

-HMI with touch screen (English language version)

-Motorized slide height adjustment device with indicator

-Pneumatic clutch and brake (made by world)

-Dual-safety solenoid valve for clutch (Toyooki/World)

-Overload protection system

-Automatic grease lubrication system

-Anti-vibration pads

-Hand button control with foot pedal

-Cam controller with encoder

Optional accessories:

-safety light barriers

-varaible speed motor drive

-die cushion

-servo roll feeder

-decoiler

-flywheel brake
