JW31-250
WORLD

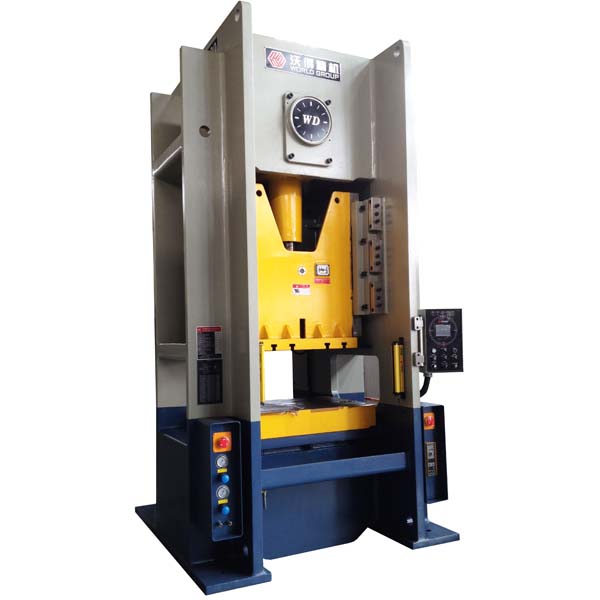

World brand JW31-250 is a straight side press with pneumatic clutch. The press slider is moving in the center of frame. The 8 faces slider guides provide higher accuracy. Press control system includes famous brand PLC, electric and mechanical cam controllers. Operator can set the lubrication frequency and cam angles through the touch screen on interface.
Model number: JW31-250
Tonnage: 250ton
Stroke: 220mm
Speed: 20-35 times per minute
Die shut height: 500mm
Slider adjustment: 120mm
Bolster size: 1200x800mm
Ram plate size: 950x750mm
Side openning size: 800x430mm
Motor power: 22kw
Press approximate weight: 26ton
World brand JW31-250 is a straight side press with pneumatic clutch. The press slider is moving in the center of frame. The 8 faces slider guides provide higher accuracy. Press control system includes famous brand PLC, electric and mechanical cam controllers. Operator can set the lubrication frequency and cam angles through the touch screen on interface.
Model number: JW31-250
Tonnage: 250ton
Stroke: 220mm
Speed: 20-35 times per minute
Die shut height: 500mm
Slider adjustment: 120mm
Bolster size: 1200x800mm
Ram plate size: 950x750mm
Side openning size: 800x430mm
Motor power: 22kw
Press approximate weight: 26ton
