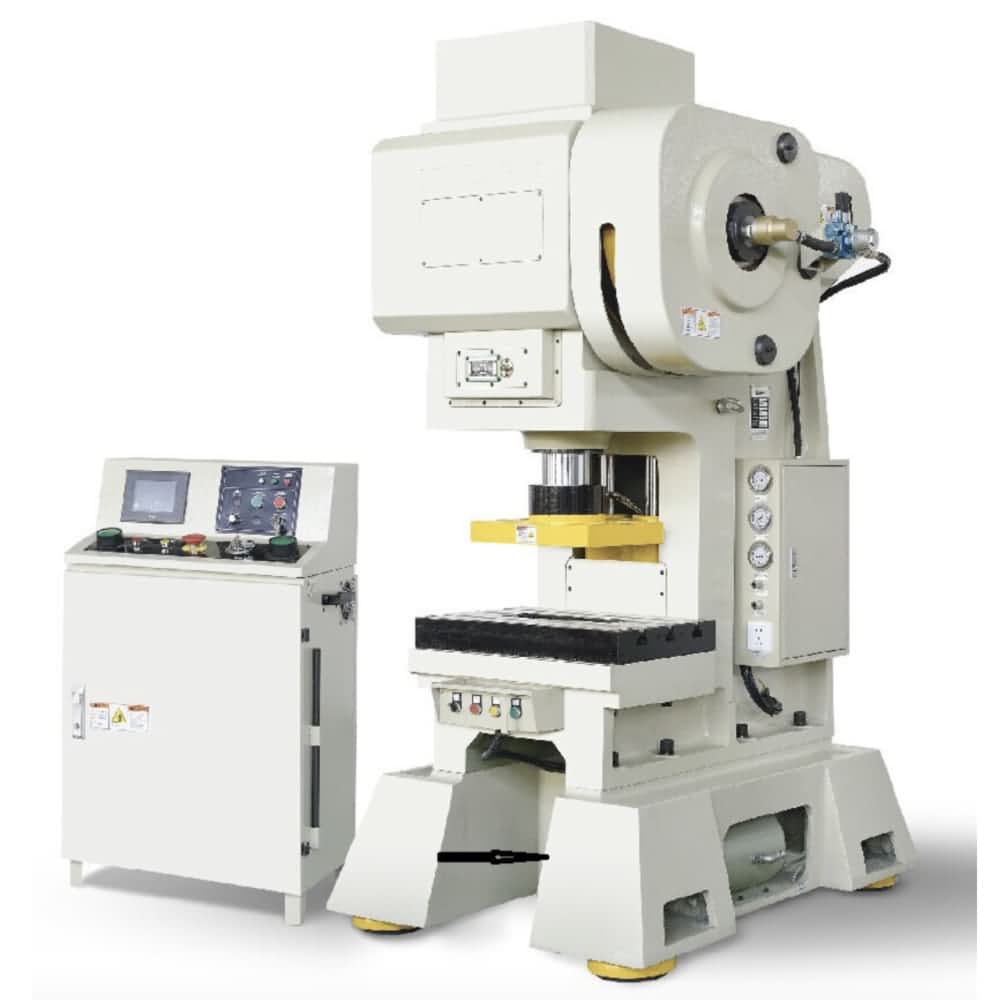

30ton c frame high speed press

C frame high speed press, capacity 30ton, steel welded body, with inverter, with dry type pneumatic clutch. Speed 200-900 strokes per minute. Thin oil lubrication system.

Model: JH21-30G

Stroke length: 20mm

Speed: 200-700spm (200-900spm, with optional dynamic balance device)

Die height: 215mm

Bolster size: 600x330mm

Slide area: 330x250mm

Motor power: 4kw

Press weight: 2800kg
