JH21-80L

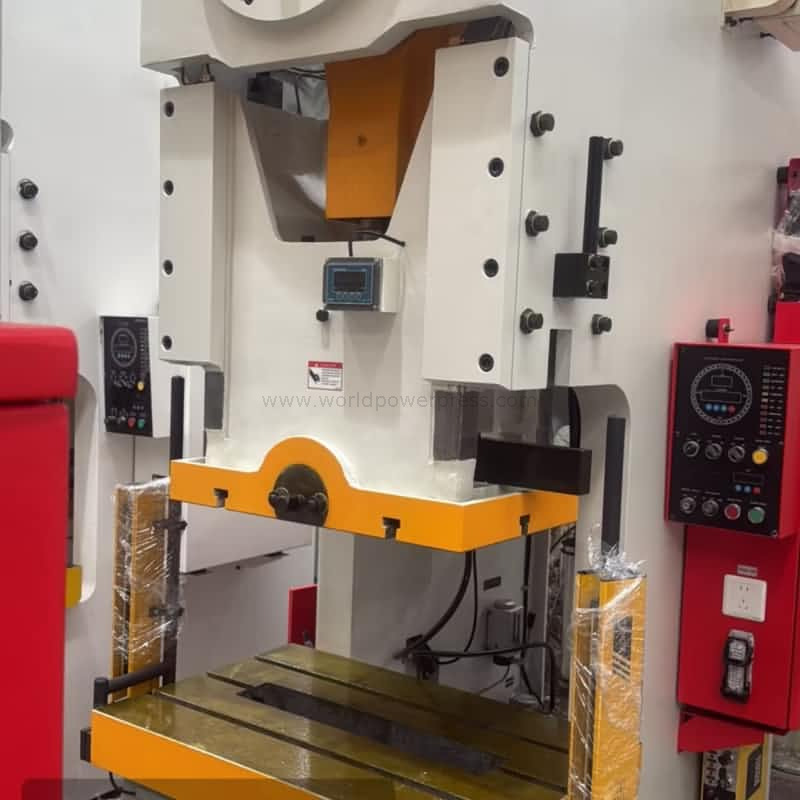

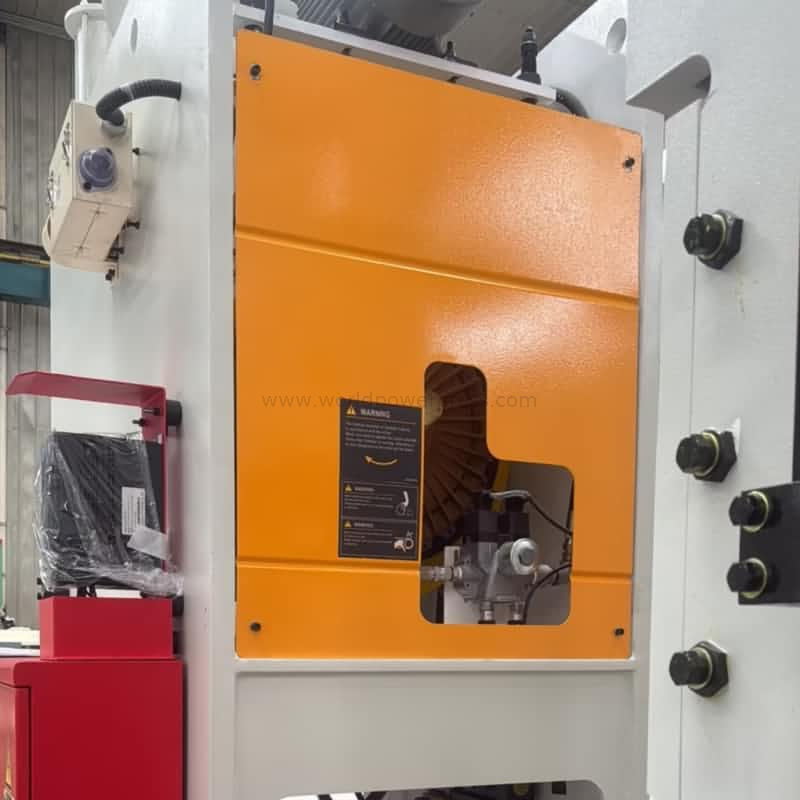

80ton c frame stroke adjustable press, with stroke length 10-150mm adjustable, suitable for different dies stamping. This c frame press adopts dry type clutch. Standard equip with hydraulic overload protection system. The adjustable stroke press has a thin oil circulation lubrication system. There is an eccentric bush system combined with the crankshaft. This system ensures the stroke length adjustable function.
Main Specifications:
Model: JH21-80L
Rated tonnage point: 5mm
Stroke length adjustable range: 10-150mm
Max. Die shut height: 320mm
Bolster size: 1000x580mm
Slide bottom size: 710x440mm
Motor power: 7.5kw
80ton c frame stroke adjustable press, with stroke length 10-150mm adjustable, suitable for different dies stamping. This c frame press adopts dry type clutch. Standard equip with hydraulic overload protection system. The adjustable stroke press has a thin oil circulation lubrication system. There is an eccentric bush system combined with the crankshaft. This system ensures the stroke length adjustable function.
Main Specifications:
Model: JH21-80L
Rated tonnage point: 5mm
Stroke length adjustable range: 10-150mm
Max. Die shut height: 320mm
Bolster size: 1000x580mm
Slide bottom size: 710x440mm
Motor power: 7.5kw
