What are the characteristics of the use of uncoiler feeder?

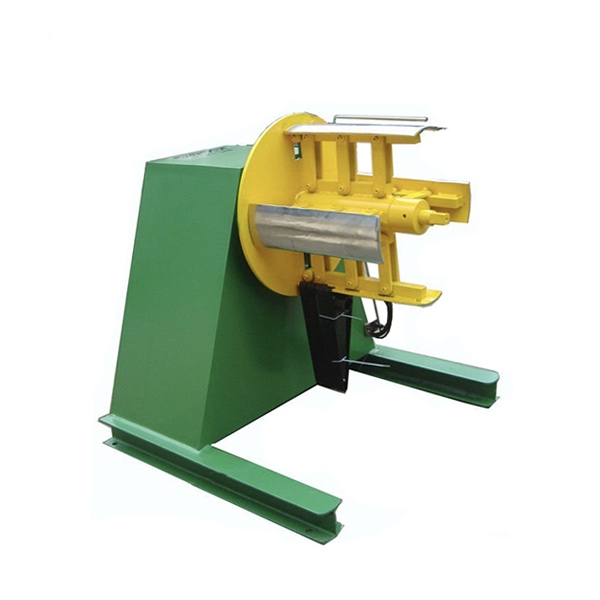

The uncoiler feeder has a simple structure. The heavy-duty standard material frame is composed of a frame, material rack, tiles, motor, reducer, electric box, etc. The overall structure is compact, the floor space is small, and it can pass reasonable wiring and a reasonable number of equipment. Further improve production efficiency.

• What is the workflow of the uncoiler feeder?

• What are the characteristics of the use of uncoiler feeder?

• What should be paid attention to during the use of uncoiler feeder?

What is the workflow of the uncoiler feeder?

Before stamping, the metal coil needs to be uncoiled by the uncoiler feeder before it can be fed to the punch press with the feeder for stamping. So how does the uncoiler work? First of all, the speed of the standard equipment is fixed at 15m/min. After the operator places the coil material on the material rack, turn on the power, turn on the automatic and forward rotation knob to start working, and the material will be uncoiled with the rotation of the material rack. When the uncoiled length of the material reaches the stamping condition, it stops. The start and stop of the material rack is controlled by the induction rack at the front end of the material rack.

What are the characteristics of the use of uncoiler feeder?

In some enterprises, parameters such as load capacity, material width, thickness, inner and outer diameter, and uncoiling speed of the standard uncoiler feeder cannot meet their uncoiler needs, and can be customized according to customer needs.

Customized items:

1. The maximum width of the uncoiler feeder can be customized to 1800mm.

2. The maximum loading capacity can be customized to 30T.

3. A pressing arm device can be installed to prevent the material from loosening.

4. A frequency converter can be installed to adjust the speed.

5. A feeding trolley can be added to achieve the purpose of automatic feeding.

6. A tension frame can be added for winding of stamped finished products.

7. It is also possible to add supporting arms of material racks, material racks, etc.

uncoiler feeder, as an important part of the stamping process, is favored by major companies for its advantages of convenient operation, safety and reliability, durability, and high cost performance. Cooperate with the punching machine to form a complete automatic production line.

What should be paid attention to during the use of uncoiler feeder?

1. Mold positioning problem. In the feeding process, in order to meet the requirements of use accuracy, it is generally required to set positioning pins in the mold. If the material deviates during the feeding process, it is likely that the positioning pins of the mold are not well done, and the positioning pins need to be repositioned.

2. The quality problem of the coil itself will lead to inaccurate feeding. If the coil has severe burrs, bends, unevenness, or different widths, it is easy to cause material deviation during the feeding process, so it is necessary to replace the coil that meets the standard.
