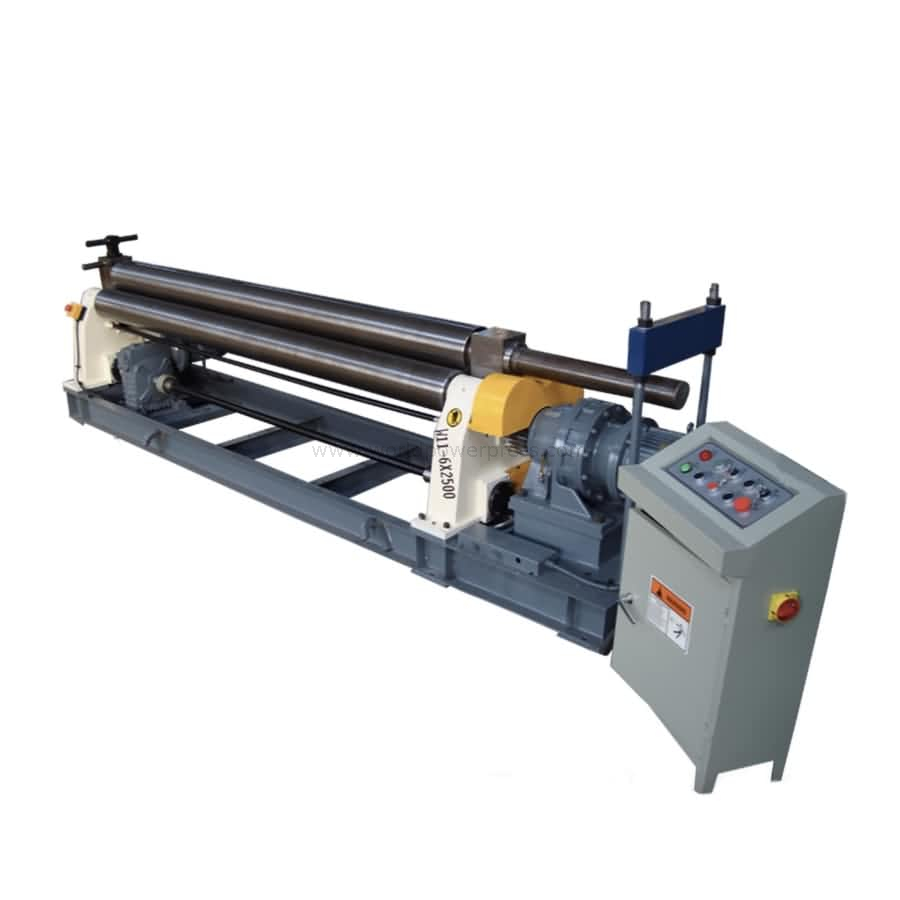

W11-8x6000
| MODEL | Max. Thickness (mm) | Max. Width (mm) | Yielding Limit (mm) | Top Roller Diameter (mm) | Lower Roller Diameter (mm) | Center Distance of Lower Rollers (mm) | Rolling Speed (m/min) | Main Motor Power (kw) | Hydraulic Motor Power (kw) |
| W11-8×4000 | 8 | 4000 | 245 | 270 | 200 | 330 | 4 | 11 | 5.5 |
| W11-8×6000 | 8 | 6000 | 245 | 330 | 235 | 380 | 3.5 | 18.5 | 11 |
| MODEL | Max. Thickness (mm) | Max. Width (mm) | Yielding Limit (mm) | Top Roller Diameter (mm) | Lower Roller Diameter (mm) | Center Distance of Lower Rollers (mm) | Rolling Speed (m/min) | Main Motor Power (kw) | Hydraulic Motor Power (kw) |
| W11-8×4000 | 8 | 4000 | 245 | 270 | 200 | 330 | 4 | 11 | 5.5 |
| W11-8×6000 | 8 | 6000 | 245 | 330 | 235 | 380 | 3.5 | 18.5 | 11 |
