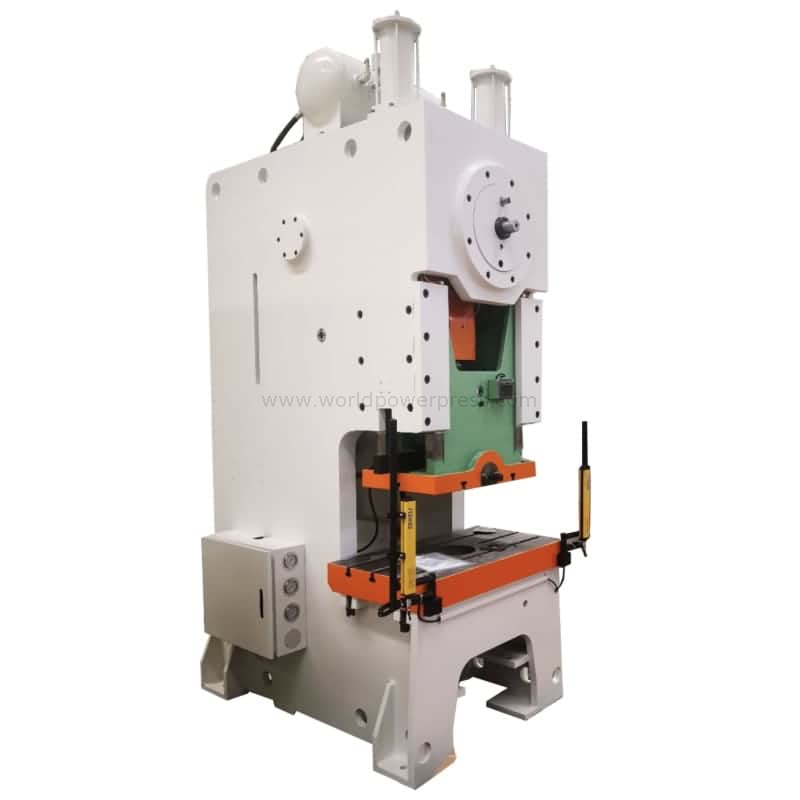

JH21-80L
-variable stroke length: 10mm/40mm/75mm/106mm/130mm/145mm/150mm
-dry type combined pneumatic clutch and brake, easy for maintenance
-PLC control with electric cam controller
-8 face slide guide ways, high precision
-PLC control (Delta/Mitsubishi)
-Pneumatic clutch and brake (OMPI)
-Overload protection pump (Showa/King Air/Auto power)
-Safety solenoid valve for clutch (Azbil)
-Thin oil lubricate pump
-Two-hand-button control panel with foot pedal
-Anti-vibration pads
-Inverter for adjustable stroke speeds
-Front side safety light barriers
-Slide counterweight balance cylinder
-Slide height adjust motor with height indicator
-Cam controller
-Die cushion
-Hydraulic die clamps, die lifters
-Physical safety fence
-Uncoiler
-Servo feeder
| JH21-80L | ||||
| Capacity | kN | 800 | ||
| Nominal Stroke | mm | 5 | ||
| Slide Stroke | mm | 10-150 | ||
| SPM | Fixed | min-1 | 60 | |
| Variable | min-1 | 50-70 | ||
| Max. Die Height | mm | 320 | ||
| Die Height Adjustment | mm | 80 | ||
| Throat Depth | mm | 300 | ||
| Between Columns | mm | 640 | ||
| Bolster | LR | mm | 1000 | |
| FB | mm | 580 | ||
| Thk | mm | 120 | ||
| Bolster Opening | mm | φ200×40 | ||
| (Up Hole Dia.×Dpth×Low Hole Dia.) | ×φ180 | |||
| Slide Area | LR | mm | 710 | |
| FB | mm | 440 | ||
| Shank Hole | Dia. | mm | φ50 | |
| Dpth | mm | 80 | ||
| Main Motor Power | kW | 7.5 | ||
| Dimensions | FB | mm | 1750 | |
| LR | mm | 1310 | ||
| H | mm | 3150 | ||
| Net Weight | kg | 8500 | ||
