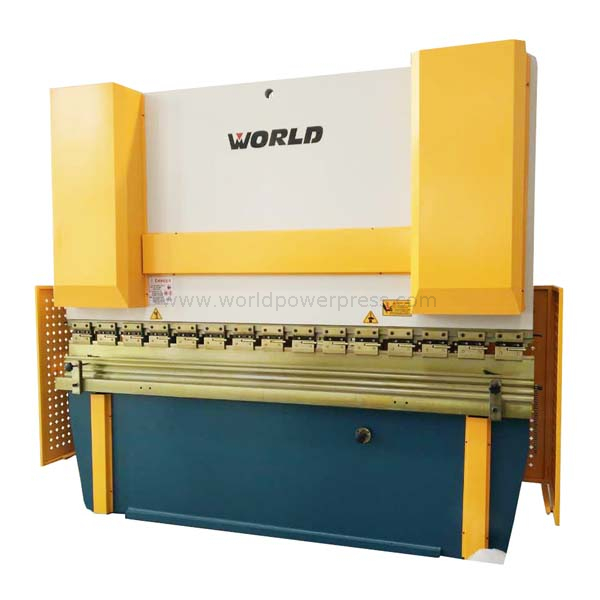

WC67Y
WORLD
-adopts Estun E21 NC control system, easy operation
-Punch and die are standard equiped.
-Light barrier is optional
-C type frame is steel welded with high rigidness
-Famous brand hydraulic system
| Items | unit | WC67Y-100/2500 | WC67Y-100/3200 | WC67Y-100/4000 |
| Nominal pressure | kN | 1000 | 1000 | 1000 |
| Length of table | mm | 2500 | 3200 | 4000 |
| Distance between uprights | mm | 1900 | 2400 | 3000 |
| Throat depth | mm | 300 | 320 | 320 |
| Ram stroke | mm | 160 | 150 | 120 |
| Daylight | mm | 380 | 380 | 380 |
| Approach speed | mm/s | 120 | 110 | 100 |
| Bend speed | mm/s | 10 | 10 | 9 |
| Return speed | mm/s | 100 | 100 | 90 |
| Main motor | kW | 7.5 | 7.5 | 7.5 |
| Length | mm | 2600 | 3300 | 4000 |
| Width | mm | 1600 | 1800 | 1800 |
| Height | mm | 2500 | 2500 | 2300 |
| Items | unit | WC67Y-125/2500 | WC67Y-125/3200 | WC67Y-125/4000 |
| Nominal pressure | kN | 1250 | 1250 | 1250 |
| Length of table | mm | 2500 | 3200 | 4000 |
| Distance between uprights | mm | 1900 | 2600 | 3000 |
| Throat depth | mm | 320 | 320 | 320 |
| Ram stroke | mm | 120 | 120 | 120 |
| Daylight | mm | 380 | 380 | 380 |
| Approach speed | mm/s | 120 | 110 | 100 |
| Bend speed | mm/s | 10 | 10 | 9 |
| Return speed | mm/s | 100 | 90 | 90 |
| Main motor | kW | 7.5 | 7.5 | 7.5 |
| Length | mm | 2700 | 3400 | 4100 |
| Width | mm | 1500 | 1500 | 1600 |
| Height | mm | 2500 | 2500 | 2500 |
| Items | unit | WC67Y-160/2500 | WC67Y-160/3200 | WC67Y-160/4000 |
| Nominal pressure | kN | 1600 | 1600 | 1600 |
| Length of table | mm | 2500 | 3200 | 4000 |
| Distance between uprights | mm | 2050 | 2400 | 3000 |
| Throat depth | mm | 320 | 320 | 320 |
| Ram stroke | mm | 200 | 160 | 160 |
| Daylight | mm | 450 | 450 | 450 |
| Approach speed | mm/s | 100 | 100 | 100 |
| Bend speed | mm/s | 10 | 10 | 10 |
| Return speed | mm/s | 90 | 90 | 90 |
| Main motor | kW | 11 | 11 | 11 |
| Length | mm | 2700 | 3300 | 4100 |
| Width | mm | 1700 | 1700 | 1700 |
| Height | mm | 2600 | 2700 | 2700 |
-adopts Estun E21 NC control system, easy operation
-Punch and die are standard equiped.
-Light barrier is optional
-C type frame is steel welded with high rigidness
-Famous brand hydraulic system
| Items | unit | WC67Y-100/2500 | WC67Y-100/3200 | WC67Y-100/4000 |
| Nominal pressure | kN | 1000 | 1000 | 1000 |
| Length of table | mm | 2500 | 3200 | 4000 |
| Distance between uprights | mm | 1900 | 2400 | 3000 |
| Throat depth | mm | 300 | 320 | 320 |
| Ram stroke | mm | 160 | 150 | 120 |
| Daylight | mm | 380 | 380 | 380 |
| Approach speed | mm/s | 120 | 110 | 100 |
| Bend speed | mm/s | 10 | 10 | 9 |
| Return speed | mm/s | 100 | 100 | 90 |
| Main motor | kW | 7.5 | 7.5 | 7.5 |
| Length | mm | 2600 | 3300 | 4000 |
| Width | mm | 1600 | 1800 | 1800 |
| Height | mm | 2500 | 2500 | 2300 |
| Items | unit | WC67Y-125/2500 | WC67Y-125/3200 | WC67Y-125/4000 |
| Nominal pressure | kN | 1250 | 1250 | 1250 |
| Length of table | mm | 2500 | 3200 | 4000 |
| Distance between uprights | mm | 1900 | 2600 | 3000 |
| Throat depth | mm | 320 | 320 | 320 |
| Ram stroke | mm | 120 | 120 | 120 |
| Daylight | mm | 380 | 380 | 380 |
| Approach speed | mm/s | 120 | 110 | 100 |
| Bend speed | mm/s | 10 | 10 | 9 |
| Return speed | mm/s | 100 | 90 | 90 |
| Main motor | kW | 7.5 | 7.5 | 7.5 |
| Length | mm | 2700 | 3400 | 4100 |
| Width | mm | 1500 | 1500 | 1600 |
| Height | mm | 2500 | 2500 | 2500 |
| Items | unit | WC67Y-160/2500 | WC67Y-160/3200 | WC67Y-160/4000 |
| Nominal pressure | kN | 1600 | 1600 | 1600 |
| Length of table | mm | 2500 | 3200 | 4000 |
| Distance between uprights | mm | 2050 | 2400 | 3000 |
| Throat depth | mm | 320 | 320 | 320 |
| Ram stroke | mm | 200 | 160 | 160 |
| Daylight | mm | 450 | 450 | 450 |
| Approach speed | mm/s | 100 | 100 | 100 |
| Bend speed | mm/s | 10 | 10 | 10 |
| Return speed | mm/s | 90 | 90 | 90 |
| Main motor | kW | 11 | 11 | 11 |
| Length | mm | 2700 | 3300 | 4100 |
| Width | mm | 1700 | 1700 | 1700 |
| Height | mm | 2600 | 2700 | 2700 |
