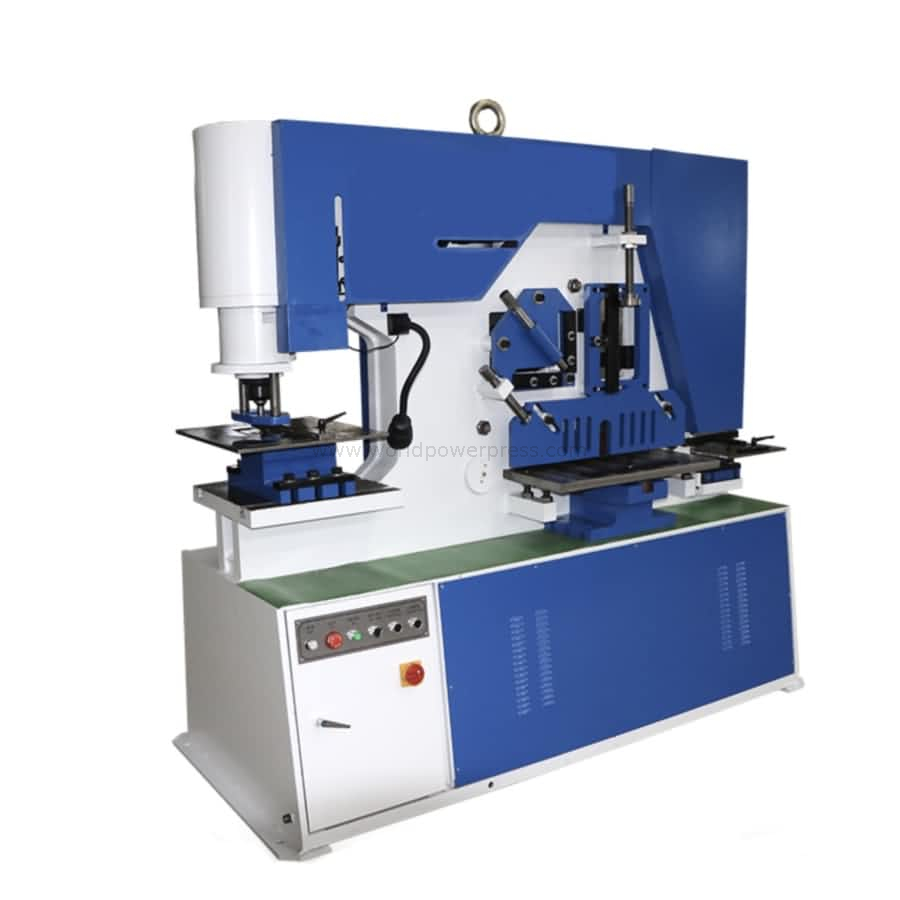

Q35Y-20
-Max. Plate cutting thickness x length: 20x330mm/10x380mm
-Max. Punching capacity: 90ton
-Max. Punching thickness: 20mm
-Max. Nothcing thickness: 10mm
| Model | Q35Y-20 |
| Punching pressure(Ton) | 90 |
| Max.shearing thickness of steel plates (mm) | 20 |
| Strength of steel plates (N/mm2) | ≤450 |
| Angle of shearing | 8° |
| Shearing sizes of one stroke(mm/W×H) | 20×330 |
| 10×480 | |
| Ram stroke (mm) | 80 |
| Number of stroke (times/minute) | 8~22 |
| Depth of throat (mm) | 355 |
| Punching thickness (mm) | 20 |
| Max.diameter of punching (mm) | 30 |
| Round steel (mm) | 50 |
| Square steel (mm) | 45×45 |
| 90° Shearing of equal-angle steel (mm) | 140×140×12 |
| 45° Shearing of equal-angle steel (mm) | 70×70×10 |
| H-beam (mm) | 100×100 |
| C-Channel (mm) | 160×60×6.5 |
| I-beam (mm) | 160×86×6 |
| Main motor power (kw) | 5.5 |
| Overall dimension (mm/L×W×H) | 1950×900 |
| ×1930 |
-Max. Plate cutting thickness x length: 20x330mm/10x380mm
-Max. Punching capacity: 90ton
-Max. Punching thickness: 20mm
-Max. Nothcing thickness: 10mm
| Model | Q35Y-20 |
| Punching pressure(Ton) | 90 |
| Max.shearing thickness of steel plates (mm) | 20 |
| Strength of steel plates (N/mm2) | ≤450 |
| Angle of shearing | 8° |
| Shearing sizes of one stroke(mm/W×H) | 20×330 |
| 10×480 | |
| Ram stroke (mm) | 80 |
| Number of stroke (times/minute) | 8~22 |
| Depth of throat (mm) | 355 |
| Punching thickness (mm) | 20 |
| Max.diameter of punching (mm) | 30 |
| Round steel (mm) | 50 |
| Square steel (mm) | 45×45 |
| 90° Shearing of equal-angle steel (mm) | 140×140×12 |
| 45° Shearing of equal-angle steel (mm) | 70×70×10 |
| H-beam (mm) | 100×100 |
| C-Channel (mm) | 160×60×6.5 |
| I-beam (mm) | 160×86×6 |
| Main motor power (kw) | 5.5 |
| Overall dimension (mm/L×W×H) | 1950×900 |
| ×1930 |
