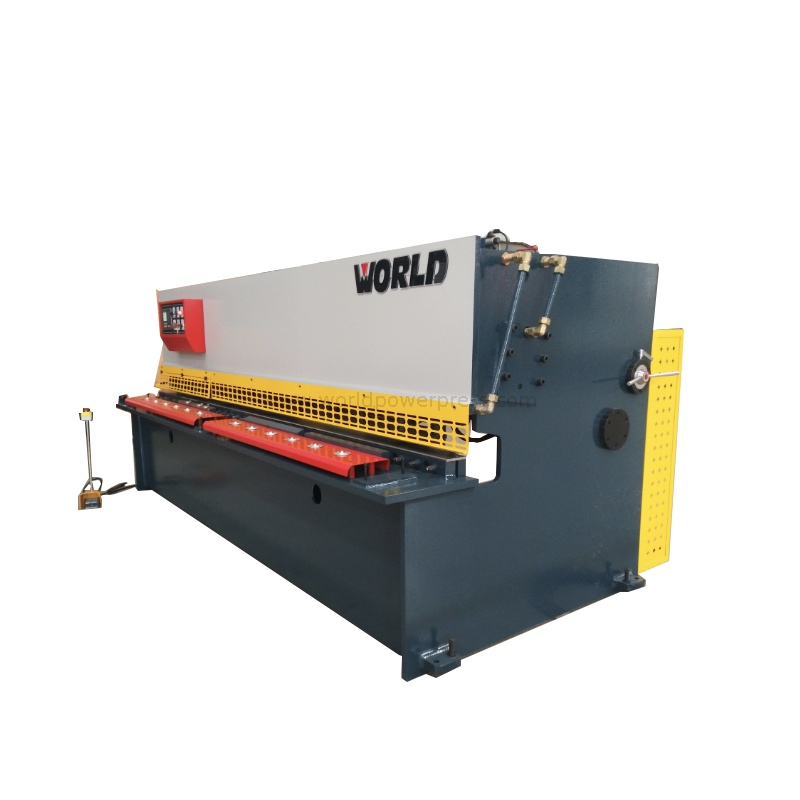

QC12Y-4x3200
-Blade length: 3300mm
-Cutting thickness: 4mm carbons steel/2mm stainless steel
-Control: NC system with LCD screen
NO. | ITEM | VALUE | UNIT | |
1 | Shearing thickness | 4 | mm | |
2 | Shearing width | 3200 | mm | |
3 | Plate tensile | σb≤450 | N/mm2 | |
4 | strokes | 6-12 | times/min | |
5 | Angle of shearing | 1.5° | ||
6 | Throat depth | 150 | mm | |
7 | Blade length | 3300 | mm | |
8 | Distance from table to ground | 800 | mm | |
9 | Range of back gauge | 20～600 | mm | |
10 | Maim motor | Model | Y132M-4B5 | |
Power | 5.5 | KW | ||
Rotate speed | 1440 | rpm | ||
11
| axial plunger pump | Model | KIP4-32 | |
Flow rate | 10 | L/min | ||
Pressure | 31.5 | Mpa | ||
12 | Overall dimension | Length | 4100 | mm |
Width | 1700 | mm | ||
Height | 1700 | mm | ||
13 | Weight | 4.5 | Ton | |
-Blade length: 3300mm
-Cutting thickness: 4mm carbons steel/2mm stainless steel
-Control: NC system with LCD screen
NO. | ITEM | VALUE | UNIT | |
1 | Shearing thickness | 4 | mm | |
2 | Shearing width | 3200 | mm | |
3 | Plate tensile | σb≤450 | N/mm2 | |
4 | strokes | 6-12 | times/min | |
5 | Angle of shearing | 1.5° | ||
6 | Throat depth | 150 | mm | |
7 | Blade length | 3300 | mm | |
8 | Distance from table to ground | 800 | mm | |
9 | Range of back gauge | 20～600 | mm | |
10 | Maim motor | Model | Y132M-4B5 | |
Power | 5.5 | KW | ||
Rotate speed | 1440 | rpm | ||
11
| axial plunger pump | Model | KIP4-32 | |
Flow rate | 10 | L/min | ||
Pressure | 31.5 | Mpa | ||
12 | Overall dimension | Length | 4100 | mm |
Width | 1700 | mm | ||
Height | 1700 | mm | ||
13 | Weight | 4.5 | Ton | |
