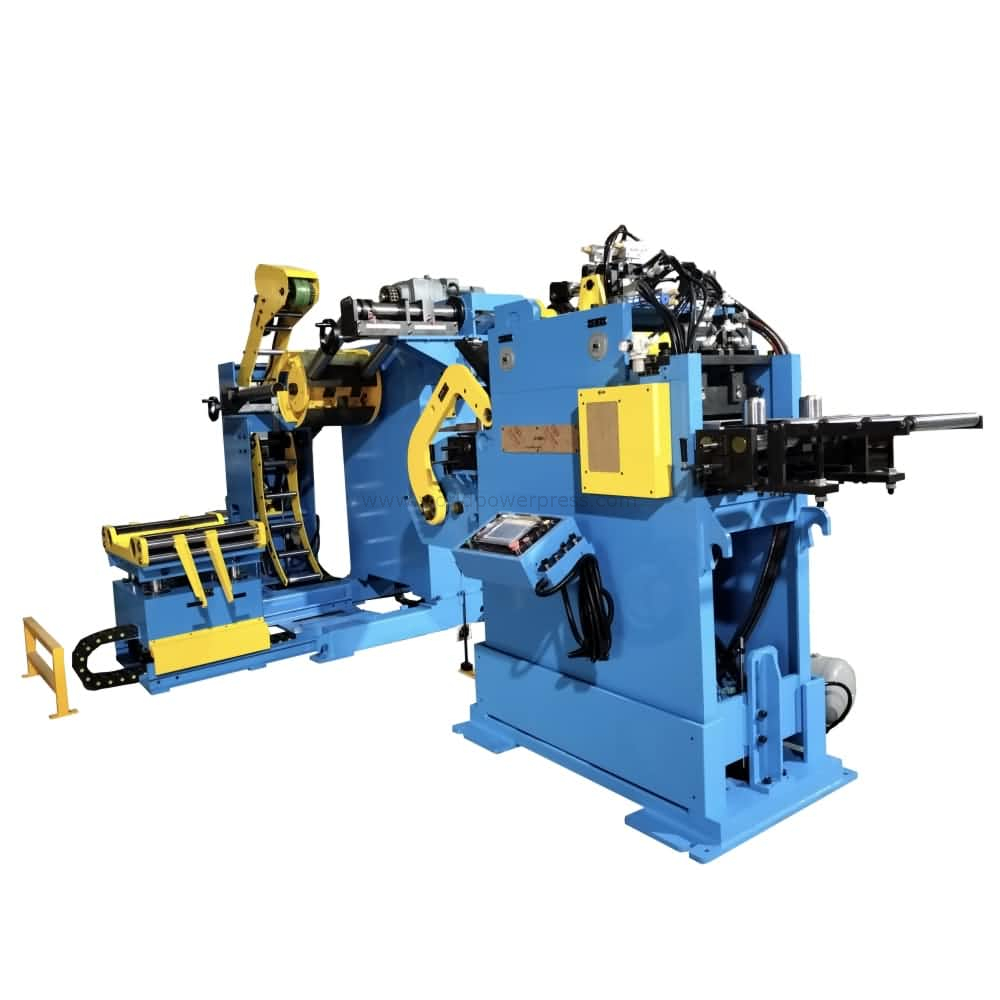

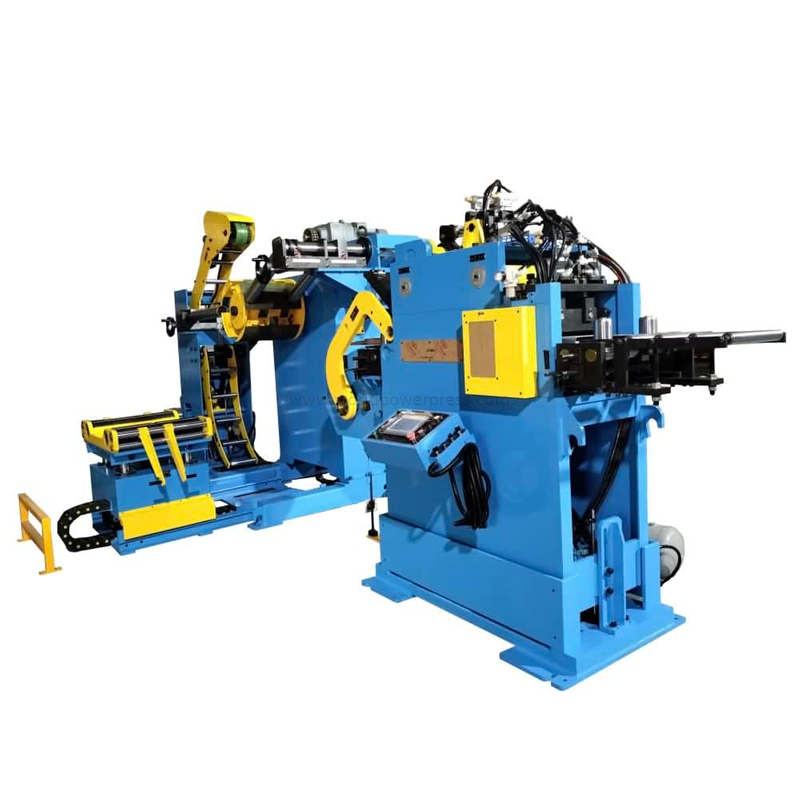

TNCF6
WORLD
-Compact structure, combined straightener feeder head.
-Decoiler with hydraulic coil loading trolley.
-Coil hold arm, pneumatic cylinder drive, and coil support arm, hydraulic drive.
-Rubber pinch roll motorized, with tracking and follow up function.
-Side limit wheel with arms to fix coil on the mandrel.
-Spindle hydraulic expansion.
-With bending arms for insert strip to straightener head easily.
-Straightener roller gap manual adjustment.
-Feeding line height motorized adjustment.
-PLC control, servo motor drive, LCD touch screen
-Feeding speed, feeding pitch, and feeding steps are programmable.
-Manual and automatic working modes, can match the stamping press properly.
Model | TNCF6-400 | TNCF6-600 |
Coil thickness (mm) | 0.6-6 | 0.6-6 |
Coil width (mm) | 70-400 | 70-600 |
Coil I.D (mm) | 470-530 | 470-530 |
Max. Coil O.D (mm) | 1400 | 1400 |
Max. Coil weight (kg) | 3000 | 5000 |
Coil loading trolley capacity (kg) | 3000 | 5000 |
Expansion type | hydraulic | hydraulic |
Spindle brake type | disc brake | disc brake |
Spindle uncoiling direction | down | down |
Uncoiler motor power (kw) | 2.2 | 3.75 |
Max. Feeding speed (m/min) | 22 | 22 |
Max. Feeding length (mm) | 9999.99 | 9999.99 |
Feeding precision (mm) | 0.15 | 0.15 |
Feeding direction | customized | customized |
Feeding line height (mm) | 1100+/-100 | 1100+/-100 |
Feeding line height adjust | motorized | motorized |
Servo motor power (kw) | 5 | 7 |
Numbers of straightening rollers (pcs) | 7 (Up4/Down3) | 7 (Up4/Down3) |
Straightening roller diameter (mm) | 84 | 84 |
Numbers of feeding rollers (pcs) | 2 | 2 |
Feeding roller diameter (mm) | 96 | 96 |
Straightener rollers gap adjust | manual | manual |
Power voltage | 380V50HZ3Phase | 380V50HZ3Phase |
Air pressure (Mpa) | 0.4-0.6 | 0.4-0.6 |
-Compact structure, combined straightener feeder head.
-Decoiler with hydraulic coil loading trolley.
-Coil hold arm, pneumatic cylinder drive, and coil support arm, hydraulic drive.
-Rubber pinch roll motorized, with tracking and follow up function.
-Side limit wheel with arms to fix coil on the mandrel.
-Spindle hydraulic expansion.
-With bending arms for insert strip to straightener head easily.
-Straightener roller gap manual adjustment.
-Feeding line height motorized adjustment.
-PLC control, servo motor drive, LCD touch screen
-Feeding speed, feeding pitch, and feeding steps are programmable.
-Manual and automatic working modes, can match the stamping press properly.
Model | TNCF6-400 | TNCF6-600 |
Coil thickness (mm) | 0.6-6 | 0.6-6 |
Coil width (mm) | 70-400 | 70-600 |
Coil I.D (mm) | 470-530 | 470-530 |
Max. Coil O.D (mm) | 1400 | 1400 |
Max. Coil weight (kg) | 3000 | 5000 |
Coil loading trolley capacity (kg) | 3000 | 5000 |
Expansion type | hydraulic | hydraulic |
Spindle brake type | disc brake | disc brake |
Spindle uncoiling direction | down | down |
Uncoiler motor power (kw) | 2.2 | 3.75 |
Max. Feeding speed (m/min) | 22 | 22 |
Max. Feeding length (mm) | 9999.99 | 9999.99 |
Feeding precision (mm) | 0.15 | 0.15 |
Feeding direction | customized | customized |
Feeding line height (mm) | 1100+/-100 | 1100+/-100 |
Feeding line height adjust | motorized | motorized |
Servo motor power (kw) | 5 | 7 |
Numbers of straightening rollers (pcs) | 7 (Up4/Down3) | 7 (Up4/Down3) |
Straightening roller diameter (mm) | 84 | 84 |
Numbers of feeding rollers (pcs) | 2 | 2 |
Feeding roller diameter (mm) | 96 | 96 |
Straightener rollers gap adjust | manual | manual |
Power voltage | 380V50HZ3Phase | 380V50HZ3Phase |
Air pressure (Mpa) | 0.4-0.6 | 0.4-0.6 |
