TNCF4/5
WORLD

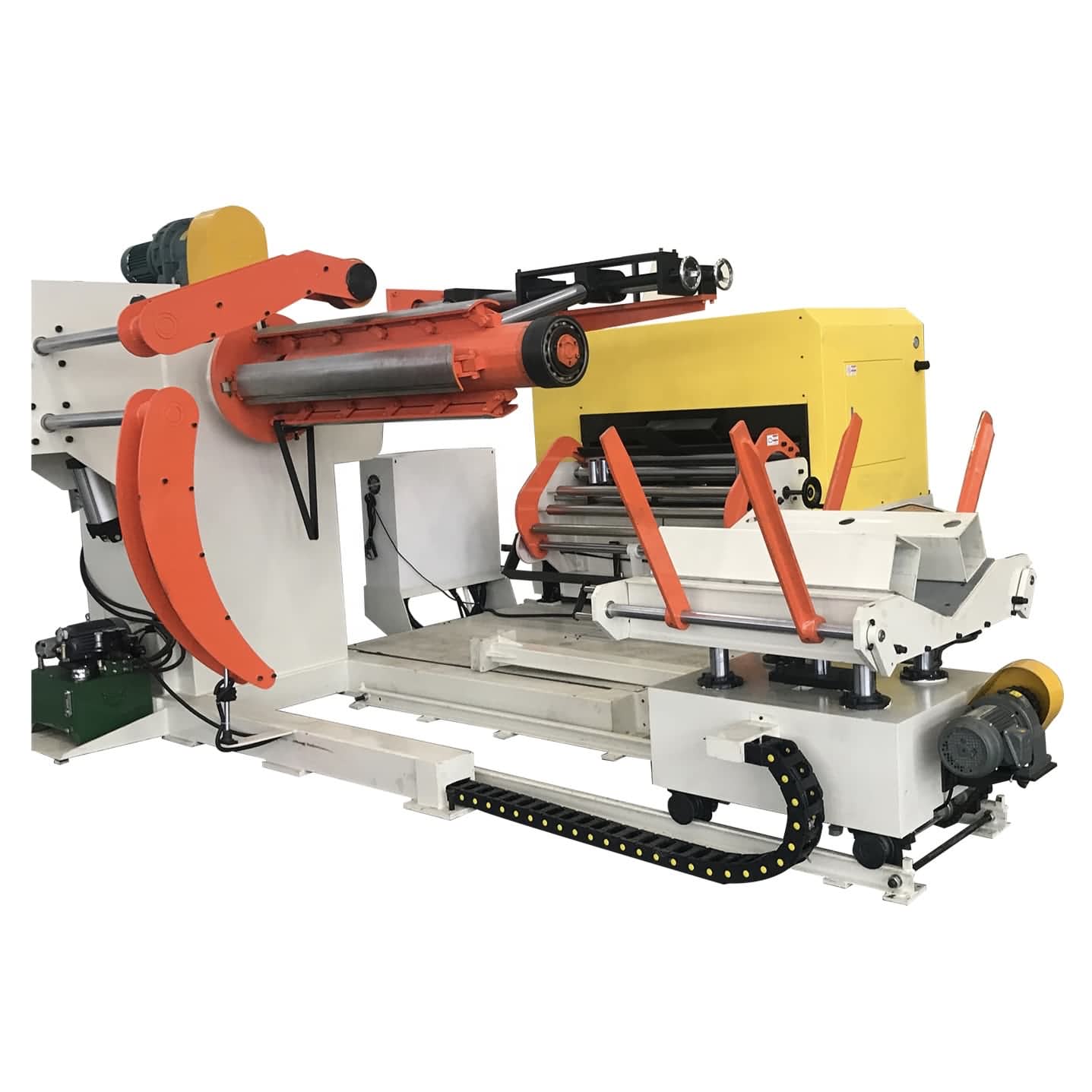

3 in 1 type feeder is suitable for automatic press line. The feeder can work manually and automatically. Feeding speed is programable through the touch screen. Or the speed could be adjusted automatically according to press stroke speeds. Famous brand PLC central control, high quality low voltage electric parts. The feeder adopts with Yaskawa brand servo motor and high quality reducer. Hydraulic coil loading trolley is optional.
| Item/Model | TNCF4-300 | TNCF4-400 | TNCF4-500 | TNCF4-600 | TNCF4-700 | TNCF4-800 | TNCF4-1000 | TNCF4-1300 |
| Width of Material(mm) | 75-300 | 75-400 | 75-500 | 75-600 | 75-700 | 75-800 | 75-1000 | 75-1300 |
| Thickness of Material(mm) | 0.5-4.5 | |||||||
| Max.coil Weight(kg) | 2T | 3T | 5T | 8T | ||||
| Coil L.D.(mm) | 508 | |||||||
| Max.Coil O.D.(mm) | 1500 | |||||||
| Max.Speed(m/min) | 16 | |||||||
| Feed Pitch Accuracy(mm) | ±0.15 | |||||||
| Feed ROLL | Upper1 / Lower1 | |||||||
| Straighten ROLL | Upper4 / Lower3 | |||||||
| Voltage | 380VAc / 60Hz | |||||||
| Air power supply | 5kg / CM² | |||||||
| Uncoiler Expansion | Hydraulic | |||||||
| Servo Motor(kw) | AC2.9 | AC4.4 | AC5.5 | |||||
| Uncoiler Motor(kw) | 1.5 KW | 2.2 KW | 3 KW | |||||
| Coil Car | 1 optional | standard | ||||||
| Pass line | ±100 MM | |||||||
| Item/Model | TNCF5-400 | TNCF5-500 | TNCF5-600 | TNCF5-700 | TNCF5-800 | TNCF5-1000 | TNCF5-1300 | TNCF5-1500 |
| Width of Material(mm) | 75-400 | 75-500 | 75-600 | 75-700 | 75-800 | 75-1000 | 75-1300 | 75-1500 |
| Thickness of Material(mm) | 0.6-6 | |||||||
| Max.coil Weight(kg) | 3T | 5T | 8T | |||||
| weight can be customized | can be customized | customizable | ||||||
| Coil L.D.(mm) | 508 | |||||||
| Max.Coil O.D.(mm) | 1500 | |||||||
| Max.Speed(m/min) | 16 | |||||||
| Feed Pitch Accuracy(mm) | ±0.15 | |||||||
| Feed ROLL | Upper1 / Lower1 | |||||||
| Straighten ROLL | Upper4 / Lower3 | |||||||
| Voltage | 380VAc / 60Hz | |||||||
| Air power supply | 5kg / CM² | |||||||
| Uncoiler Expansion | Hydraulic | |||||||
| Servo Motor(kw) | AC2.9 | AC4.4 | AC5.5 | AC7.5 | ||||
| with servo reducer | with servo reducer | with servo reducer | with servo reducer | |||||
| Uncoiler Motor(kw) | 1.5 KW | 2.2 KW | 3 KW | |||||
| Coil Car | optional | standard | ||||||
3 in 1 type feeder is suitable for automatic press line. The feeder can work manually and automatically. Feeding speed is programable through the touch screen. Or the speed could be adjusted automatically according to press stroke speeds. Famous brand PLC central control, high quality low voltage electric parts. The feeder adopts with Yaskawa brand servo motor and high quality reducer. Hydraulic coil loading trolley is optional.
| Item/Model | TNCF4-300 | TNCF4-400 | TNCF4-500 | TNCF4-600 | TNCF4-700 | TNCF4-800 | TNCF4-1000 | TNCF4-1300 |
| Width of Material(mm) | 75-300 | 75-400 | 75-500 | 75-600 | 75-700 | 75-800 | 75-1000 | 75-1300 |
| Thickness of Material(mm) | 0.5-4.5 | |||||||
| Max.coil Weight(kg) | 2T | 3T | 5T | 8T | ||||
| Coil L.D.(mm) | 508 | |||||||
| Max.Coil O.D.(mm) | 1500 | |||||||
| Max.Speed(m/min) | 16 | |||||||
| Feed Pitch Accuracy(mm) | ±0.15 | |||||||
| Feed ROLL | Upper1 / Lower1 | |||||||
| Straighten ROLL | Upper4 / Lower3 | |||||||
| Voltage | 380VAc / 60Hz | |||||||
| Air power supply | 5kg / CM² | |||||||
| Uncoiler Expansion | Hydraulic | |||||||
| Servo Motor(kw) | AC2.9 | AC4.4 | AC5.5 | |||||
| Uncoiler Motor(kw) | 1.5 KW | 2.2 KW | 3 KW | |||||
| Coil Car | 1 optional | standard | ||||||
| Pass line | ±100 MM | |||||||
| Item/Model | TNCF5-400 | TNCF5-500 | TNCF5-600 | TNCF5-700 | TNCF5-800 | TNCF5-1000 | TNCF5-1300 | TNCF5-1500 |
| Width of Material(mm) | 75-400 | 75-500 | 75-600 | 75-700 | 75-800 | 75-1000 | 75-1300 | 75-1500 |
| Thickness of Material(mm) | 0.6-6 | |||||||
| Max.coil Weight(kg) | 3T | 5T | 8T | |||||
| weight can be customized | can be customized | customizable | ||||||
| Coil L.D.(mm) | 508 | |||||||
| Max.Coil O.D.(mm) | 1500 | |||||||
| Max.Speed(m/min) | 16 | |||||||
| Feed Pitch Accuracy(mm) | ±0.15 | |||||||
| Feed ROLL | Upper1 / Lower1 | |||||||
| Straighten ROLL | Upper4 / Lower3 | |||||||
| Voltage | 380VAc / 60Hz | |||||||
| Air power supply | 5kg / CM² | |||||||
| Uncoiler Expansion | Hydraulic | |||||||
| Servo Motor(kw) | AC2.9 | AC4.4 | AC5.5 | AC7.5 | ||||
| with servo reducer | with servo reducer | with servo reducer | with servo reducer | |||||
| Uncoiler Motor(kw) | 1.5 KW | 2.2 KW | 3 KW | |||||
| Coil Car | optional | standard | ||||||
