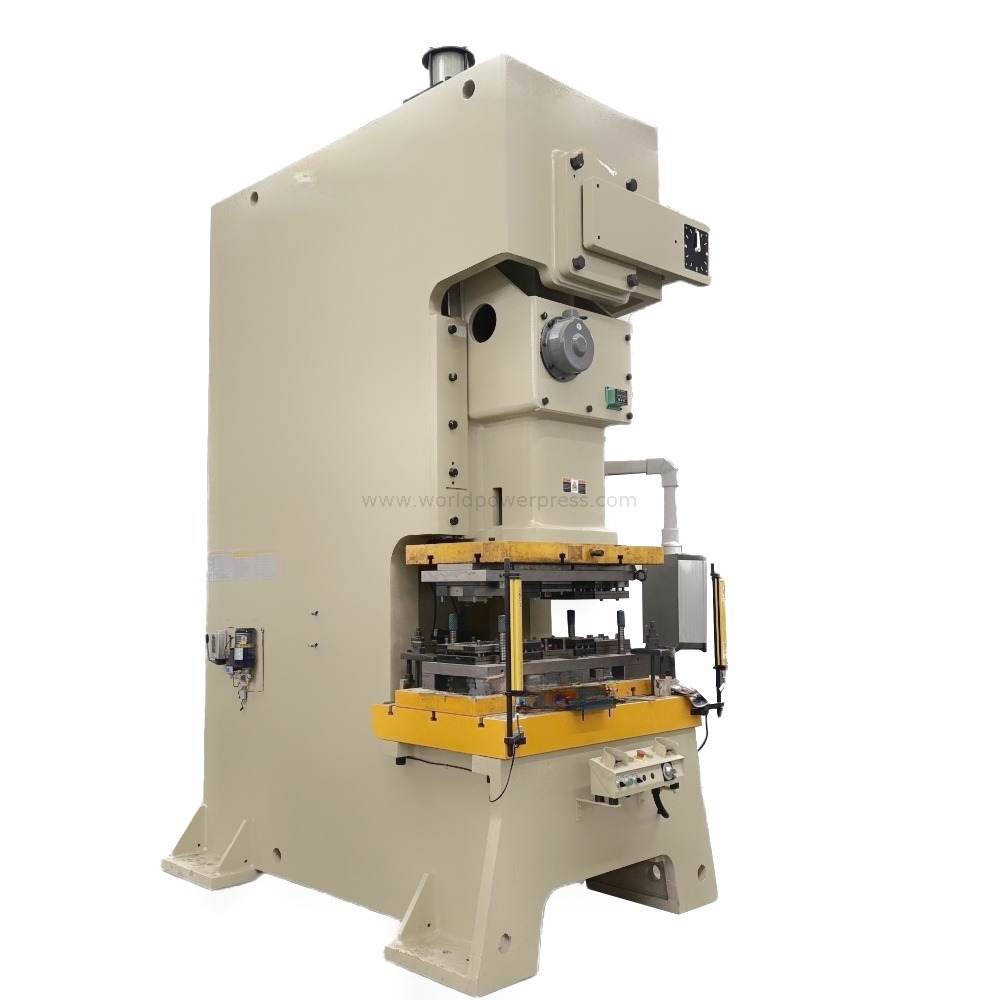

200ton Gap Frame Single Crank Servo Press

Main Features:

1. C-frame single-piece steel plate welded body, high rigidity

2. Servo motor direct drive the shaft, without clutch or brake

3. Air cooling system for the servo motor

4. Hydraulic overload protection

5. Six-sided lengthened slide guide rails with high precision

6. Programmable stroke curves


Core Advantages:

1. Precision & Flexibility‌: Equipped with advanced sensors and closed-loop control, it achieves position accuracy up to ±0.01mm and pressure control within ±1%. It supports customizable multi-stage motion profiles to meet complex forming, riveting, or assembly needs.

2. Energy Efficiency‌: Unlike traditional hydraulic presses, the servo motor only consumes power during operation, reducing energy use by 30-70%. It also generates less heat and noise (often below 75dB), improving workplace conditions.

3. Rigidity & Stability‌: The one-piece welded C-frame undergoes stress-relief treatment, ensuring high structural rigidity and resistance to off-center loads. This maintains consistent precision even under heavy-tonnage operations, extending mold lifespan.

4. Smart & Connected‌: Modern models feature PLC control systems with touchscreen interfaces, allowing parameter programming, real-time data monitoring, and quality traceability. Many integrate with IoT platforms for remote diagnostics and predictive maintenance.

Key Applications:

Widely used in automotive, electronics, aerospace, and general manufacturing for tasks like bearing press-fitting, metal stamping, component assembly, and powder forming. Its compact design and operational flexibility make it ideal for both small-batch production and high-volume automated lines.

Standard equipment:

1. PLC


2. Servo Motor (Beijing CTB) and servo drive

3. Planet Reducer

4. Bearing: NSK or similar

5. Overload pump

6. Solenoid valve

Specifications of 200t servo press machine
