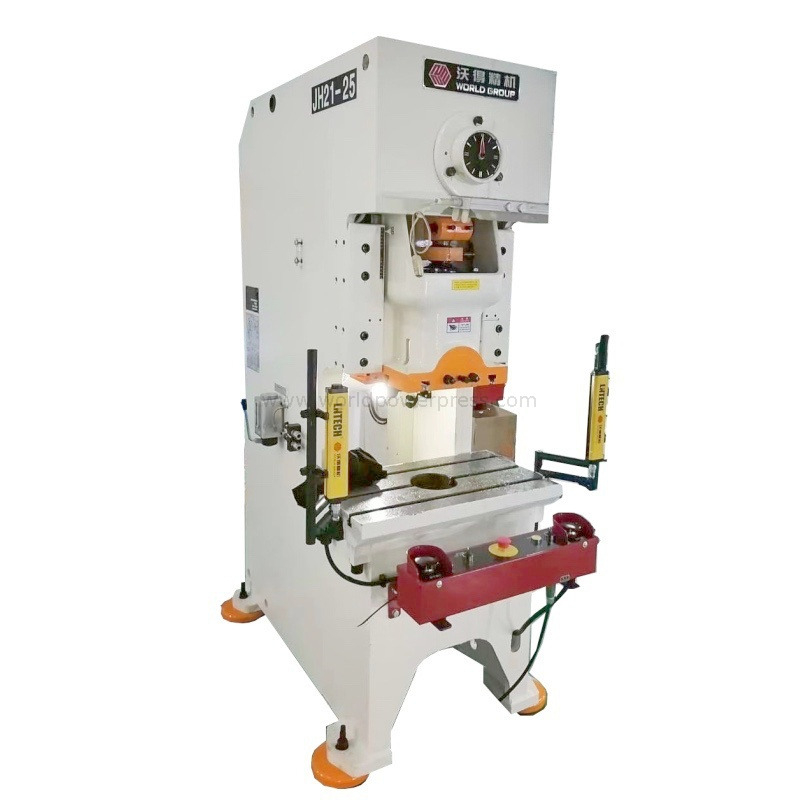

25 Ton Gap Frame Single Crank Press Machine

JH21-25 is a 25 ton small size gap frame press machine. It can work as inches, single stroke and continuous strokes. It has a wet type pneumatic clutch with safety solenoid valve. This press machine is hydraulic overload protected and automatic grease lubrication.

Availability:

Quantity:



Inquire Add to Basket

Model:
JH21-25
Brand:
WORLD

Product Description

25 ton gap frame single crank press machine

- c frame steel plate welded body

- wet type oil bath clutch and brake

- PLC control

- two stroke lengths with different speeds are optional

25 ton gap frame press machine specifications

ITEM		CODE	UNIT	JH21-25
Nominal Capacity		Pe	KN	250
Slide Stroke Length		S	mm	80
Slide Strokes	Fixed		spm	100
Slide Strokes	Variable (optional)		spm	60-120
Max. Shut Height		H2	mm	250
Shut Height Adjustment		t	mm	50
Throat Depth		C1	mm	210
Distance Between Columns		d1	mm	470
Slide Bottom Size	F-B	b	mm	250
Slide Bottom Size	L-R	a	mm	360
Shank Hole Size	Diameter	d	mm	40
Shank Hole Size	Depth	I	mm	50
Table Size	F-B	D	mm	400
	L-R	C	mm	720
	Thickness	H3	mm	80
Table Hole Diameter		¢	mm	150
Overall Dimensions	F-B	A	mm	1500
	L-R	B	mm	945
	Height	H	mm	2090
Motor Power			KW	3
Weight (approximate)			kg	2450
