JH21-160
WORLD

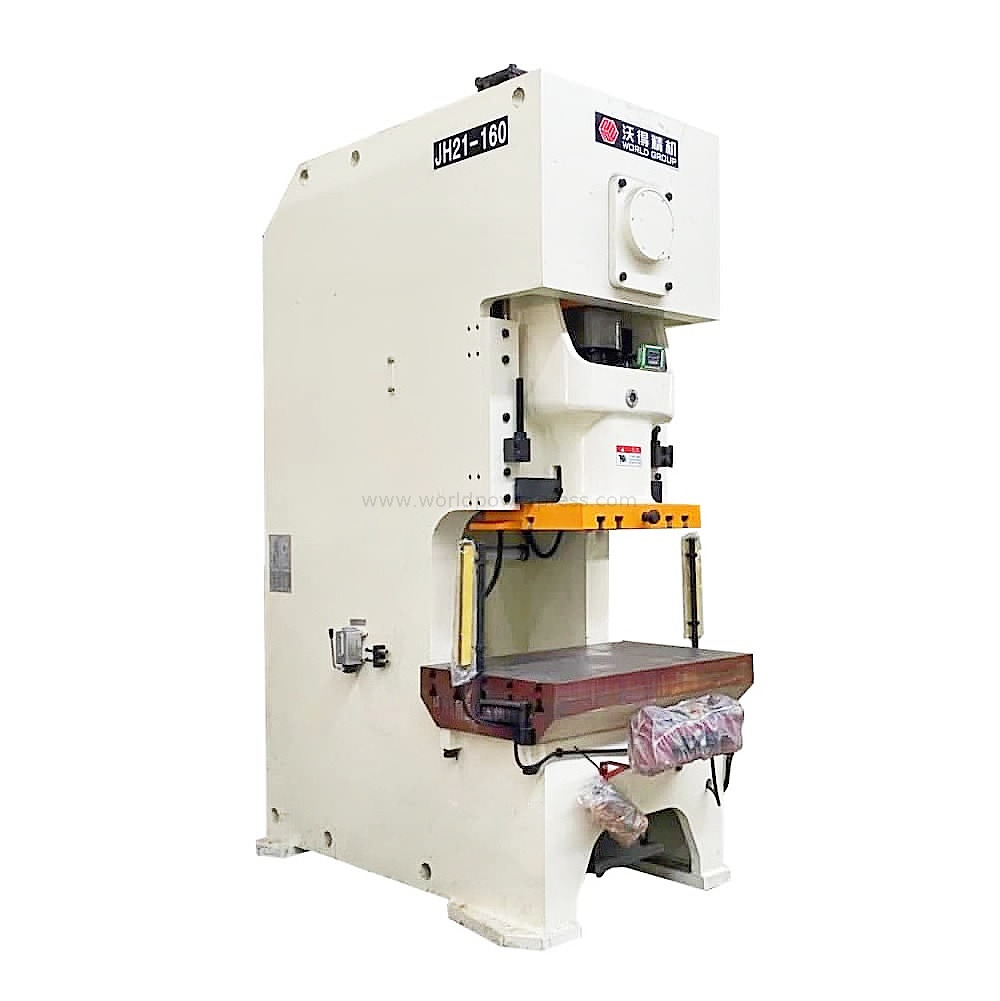

JH21-160 c frame press for conjunction box stamping. The press can work with progressive die and coil feeding machine. 160ton nominal tonnage is enough for most conjunction box punching. Hydraulic overload protection system is easy for reset and safe for progressive dies. Two-hand-button control and foot pedal control are both available. Foot pedal is only for single stroke or continuous strokes running. Operator can set the lubricant, cam angles and counters through the touch screen. Press machine malfunction will be monitored on the screen if any.
-Panasonic brand PLC and Kinco HMI
-Pneumatic clutch and brake, WORLD patent design
-Hydraulic overload protection system
-Slide adjust flat motor
-Automatic central control grease lubricant system
-Both two-hand-button control and foot pedal control
-Anti-vibraton mounting pads
-frequency inverter for adjustable stroke speeds
-safety light barriers
-piston type pneumatic cushion under the bolster
-metal strip uncoiling machine and feeding machine
-die safety block
-die quick change device
| ITEM | CODE | UNIT | JH21-160 | |
| Nominal Capacity | Pe | KN | 1600 | |
| Tonnage Point | mm | 6 | ||
| Slide Stroke Length | S | mm | 200 | |
| Slide Strokes | Fixed | spm | 45 | |
| Variable (optional) | spm | 30-45 | ||
| Max. Shut Height | H2 | mm | 400 | |
| Shut Height Adjustment | t | mm | 100 | |
| Throat Depth | C1 | mm | 400 | |
| Distance Between Columns | d1 | mm | 676 | |
| Slide Bottom Size | F-B | b | mm | 580 |
| L-R | a | mm | 700 | |
| Shank Hole Size | Diameter | d | mm | 70 |
| Depth | I | mm | 100 | |
| Table Size | F-B | D | mm | 760 |
| L-R | C | mm | 1175 | |
| Thickness | H3 | mm | 165 | |
| Table Hole Diameter | ¢ | mm | 220 | |
| Overall Dimensions | F-B | A | mm | 2305 |
| L-R | B | mm | 1420 | |
| Height | H | mm | 3215 | |
| Motor Power | KW | 15 | ||
| Weight (approximate) | kg | 13600 | ||
JH21-160 c frame press for conjunction box stamping. The press can work with progressive die and coil feeding machine. 160ton nominal tonnage is enough for most conjunction box punching. Hydraulic overload protection system is easy for reset and safe for progressive dies. Two-hand-button control and foot pedal control are both available. Foot pedal is only for single stroke or continuous strokes running. Operator can set the lubricant, cam angles and counters through the touch screen. Press machine malfunction will be monitored on the screen if any.
-Panasonic brand PLC and Kinco HMI
-Pneumatic clutch and brake, WORLD patent design
-Hydraulic overload protection system
-Slide adjust flat motor
-Automatic central control grease lubricant system
-Both two-hand-button control and foot pedal control
-Anti-vibraton mounting pads
-frequency inverter for adjustable stroke speeds
-safety light barriers
-piston type pneumatic cushion under the bolster
-metal strip uncoiling machine and feeding machine
-die safety block
-die quick change device
| ITEM | CODE | UNIT | JH21-160 | |
| Nominal Capacity | Pe | KN | 1600 | |
| Tonnage Point | mm | 6 | ||
| Slide Stroke Length | S | mm | 200 | |
| Slide Strokes | Fixed | spm | 45 | |
| Variable (optional) | spm | 30-45 | ||
| Max. Shut Height | H2 | mm | 400 | |
| Shut Height Adjustment | t | mm | 100 | |
| Throat Depth | C1 | mm | 400 | |
| Distance Between Columns | d1 | mm | 676 | |
| Slide Bottom Size | F-B | b | mm | 580 |
| L-R | a | mm | 700 | |
| Shank Hole Size | Diameter | d | mm | 70 |
| Depth | I | mm | 100 | |
| Table Size | F-B | D | mm | 760 |
| L-R | C | mm | 1175 | |
| Thickness | H3 | mm | 165 | |
| Table Hole Diameter | ¢ | mm | 220 | |
| Overall Dimensions | F-B | A | mm | 2305 |
| L-R | B | mm | 1420 | |
| Height | H | mm | 3215 | |
| Motor Power | KW | 15 | ||
| Weight (approximate) | kg | 13600 | ||
