300mm Width Coil Automatic Feeding Machine for Maximum Thickness 3.5mm

Description of feeder:

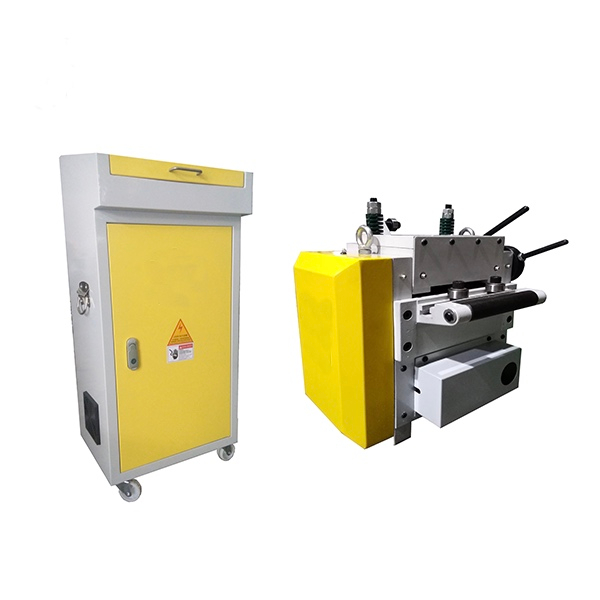

NCF-300 is an automatic coil feeding machine for coil width 300mm and maximum coil thickness 3.5mm. This coil feeding machine is servo NC control roller type feeder. Two pieces strong feeding rollers are both chrome coated for hardness HRC60. Operator can set the feeding speed and feeding pitch through the HMI.

Parameters:

Model No.: NCF-300

Max. Feeding width: 300mm

Max. Feeding thickness: 3.5mm

Max. Feeding length: 9999.99mm

Max. Feeding speed: 20m/min

PLC: Mitsubishi

Servo motor: Yaskawa

Options:

Custom power voltage (220V/440V/415V)

Support bracket, height 200mm adjustable

Oil lubricate roller

Shipment information:

Package in plywood box

HS Code: 84283920
