NCF-200 (B)

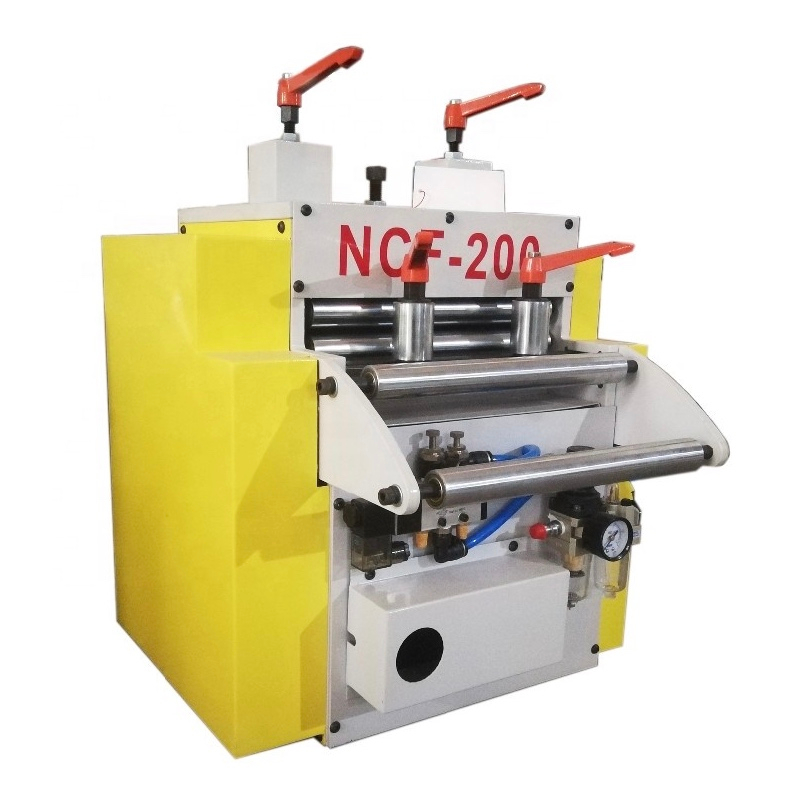

NCF-200 (B) is a servo NC feeder for coil strip maximum 3.5mm thickness and width maximum 200mm. The strip feeder adopts 1.3kw Yaskawa servo motor and Mitsubishi PLC. Maximum feeding speed is 20m per minute. Sheet release type is pneumatic type as standard and mechanical release is optional. This roll feeder can work with pneumatic press or mechanical press for high efficiency stamping.
Model number: NCF-200(B)
Material width: 200mm
Material thickness: 0.2-3.5mm
Max. Feeding length: 9999.99mm
Servo motor: Yaskawa, 1.3kw
PLC: Mitsubishi
Max. Feeding speed: 20m/min
NCF-200 (B) is a servo NC feeder for coil strip maximum 3.5mm thickness and width maximum 200mm. The strip feeder adopts 1.3kw Yaskawa servo motor and Mitsubishi PLC. Maximum feeding speed is 20m per minute. Sheet release type is pneumatic type as standard and mechanical release is optional. This roll feeder can work with pneumatic press or mechanical press for high efficiency stamping.
Model number: NCF-200(B)
Material width: 200mm
Material thickness: 0.2-3.5mm
Max. Feeding length: 9999.99mm
Servo motor: Yaskawa, 1.3kw
PLC: Mitsubishi
Max. Feeding speed: 20m/min
