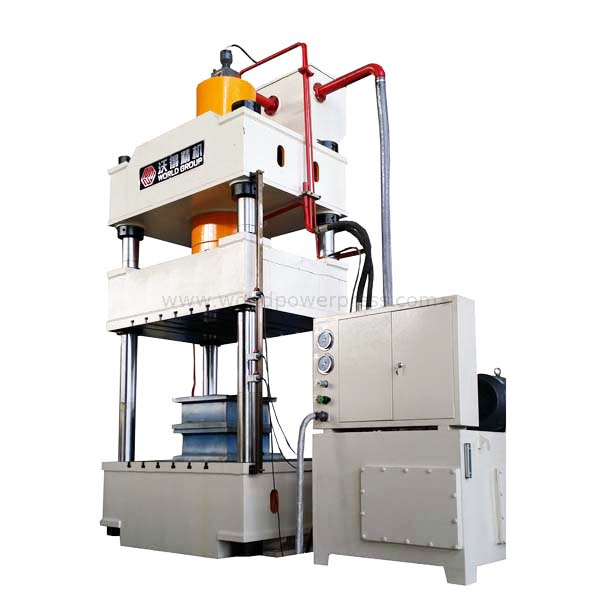

Y32-400
-three beams four columns structure
-PLC control with HMI
-capacity: 4000kN
-stroke length: customizable
-table size: customizable
-hydraulic cushion or ejector: optional
No. | Parameter | Unit | Y32-400 | |
1 | Nominal Force | kN | 4000 | |
2 | Return Pressure | kN | 840 | |
3 | Max. Hydraulic pressure | MPa | 25 | |
4 | Stroke of slide | mm | 1000 | |
5 | Max. Daylight | mm | 1300 | |
6 | Speed of slide | Idle down | mm/s | 100 |
Working | mm/s | 10 | ||
Return | mm/s | 80 | ||
7 | Table/Slide size | L-R | mm | 1500 |
F-B | mm | 1500 | ||
8 | Motor Power | kW | 22 | |
-three beams four columns structure
-PLC control with HMI
-capacity: 4000kN
-stroke length: customizable
-table size: customizable
-hydraulic cushion or ejector: optional
No. | Parameter | Unit | Y32-400 | |
1 | Nominal Force | kN | 4000 | |
2 | Return Pressure | kN | 840 | |
3 | Max. Hydraulic pressure | MPa | 25 | |
4 | Stroke of slide | mm | 1000 | |
5 | Max. Daylight | mm | 1300 | |
6 | Speed of slide | Idle down | mm/s | 100 |
Working | mm/s | 10 | ||
Return | mm/s | 80 | ||
7 | Table/Slide size | L-R | mm | 1500 |
F-B | mm | 1500 | ||
8 | Motor Power | kW | 22 | |
