JW36-400
WORLD

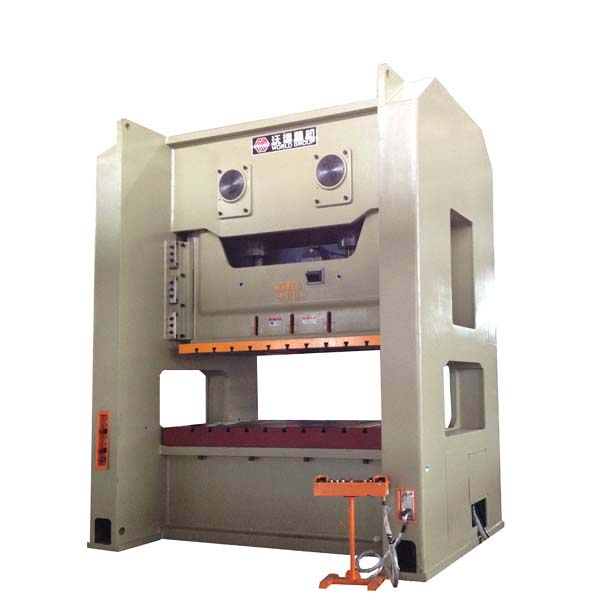

JW36-400 is a 400ton two points press with mono block type body. This press has bigger size working bolster, which is suitable for progressive die stamping. Meanwhile, big table is good for multi-stations tools. There are two crankshafts cross located with big gears on the back. And the slider is moving along the guides in the frame middle. This design ensures the press high strength, high accuracy, more balance as well. Furthermore, the press can work with automatic accessories, such as coil feeder and transfer bars.
Press model number: JW36-400
Capacity of press: 400ton (4000kN)
Bolster size: 2700x1100mm (3000x1100mm optional)
Slider size: 2400x1000mm (2700x1000mm optional)
Die Shut height: 600mm
Slider adjustment: 130mm
Stroke length: 300mm
Stroke speed: 15-25spm
Main motor power: 45kw
JW36-400 is a 400ton two points press with mono block type body. This press has bigger size working bolster, which is suitable for progressive die stamping. Meanwhile, big table is good for multi-stations tools. There are two crankshafts cross located with big gears on the back. And the slider is moving along the guides in the frame middle. This design ensures the press high strength, high accuracy, more balance as well. Furthermore, the press can work with automatic accessories, such as coil feeder and transfer bars.
Press model number: JW36-400
Capacity of press: 400ton (4000kN)
Bolster size: 2700x1100mm (3000x1100mm optional)
Slider size: 2400x1000mm (2700x1000mm optional)
Die Shut height: 600mm
Slider adjustment: 130mm
Stroke length: 300mm
Stroke speed: 15-25spm
Main motor power: 45kw
