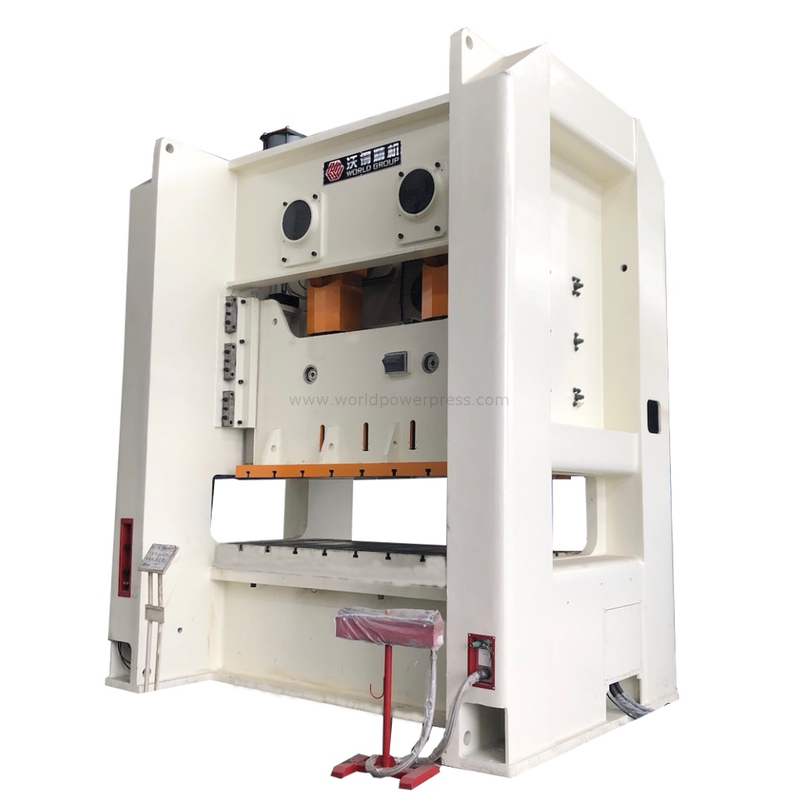

JW36-250
WORLD
-h type mono-block frame, steel welded
-double crank cross located
-wet type pneumatic clutch and brake
-big size bolster suitable for progressive die stamping
-specifications customized
| ITEM | CODE | UNIT | JW36-250 | |
| Nominal Capacity | KN | 2500 | ||
| Slide Stroke Length | S | mm | 280 | |
| Slide Stroke Speed | Fixed | spm | 30 | |
| Variable (optional) | spm | 20-35 | ||
| Max. Die Shut Height | H2 | mm | 550 | |
| Die Shut Height Adjustment | t | mm | 120 | |
| Side Window Size | F-B | E | mm | 950 |
| Height | F | mm | 460 | |
| Distance Between Uprights | G | mm | 2570 | |
| Table Size | F-B | D | mm | 1000 |
| L-R | C | mm | 2500 | |
| Thickness | H3 | mm | 180 | |
| Slide Bottom Size | F-B | b | mm | 900 |
| L-R | a | mm | 2200 | |
| Table Surface Height | H1 | mm | 1235 | |
| Overall Dimensions | F-B | A | mm | 2650 |
| L-R | B | mm | 3600 | |
| Height | H | mm | 4800 | |
| Motor Power | KW | 30 | ||
| Weight (approximate) | kg | 39000 | ||
-h type mono-block frame, steel welded
-double crank cross located
-wet type pneumatic clutch and brake
-big size bolster suitable for progressive die stamping
-specifications customized
| ITEM | CODE | UNIT | JW36-250 | |
| Nominal Capacity | KN | 2500 | ||
| Slide Stroke Length | S | mm | 280 | |
| Slide Stroke Speed | Fixed | spm | 30 | |
| Variable (optional) | spm | 20-35 | ||
| Max. Die Shut Height | H2 | mm | 550 | |
| Die Shut Height Adjustment | t | mm | 120 | |
| Side Window Size | F-B | E | mm | 950 |
| Height | F | mm | 460 | |
| Distance Between Uprights | G | mm | 2570 | |
| Table Size | F-B | D | mm | 1000 |
| L-R | C | mm | 2500 | |
| Thickness | H3 | mm | 180 | |
| Slide Bottom Size | F-B | b | mm | 900 |
| L-R | a | mm | 2200 | |
| Table Surface Height | H1 | mm | 1235 | |
| Overall Dimensions | F-B | A | mm | 2650 |
| L-R | B | mm | 3600 | |
| Height | H | mm | 4800 | |
| Motor Power | KW | 30 | ||
| Weight (approximate) | kg | 39000 | ||
