JW36-315
WORLD

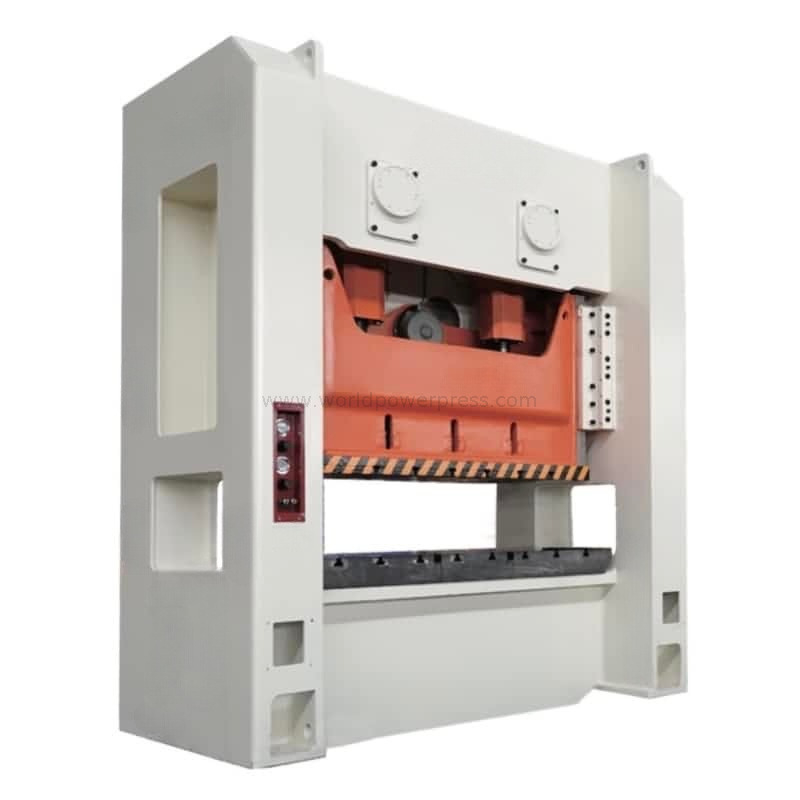

This mono block type h frame double crank press has capacity 3150kN. The table size is 2500x1000mm. And 2800x1000mm table is optional. It adopts wet type clutch and PLC control. It also adopts a hydraulic overload protection system. The center lubrication system is drive by an electric grease pump. The press can work with coil roller feeder. It can also work with manipulators, such as transfer bar or robot. And the working modes include inches stroke, single and continuous strokes.
Model: JW36-315
Tonnage: 315ton
Stroke length: 280mm
Stroke speed: 30spm as standard, 20-35spm as optional
Shut height: 430-550mm
Standard table size: 2500x1000mm
Ram plate size: 2200x900mm
Motor power: 37kw
Machine weight: 41.5ton
Optional accessories: light curtain, motor frequency drive, die cushion, hydraulic die clamp
This mono block type h frame double crank press has capacity 3150kN. The table size is 2500x1000mm. And 2800x1000mm table is optional. It adopts wet type clutch and PLC control. It also adopts a hydraulic overload protection system. The center lubrication system is drive by an electric grease pump. The press can work with coil roller feeder. It can also work with manipulators, such as transfer bar or robot. And the working modes include inches stroke, single and continuous strokes.
Model: JW36-315
Tonnage: 315ton
Stroke length: 280mm
Stroke speed: 30spm as standard, 20-35spm as optional
Shut height: 430-550mm
Standard table size: 2500x1000mm
Ram plate size: 2200x900mm
Motor power: 37kw
Machine weight: 41.5ton
Optional accessories: light curtain, motor frequency drive, die cushion, hydraulic die clamp
